| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Thieman 31145-001 - Platform 9042 | 31145-001-THIE | $1,677.10 | ||
| 1 | | Thieman 31145-002 - Platform 9036 | 31145-002-THIE | $1,677.10 | ||
| 1 | | Thieman 31145-003 - Platform 9636 | 31145-003-THIE | $1,822.86 | ||
| 1 | | Thieman 31145-004 - Platform 9642 | 31145-004-THIE | $1,822.86 | ||
| 2 | | Thieman 31136 - Right Hand Cam Follower | 31136-THIE | $182.43 | ||
| 3 | | Thieman 31144 - Left Hand Cam Follower | 31144-THIE | $182.43 | ||
| 4 | | Thieman 5103 - Spring | 5103-THIE | $32.11 | ||
| 5 | | Thieman 8107-010 - 1 Inch Flat Washer (2 Inch OD) | 8107-010-THIE | $1.50 | ||
| 6 | | Thieman 3110100 - Spring Pin Assembly | 3110100-THIE | $3.16 | ||
| 7 | | Thieman 31139-001 - Shaft Lever Assembly For 90 Inch Platform | 31139-001-THIE | $102.16 | ||
| 7 | | Thieman 31139-002 - Shaft Lever Assembly (96 Inches) | 31139-002-THIE | $102.16 | ||
| 8 | | Thieman 5100150 - Torsion Bar | 5100150-THIE | $94.22 | ||
| 9 | | Thieman 3106280 - Pivot Pin | 3106280-THIE | $36.91 | ||
| 10 | | Thieman 8120382 - Lock Washer (0.38) | 8120382-THIE | $0.44 | ||
| 11 | | Thieman 8180122 - Bolt (0.38-16 x 1 Inch) | 8180122-THIE | $0.76 | ||
| 12 | | Thieman 8271291 - Zerk Fitting | 8271291-THIE | $0.76 | ||
| 13 | | Thieman 9411032 - 90 Degree Grease Fitting | 9411032-THIE | $1.50 | ||
| 14 | | Thieman 8137243 - Cotter Pin (0.156 x 2 Inches) | 8137243-THIE | $0.08 | ||
| 15 | | Thieman 4220240 - Nylon Insert Lock | 4220240-THIE | $0.76 | ||
| 16 | | Thieman 8181635 - Set Screw (0.38-24 x 0.75 Inches) | 8181635-THIE | $0.76 | ||
| 17 | | Thieman 5793004 - Screw (0.50-13 x 1 Inch) | 5793004-THIE | $0.76 | ||
| 18 | | Thieman 5708-006 - Spring Pin (0.25 x 1.25 Inches) | 5708-006-THIE | $0.44 | ||
| 19 | | Thieman 5716 - Bearing | 5716-THIE | $22.61 | ||
| 20 | | Thieman 5767 - Handle Grip | 5767-THIE | $2.98 |

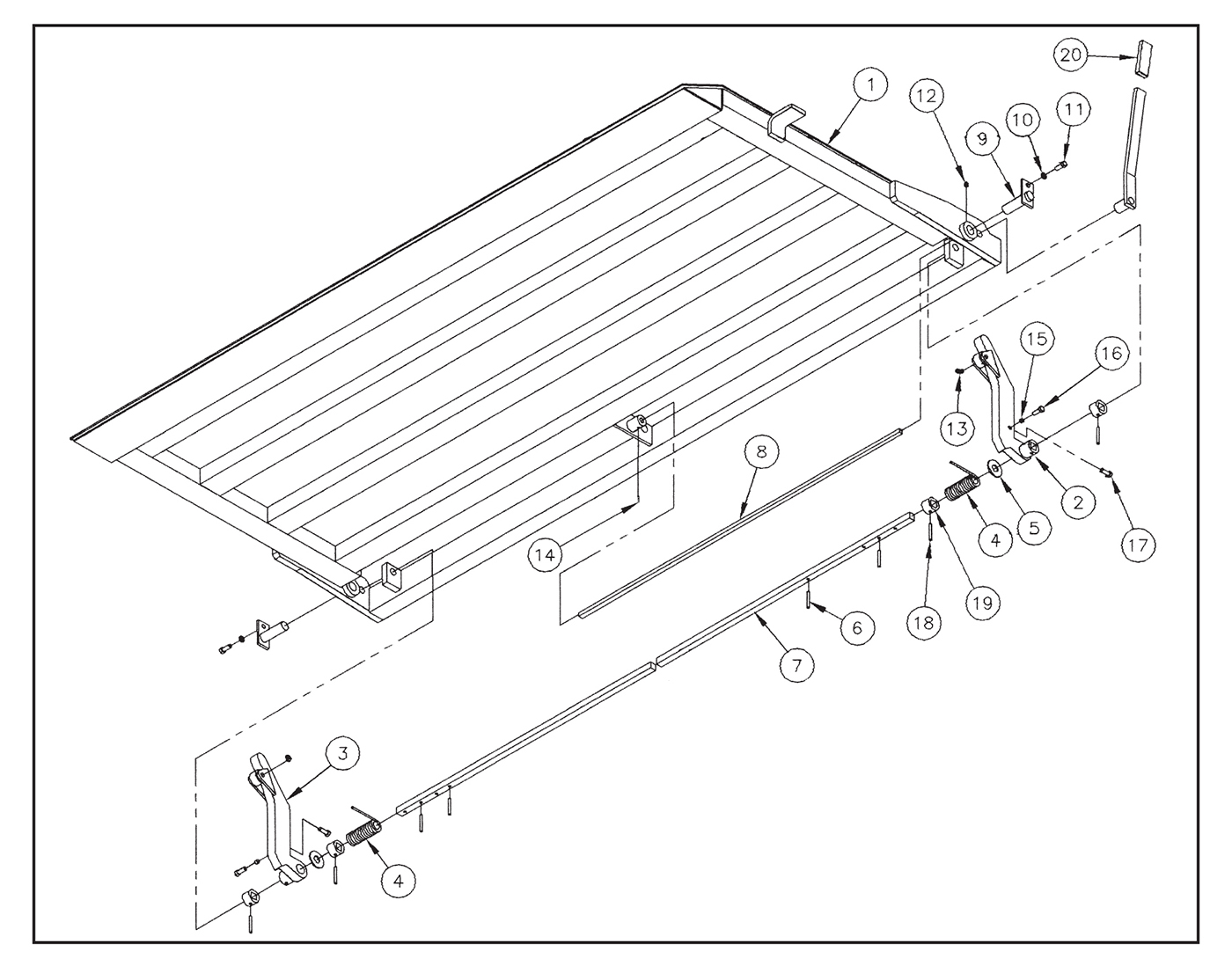

Thieman VL30 VL40 VL50 Diagrams
