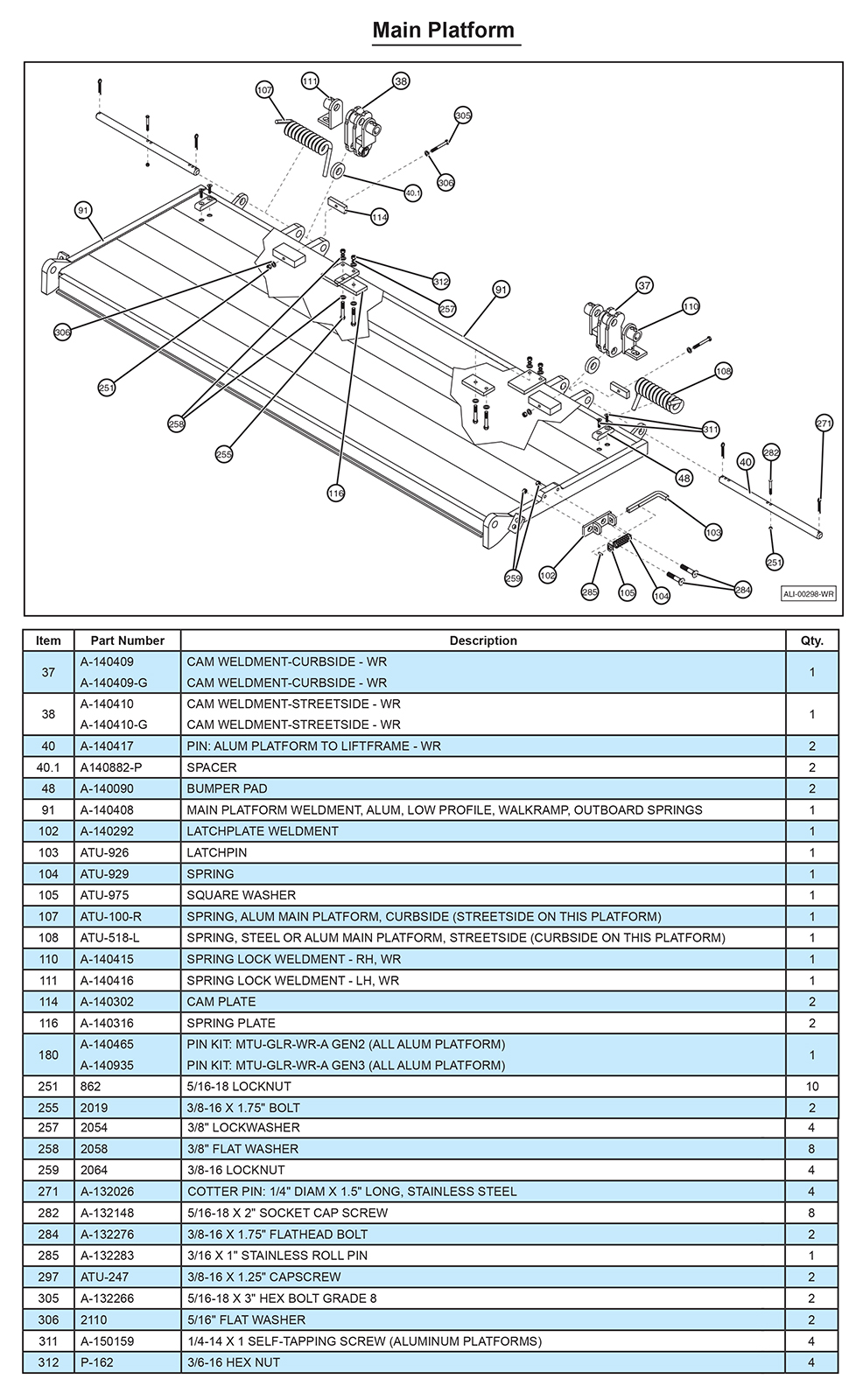

Anthony MTU-GLR-WR Main Platform Diagram

Anthony MTU-GLR-WR Main Platform Diagram

SKU: MTU-GLR-WR-MPF-DG Category:
ID Image Title SKU Price Quantity Add to Cart
37Anthony Liftgates LogoAnthony A-140409 - Curbside Cam WeldmentA-140409-ANT$259.72
37Anthony Liftgates LogoAnthony A-140409-G - Galvanized Curbside Cam WeldmentA-140409-G-ANT$124.81
38Anthony Liftgates LogoAnthony A-140410 - Streetside Cam WeldmentA-140410-ANT$254.85
48Anthony Liftgates LogoAnthony A-140090 - Bumper Wear PadA-140090-ANT$14.95
102Anthony Liftgates LogoAnthony A-140292 - Latchplate WeldmentA-140292-ANT$35.89
103Anthony Liftgates LogoAnthony ATU-926 - Latch PinATU-926-ANT$12.01
104Anthony Liftgates LogoAnthony ATU-929 - SpringATU-929-ANT$7.51
105Anthony Liftgates LogoAnthony ATU-975 - Square WasherATU-975-ANT$1.94
107Anthony Liftgates LogoAnthony ATU-100-R - Assist Spring Right Curbside AluminumATU-100-R-ANT$44.21
108Anthony Liftgates LogoAnthony ATU-518-L - Main Platform Spring LHATU-518-L-ANT$54.03
114Anthony Liftgates LogoAnthony A-140302 - Cam PlateA-140302-ANT$7.81
116Anthony Liftgates LogoAnthony A-140316 - Spring PlateA-140316-ANT$19.54
251Anthony Liftgates LogoAnthony 862 - Locknut Center-Locking 5/16-18 NC862-ANT$1.12
255Anthony Liftgates LogoAnthony 2019 - 3/8-16 x 1-3/4 Inch Hex Bolt Platform Lobe Pin2019-ANT$0.81
257Anthony Liftgates LogoAnthony 2054 - Lockwasher 5/16 Inches2054-ANT$1.16
258Anthony Liftgates LogoAnthony 2058 - Flat Washer 3/8 Inch SAE2058-ANT$0.86
259Anthony Liftgates LogoAnthony 2064 - Reversible Hex Locknut 3/8-16 Zinc-Plated2064-ANT$2.05
271Anthony Liftgates LogoAnthony A-132026 - Cotter Pin 1/4 x 1-1/2 InchA-132026-ANT$1.39
282Anthony Liftgates LogoAnthony A-132148 - 5/16-18 x 2 Inch Socket Cap ScrewA-132148-ANT$0.65
284Anthony Liftgates LogoAnthony A-132276 - 3/8-16 x 1-3/4 Inch Flathead BoltA-132276-ANT$1.46
285Anthony Liftgates LogoAnthony A-132283 - Stainless Roll Pin (3/16 x 1 Inch)A-132283-ANT$2.52
297Anthony Liftgates LogoAnthony ATU-257 - Complete PlatformATU-257-ANT$3,583.93
305Anthony Liftgates LogoAnthony A-132266 - 5/16-18 x 3 Inch Hex Bolt GR8A-132266-ANT$2.04
306Anthony Liftgates LogoAnthony 2110 - Flat Washer 5/16 Inch2110-ANT$1.24
311Anthony Liftgates LogoAnthony A-150159 - Flanged Self-Tapping ScrewA-150159-ANT$1.77
312Anthony Liftgates LogoAnthony P-162 - Hex Nut 3/8-16P-162-ANT$1.34

PLEASE provide your Anthony Liftgate’s Serial Number and Model Number in the Order Comments at Checkout to ensure the correct parts are ordered. Anthony Liftgate parts ordered without providing a Serial Number or Model Number are subject to Restrictions if a Return is required. See TERMS OF SALE for more information.
