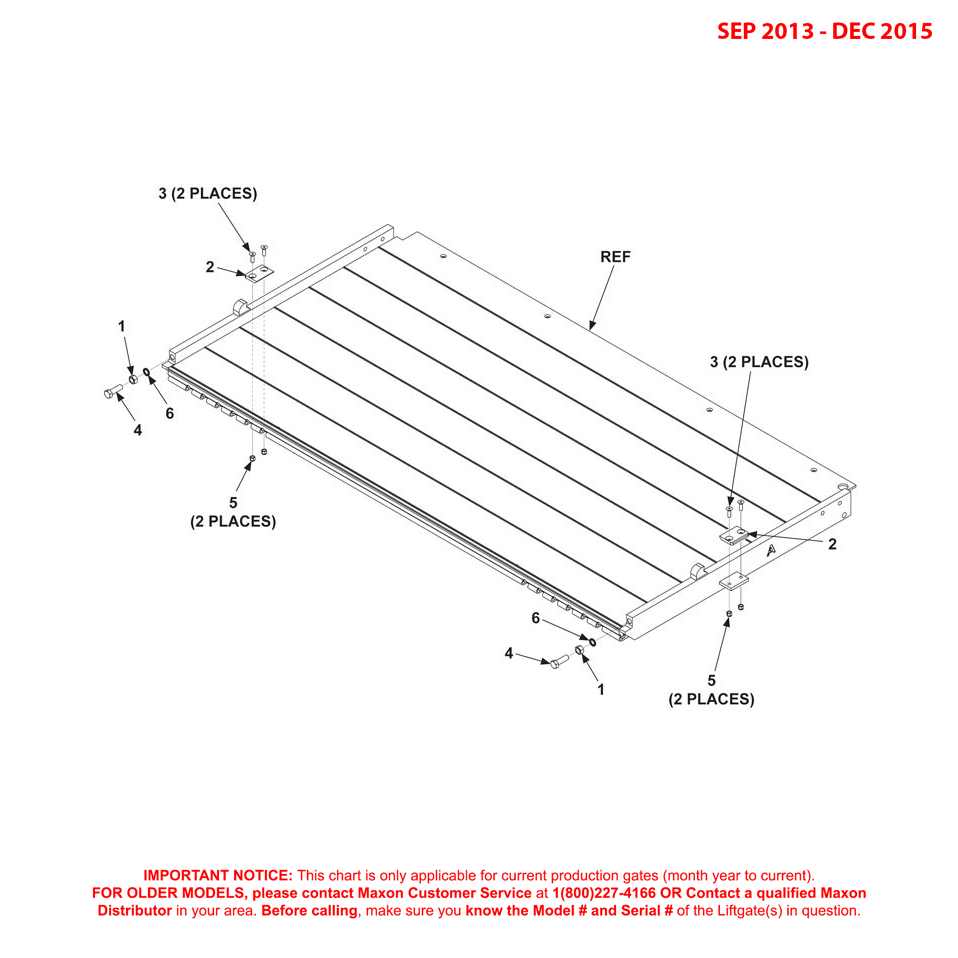

Maxon BMRA (Sep 2013 - Dec 2015) Aluminum Platform Flipover And Chain Assembly Diagram 2B From ITEParts.com

ID	Title	SKU	Price
0	Maxon 284579-53 - P/F Assembly AL BMRA 80 X 42	284579-53-MAXO	$2,751.45
0	Maxon 284579-63 - P/F Assembly AL BMRAW 86 X 42	284579-63-MAXO	$4,428.45
2	Maxon 280027 - Bracket	280027-MAXO	$25.59
3	Maxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZC	900040-5-MAXO	$1.47
5	Maxon 901002 - Nut Nylon 3/8-16 Zinc	901002-MAXO	$0.36
6	Maxon 903435-09 - Washer Nord-Lock .63/M16 ZC	903435-09-MAXO	$5.81

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
