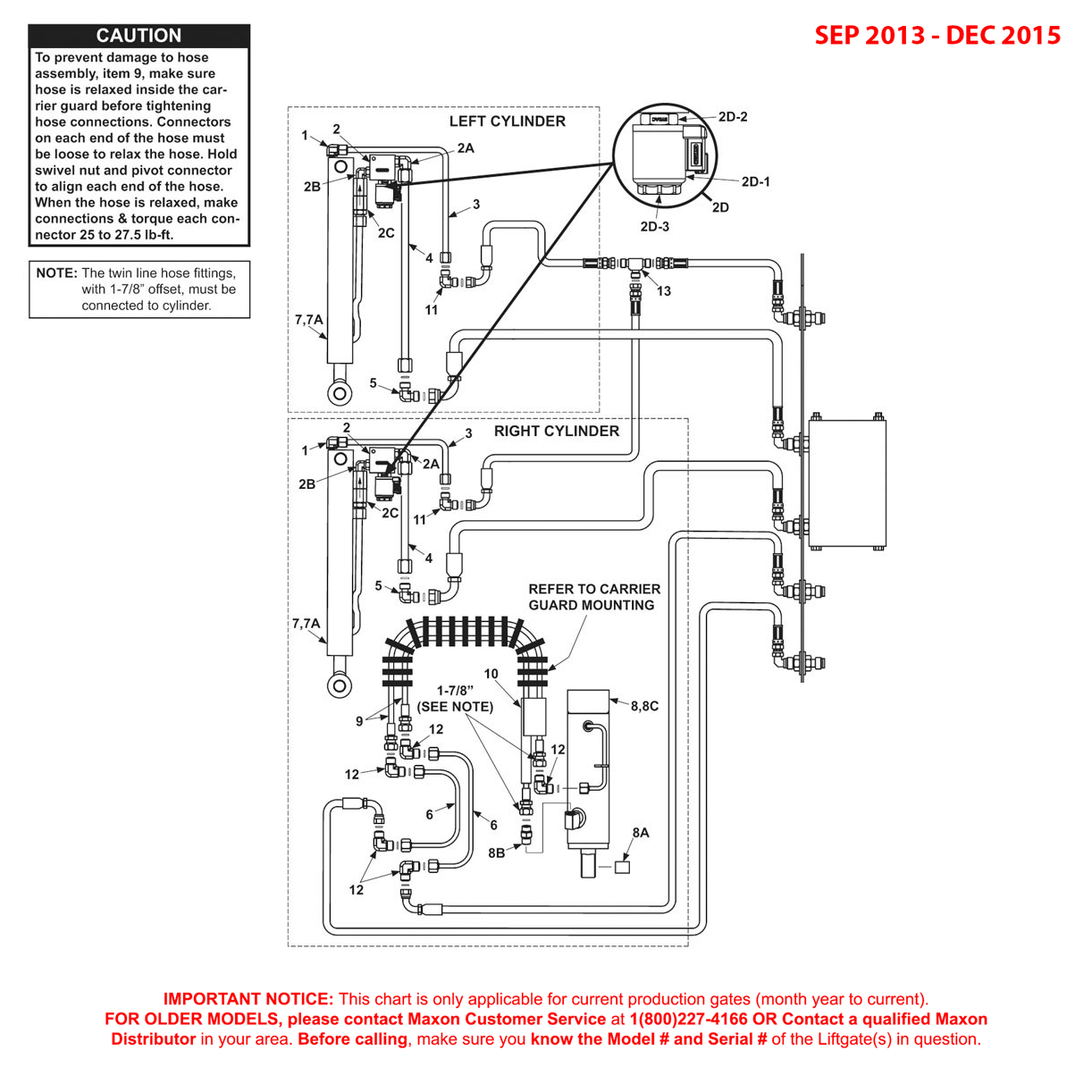

Maxon BMRSD (Sep 2013 - Dec 2015) Hydraulic Components Diagram (1 OF 2)

Maxon BMRSD (Sep 2013 – Dec 2015) Hydraulic Components Diagram (1 OF 2)

SKU: BMRSD-SEP13-DEC15-HYDC-DG1 Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 906840-01 - Cartridge Valve and Nut 2W2PMaxon 906840-01 - Cartridge Valve and Nut 2W2P906840-01-MAXO$102.23
0Maxon 906840-02 - Nut Cartridge ValveMaxon 906840-02 - Nut Cartridge Valve906840-02-MAXO$5.42
0Maxon 906841-01 - Solenoid Coil 12 VDCMaxon 906841-01 - Solenoid Coil 12 VDC906841-01-MAXO$54.45
1Maxon 905157 - Elbow 3/8 F/S 1/4 NPTF M-MMaxon 905157 - Elbow 3/8 F/S 1/4 NPTF M-M905157-MAXO$32.58
2Maxon 260164 - ELB 90ST TR O-Ring #6M-M1/4NPTFMaxon 260164 - ELB 90ST TR O-Ring #6M-M1/4NPTF260164-MAXO$24.98
2Maxon 264307 - HYD Lock and Press Comp VLV AssemblyMaxon 264307 - HYD Lock and Press Comp VLV Assembly264307-MAXO$364.47
2Maxon 269132-01 - Pressure COMP Valve Assembly 3GPMMaxon 269132-01 - Pressure COMP Valve Assembly 3GPM269132-01-MAXO$82.64
2Maxon 282999-01 - Lock Valve Assembly 12VMaxon 282999-01 - Lock Valve Assembly 12V282999-01-MAXO$133.85
2Maxon 905158 - Elbow Straight F/S#-O-R #6Maxon 905158 - Elbow Straight F/S#-O-R #6905158-MAXO$69.20
3Maxon 280629-01 - F/S Tube Assembly RTN Line BMRAMaxon 280629-01 - F/S Tube Assembly RTN Line BMRA280629-01-MAXO$92.94
4Maxon 280628-01 - F/S Tube Assembly LFT Line BMRAMaxon 280628-01 - F/S Tube Assembly LFT Line BMRA280628-01-MAXO$111.24
5Maxon 906830-01 - Union Elbow F/S #8M-#8M 90DEGMaxon 906830-01 - Union Elbow F/S #8M-#8M 90DEG906830-01-MAXO$6.47
6Maxon 268008-02 - Tube Assembly 11.15LGMaxon 268008-02 - Tube Assembly 11.15LG268008-02-MAXO$48.44
7Maxon 280663-01 - Hydraulic Cylinder DBL ACT 1.75 X 53.13 X 1 InchMaxon 280663-01 - Hydraulic Cylinder DBL ACT 1.75 X 53.13 X 1 Inch280663-01-MAXO$924.81
7Maxon 280663-02 - Hydraulic Cylinder DBL ACT 2.00 X 53.13 X 1Maxon 280663-02 - Hydraulic Cylinder DBL ACT 2.00 X 53.13 X 1280663-02-MAXO$707.45
7Maxon 280663SK-01 - Kit Maxon SealMaxon 280663SK-01 - Kit Maxon Seal280663SK-01-MAXO$116.55
7Maxon 280663SK-02 - Kit Maxon SealMaxon 280663SK-02 - Kit Maxon Seal280663SK-02-MAXO$117.84
8Maxon 253657 - Bearing Self Lube 1 X 1 InchMaxon 253657 - Bearing Self Lube 1 X 1 Inch253657-MAXO$17.85
8Maxon 268125-01 - CYL Assembly D/ACT 2.5 B X 5.5 STR X 1 RMaxon 268125-01 - CYL Assembly D/ACT 2.5 B X 5.5 STR X 1 R268125-01-MAXO$806.15
8Maxon 290060 - Seal Kit 2.5 X 7.75 Closer CylinderMaxon 290060 - Seal Kit 2.5 X 7.75 Closer Cylinder290060-MAXO$169.35
8Maxon 905179 - Connector F/S #4 O-Ring #6 M-MMaxon 905179 - Connector F/S #4 O-Ring #6 M-M905179-MAXO$14.10
9Maxon 268126-01 - H/A Twin Line P/F OPNG CLMaxon 268126-01 - H/A Twin Line P/F OPNG CL268126-01-MAXO$204.95
10Maxon 268128-01 - Rubber SpacerMaxon 268128-01 - Rubber Spacer268128-01-MAXO$11.61
11Maxon 906829-01 - Union Elbow F/S #6M-#6M 90DEGMaxon 906829-01 - Union Elbow F/S #6M-#6M 90DEG906829-01-MAXO$6.51
12Maxon 906792-01 - Union Elbow F/S #4M-#4M 90DEGMaxon 906792-01 - Union Elbow F/S #4M-#4M 90DEG906792-01-MAXO$5.87
13Maxon 905150 - Tee Union 3/8 FS Male 6-JLOMaxon 905150 - Tee Union 3/8 FS Male 6-JLO905150-MAXO$12.77

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
