| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 901023-04 - Flange Lock Nut 63-11 ZC | 901023-04-MAXO | $1.82 | ||
| 2 | | Maxon 902013-13 - Washer Flat 1/2 Inch SAE ZC | 902013-13-MAXO | $0.57 | ||
| 3 | | Maxon 268055-01 - Channel Weldment SST | 268055-01-MAXO | $786.29 | ||
| 3 | | Maxon 268055-02 - Channel Weldment | 268055-02-MAXO | $225.62 | ||
| 4 | | Maxon 902013-15 - Flat Washer 5/8 Inch ZC | 902013-15-MAXO | $0.44 | ||
| 5 | | Maxon 901010 - Nylon Lock Nut 1/2-13 ZC | 901010-MAXO | $0.54 | ||
| 6 | | Maxon 900055-14 - Screw Hex Head .625-11UNC X 4.5 Inch | 900055-14-MAXO | $4.25 | ||
| 7 | | Maxon 268061-01 - EXT Plate Weldment SST 96 Inch Unit | 268061-01-MAXO | $1,388.40 | ||
| 7 | | Maxon 268061-02 - EXT Plate Weldment SST 102 Inch Unit | 268061-02-MAXO | $1,389.38 | ||
| 7 | | Maxon 268061-11 - EXT Plate Weldment 96 Inch Unit | 268061-11-MAXO | $960.89 | ||
| 7 | | Maxon 268061-12 - EXT Plate Weldment 102 Inch Unit | 268061-12-MAXO | $468.98 | ||
| 8 | | Maxon 268129-01 - Spacer SST .03 THK | 268129-01-MAXO | $3.54 | ||
| 9 | | Maxon 900035-3 - Screw Cap HXHD .5-13UNC-2A 1.50 | 900035-3-MAXO | $1.28 |
BMRSD (Sep 2013 - Dec 2015) Diagrams

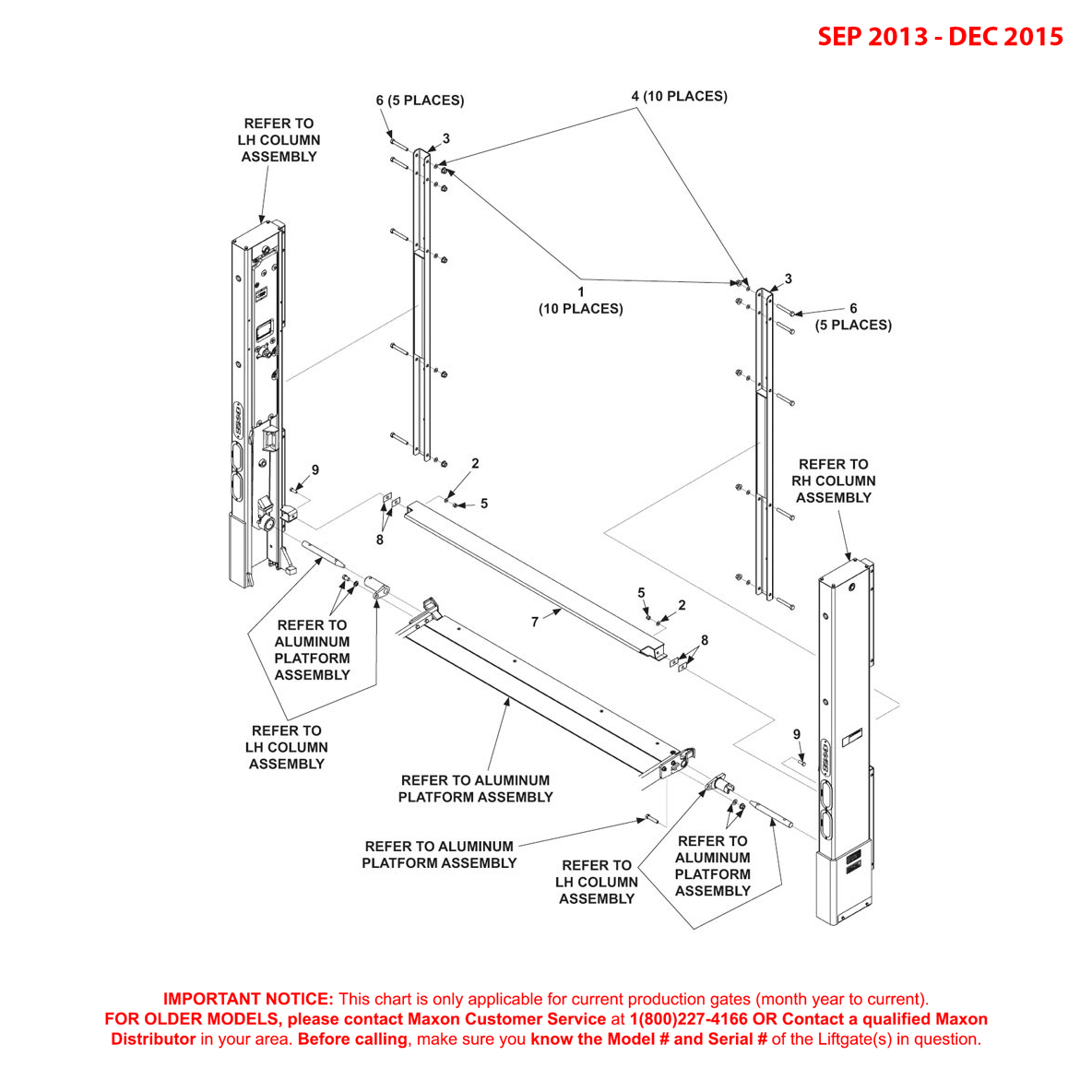

Maxon BMRSD (Sep 2013 – Dec 2015) Main Frame And Attaching Hardware For Aluminum Platform Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
