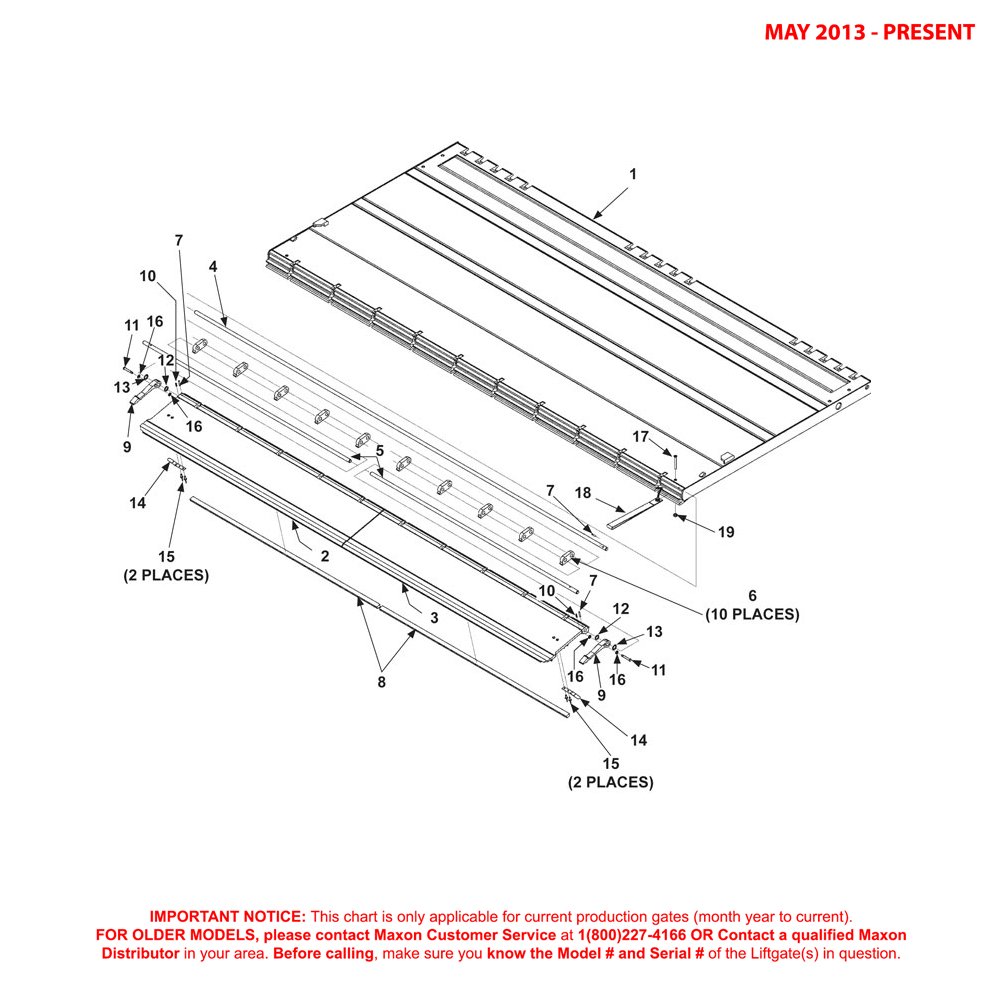

Maxon GPSLR (May 2013 - Present) Flipover With 85-3/8 Inch Dual Retention Ramps Diagram
Maxon Gpslr (may 2013 – Present) Flipover With 85 3/8 Inch Dual Retention Ramps Diagram

Maxon GPSLR (May 2013 – Present) Flipover With 85-3/8 Inch Dual Retention Ramps Diagram

SKU: GPSLR-MAY13-PRES-FODRR-85L-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 287458-01 - AL F/Over Weldment DRR 85.38 Inch LGMaxon 287458-01 - AL F/Over Weldment DRR 85.38 Inch LG287458-01-MAXO$2,606.18
2Maxon 267041-04 - Ramp Dual LH F/O 41.88 Inch LGMaxon 267041-04 - Ramp Dual LH F/O 41.88 Inch LG267041-04-MAXO$563.46
3Maxon 267041-06 - Ramp Dual RH F/O 41.88 Inch LGMaxon 267041-06 - Ramp Dual RH F/O 41.88 Inch LG267041-06-MAXO$369.66
4Maxon 267045-04 - Rod Hinge .50 DIA X 84.75 Inch LGMaxon 267045-04 - Rod Hinge .50 DIA X 84.75 Inch LG267045-04-MAXO$191.90
5Maxon 267045-06 - Rod Hinge .50 DIA X 42.56 Inch LGMaxon 267045-06 - Rod Hinge .50 DIA X 42.56 Inch LG267045-06-MAXO$49.73
6Maxon 311022-10 - Hinge F/O Ramp .50LGMaxon 311022-10 - Hinge F/O Ramp .50LG311022-10-MAXO$2.72
7Maxon 905007-07 - Pin Roll .156 X 1.00 Inch ZincMaxon 905007-07 - Pin Roll .156 X 1.00 Inch Zinc905007-07-MAXO$0.24
8Maxon 905318-04 - Bumper Extrusion .56 X .41 X 38.5 InchMaxon 905318-04 - Bumper Extrusion .56 X .41 X 38.5 Inch905318-04-MAXO$51.14
9Maxon 311038-11 - Hook Retention RampMaxon 311038-11 - Hook Retention Ramp311038-11-MAXO$15.53
10Maxon 905007-03 - Roll Pin DIM .156 X .63 Inch ZincMaxon 905007-03 - Roll Pin DIM .156 X .63 Inch Zinc905007-03-MAXO$0.17
11Maxon 283951-01 - Clevis Pin 1/4 X 1-5/8 InchMaxon 283951-01 - Clevis Pin 1/4 X 1-5/8 Inch283951-01-MAXO$6.90
13Maxon 903420-01 - Ring Retain SLF/LCK .50 SSMaxon 903420-01 - Ring Retain SLF/LCK .50 SS903420-01-MAXO$1.58
14Maxon 267326-01 - Spring Hook Retention RampMaxon 267326-01 - Spring Hook Retention Ramp267326-01-MAXO$13.83
15Maxon 904005-1 - Rivet - Blind Stainless Steel Dome .187 X .44 InchMaxon 904005-1 - Rivet - Blind Stainless Steel Dome .187 X .44 Inch904005-1-MAXO$0.48
16Maxon 903421-02 - Washer 6/6 Nylon .25 ID X .062 Inch THMaxon 903421-02 - Washer 6/6 Nylon .25 ID X .062 Inch TH903421-02-MAXO$0.18
17Maxon 900715-15 - Screw FL PH .25-20 X 2.25 Inch ZPMaxon 900715-15 - Screw FL PH .25-20 X 2.25 Inch ZP900715-15-MAXO$0.24
18Maxon 908095-02 - Handle-Strap W/Grommet 9.5 Inch LGMaxon 908095-02 - Handle-Strap W/Grommet 9.5 Inch LG908095-02-MAXO$14.31
19Maxon 901016-2 - Nut Hex THN HD LKG .250-20 UNCMaxon 901016-2 - Nut Hex THN HD LKG .250-20 UNC901016-2-MAXO$0.11

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
