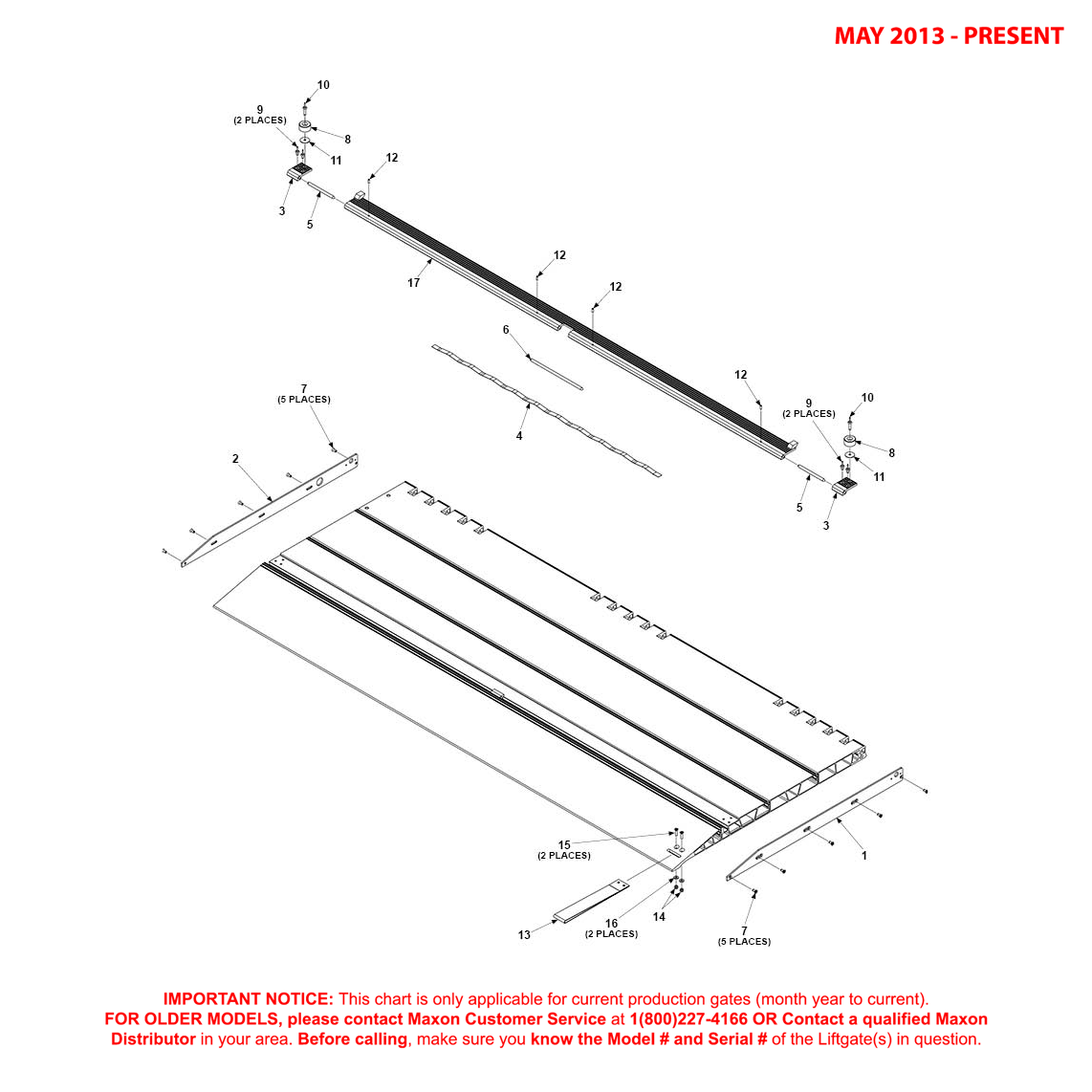

Maxon GPSLR (May 2013 - Present) Hydraulic Components Diagram (2 OF 2) From ITEParts.com

ID	Title	SKU	Price
3	Maxon 267088-01 - Link - Cart Stop	267088-01-MAXO	$15.92
4	Maxon 267581-01 - Spring F/OVER C/ST .63 X 42 Inch LG	267581-01-MAXO	$114.81
5	Maxon 267094-03 - Pin Cart Stop 5 Inch LG	267094-03-MAXO	$14.67
6	Maxon 267094-04 - Pin Cart Stop 9.75 Inch LG	267094-04-MAXO	$14.67
7	Maxon 900748-03 - Screw FL PH Type F .25-20 X .63 Inch ZP	900748-03-MAXO	$7.65
8	Maxon 905314-05 - Bumper CYL w/ Washer 1.5 X .75 Inch	905314-05-MAXO	$4.59
9	Maxon 903705-02 - Rivet BLD DOME AL/ST .25 X .6	903705-02-MAXO	$0.36
10	Maxon 903705-06 - Rivet BLD Dome AL/ST .25 X 1.2 Inch	903705-06-MAXO	$0.78
11	Maxon 903409-07 - Washer FEND .28 X 1.25 Inch OD SS	903409-07-MAXO	$0.41
12	Maxon 904719-03 - Pin Roll .188 X .56 Inch LG SS	904719-03-MAXO	$0.27
13	Maxon 284619-01 - Nylon Web Strap 12 Inch LG	284619-01-MAXO	$19.04
14	Maxon 901016-2 - Nut Hex THN HD LKG .250-20 UNC	901016-2-MAXO	$0.11
16	Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564	902013-09-MAXO	$0.11

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
