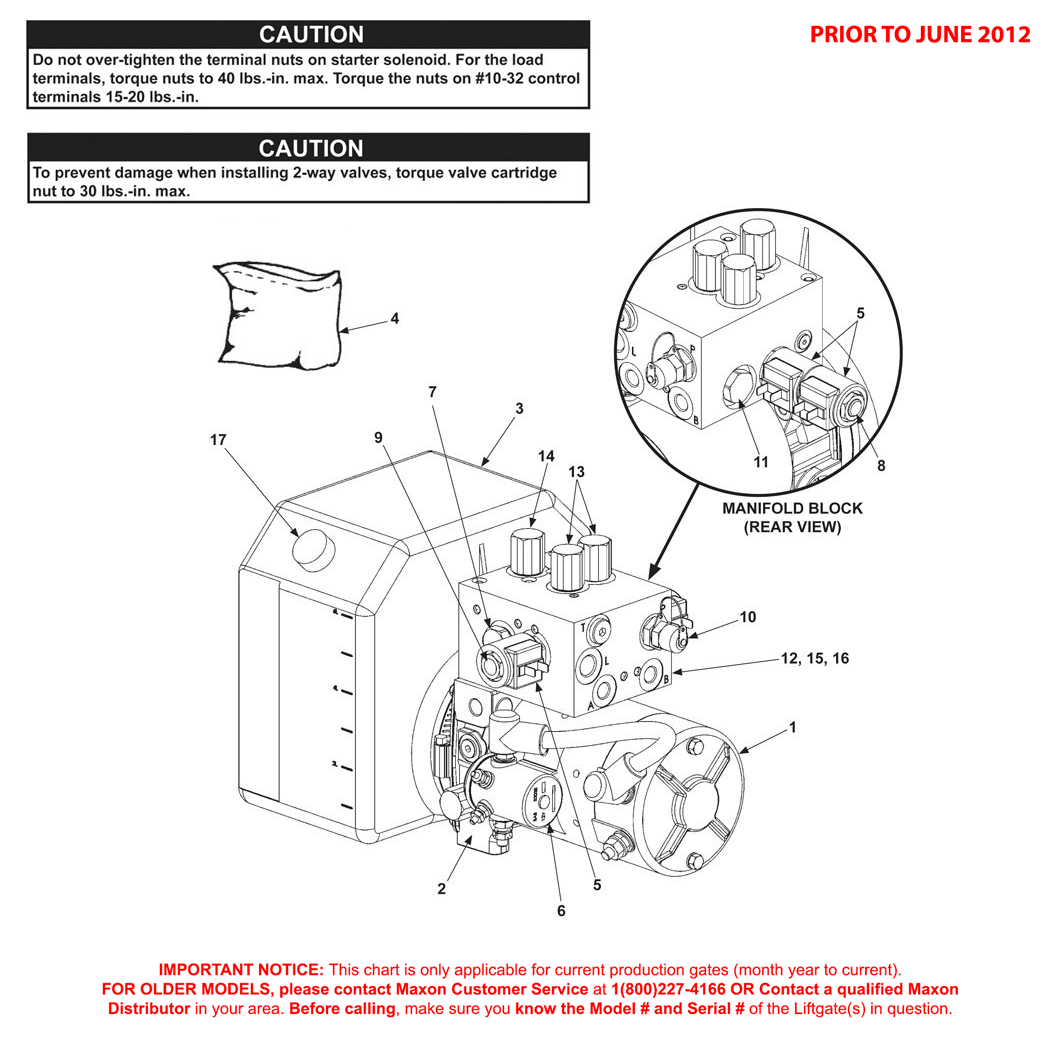

Maxon GPSLR (Prior to June 2012) 12VDC Haldex Power Unit Pump Only Diagram
Maxon Gpslr (prior To June 2012) 12vdc Haldex Power Unit Pump Only Diagram

Maxon GPSLR (Prior to June 2012) 12VDC Haldex Power Unit Pump Only Diagram

SKU: GPSLR-PJUN12-12VDC-HPU-PO-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 268446-01 - DC Motor H-XMaxon 268446-01 - DC Motor H-X268446-01-MAXO$958.64
3Maxon 268354-01 - Reservoir H-XMaxon 268354-01 - Reservoir H-X268354-01-MAXO$266.54
6Maxon 268449-01 - Solenoid Start SwitchMaxon 268449-01 - Solenoid Start Switch268449-01-MAXO$100.92
8Maxon 268359-01 - 2-POS/4-WAY Valve Stem H-XMaxon 268359-01 - 2-POS/4-WAY Valve Stem H-X268359-01-MAXO$403.97
9Maxon 268360-01 - 2-POS/2-WAY Valve Stem H-XMaxon 268360-01 - 2-POS/2-WAY Valve Stem H-X268360-01-MAXO$362.57
17Maxon 268368-01 - Breather H-XMaxon 268368-01 - Breather H-X268368-01-MAXO$12.47

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
