| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 287862-01 - Signal Cable Assembly | 287862-01-MAXO | $150.84 | ||
| 2 | | Maxon 287524-01 - Proximity Sensor Assembly | 287524-01-MAXO | $208.41 |
RA (Oct 2013 - Aug 2015) Diagrams

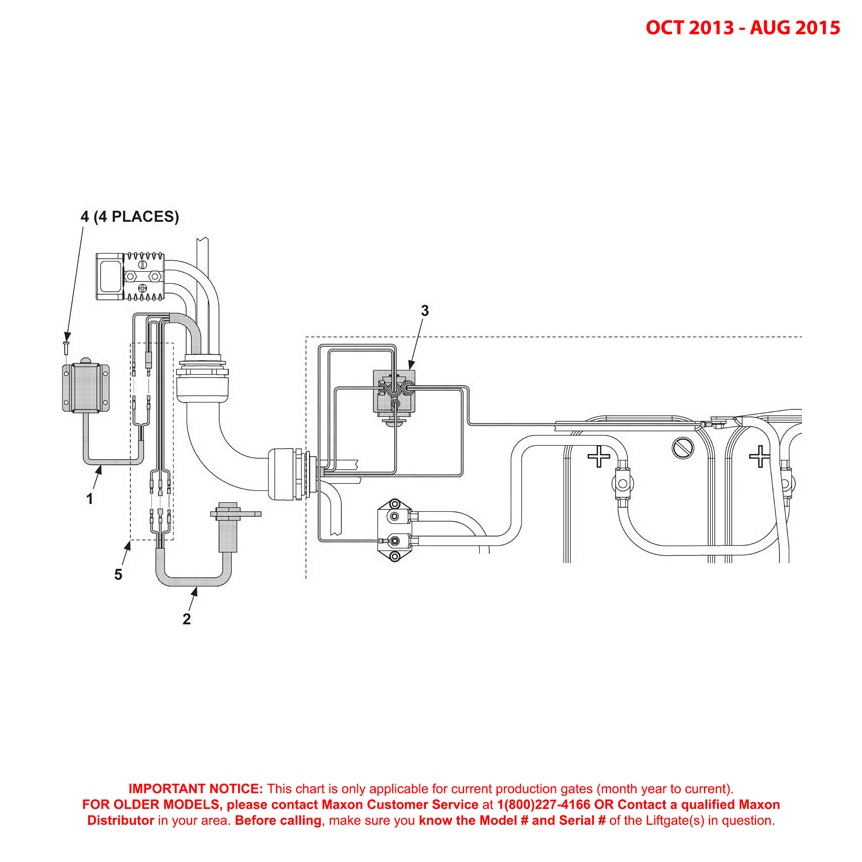

Maxon RA (Oct 2013 – Aug 2015) Stow Signal Electrical Components Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
