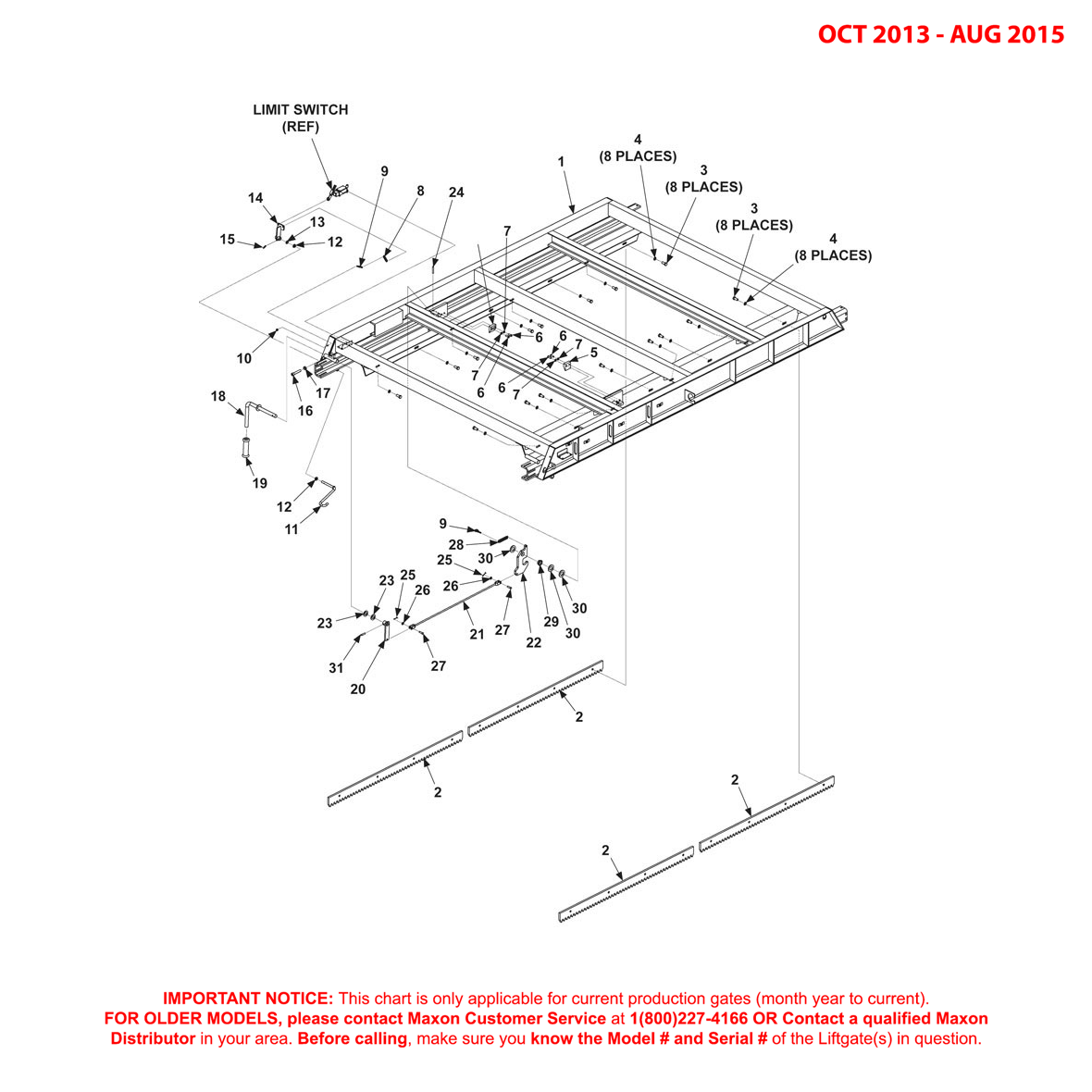

Maxon RA (Oct 2013 - Aug 2015) Main Frame Assembly Diagram
Maxon Ra (oct 2013 – Aug 2015) Main Frame Assembly Diagram

Maxon RA (Oct 2013 – Aug 2015) Main Frame Assembly Diagram

SKU: RA-OCT13-AUG15-MFA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
2Maxon 286996-01 - RECT Rack RAMaxon 286996-01 - RECT Rack RA286996-01-MAXO$221.57
3Maxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SSMaxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SS900764-05-MAXO$0.59
4Maxon 903448-02 - Washer NORD-Lock .38/M10 SSMaxon 903448-02 - Washer NORD-Lock .38/M10 SS903448-02-MAXO$4.25
5Maxon 284539-01 - Wear PadMaxon 284539-01 - Wear Pad284539-01-MAXO$16.41
6Maxon 900719-05 - Screw Button .25-20 X .75 Inch SSMaxon 900719-05 - Screw Button .25-20 X .75 Inch SS900719-05-MAXO$0.38
7Maxon 902019-3 - Washer Lock S/ST .487 OD X .260 ID InchMaxon 902019-3 - Washer Lock S/ST .487 OD X .260 ID Inch902019-3-MAXO$0.12
8Maxon 908176-02 - Spring Ext .38 OD X .048 WR Inch SSMaxon 908176-02 - Spring Ext .38 OD X .048 WR Inch SS908176-02-MAXO$26.06
9Maxon 285151-01 - Eye Bolt 10-24Maxon 285151-01 - Eye Bolt 10-24285151-01-MAXO$0.89
10Maxon 903129-01 - Nut Nylon Insert Thin 10-24 SSMaxon 903129-01 - Nut Nylon Insert Thin 10-24 SS903129-01-MAXO$0.21
11Maxon 284924-01 - Lever Rod Weldment RAMaxon 284924-01 - Lever Rod Weldment RA284924-01-MAXO$16.10
12Maxon 908062-01 - Self Lube Bearing .38 X .25 InchMaxon 908062-01 - Self Lube Bearing .38 X .25 Inch908062-01-MAXO$4.35
13Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
14Maxon 284925-01 - Protector Arm - Lever WeldmentMaxon 284925-01 - Protector Arm - Lever Weldment284925-01-MAXO$41.76
15Maxon 904719-06 - Pin Roll .188 X .75 Inch LG SSMaxon 904719-06 - Pin Roll .188 X .75 Inch LG SS904719-06-MAXO$0.32
17Maxon 903107-02 - Nut Hex .375-16 UNC SSMaxon 903107-02 - Nut Hex .375-16 UNC SS903107-02-MAXO$0.39
18Maxon 285369-02 - Rod Handle Weldment RA Z/PMaxon 285369-02 - Rod Handle Weldment RA Z/P285369-02-MAXO$22.95
20Maxon 285367-02 - Handle Lever Weldment Z/PMaxon 285367-02 - Handle Lever Weldment Z/P285367-02-MAXO$30.93
21Maxon 285370-02 - Link Bar Weldment Z/PMaxon 285370-02 - Link Bar Weldment Z/P285370-02-MAXO$36.00
22Maxon 285368-02 - Latch Hook RA Z/PMaxon 285368-02 - Latch Hook RA Z/P285368-02-MAXO$29.27
23Maxon 903434-13 - Washer Flat M16 SSMaxon 903434-13 - Washer Flat M16 SS903434-13-MAXO$0.72
24Maxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LGMaxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LG905033-1-MAXO$0.32
25Maxon 904725-01 - Pin Cotter 1/16 X 1/2 Inch SSMaxon 904725-01 - Pin Cotter 1/16 X 1/2 Inch SS904725-01-MAXO$0.11
26Maxon 902000-1 - Washer Flat 1/4 X 1/16 Inch USS ZCMaxon 902000-1 - Washer Flat 1/4 X 1/16 Inch USS ZC902000-1-MAXO$0.20
27Maxon 904724-01 - Pin Clevis 0.25 X 7/8 LG SSMaxon 904724-01 - Pin Clevis 0.25 X 7/8 LG SS904724-01-MAXO$4.97
28Maxon 215345 - Spring Extension .093 X 2.50Maxon 215345 - Spring Extension .093 X 2.50215345-MAXO$10.25
29Maxon 265072 - Bearing Self Lube .75 ID X .375Maxon 265072 - Bearing Self Lube .75 ID X .375265072-MAXO$2.42
30Maxon 903434-15 - Washer Flat M20 SSMaxon 903434-15 - Washer Flat M20 SS903434-15-MAXO$1.10
31Maxon 905033 - Roll Pin .250 O.D. X 1.00 Inch LGMaxon 905033 - Roll Pin .250 O.D. X 1.00 Inch LG905033-MAXO$0.30

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
