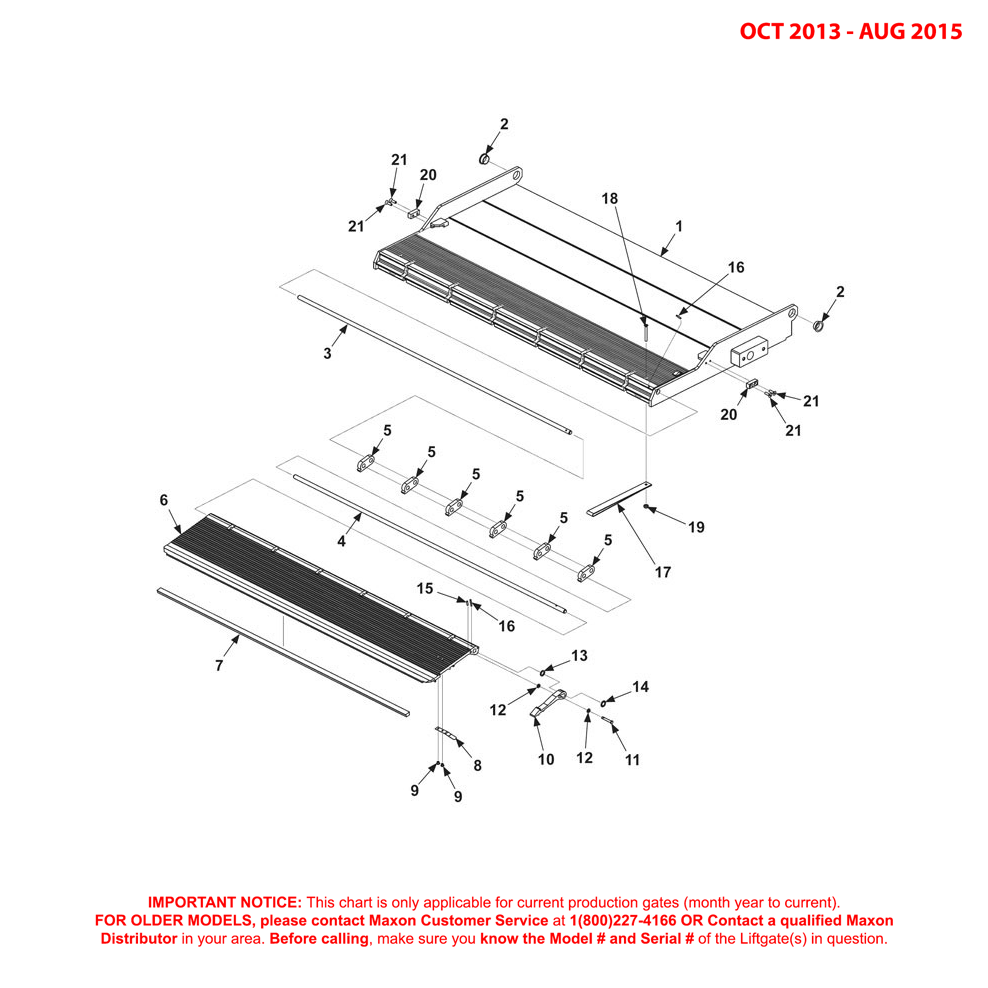

Maxon RA (Oct 2013 - Aug 2015) Flipover Assembly With Single Retention Ramp Diagram
Maxon Ra (oct 2013 – Aug 2015) Flipover Assembly With Single Retention Ramp Diagram

Maxon RA (Oct 2013 – Aug 2015) Flipover Assembly With Single Retention Ramp Diagram

SKU: RA-OCT13-AUG15-FOA-SRR-DG Category:
ID Image Title SKU Price Quantity Add to Cart
2Maxon 261837-01 - Bushing - FLNG PLST 1.004 ID X .5 InchMaxon 261837-01 - Bushing - FLNG PLST 1.004 ID X .5 Inch261837-01-MAXO$19.04
3Maxon 267045-10 - Rod Hinge .50 DIA X 82.25 Inch LGMaxon 267045-10 - Rod Hinge .50 DIA X 82.25 Inch LG267045-10-MAXO$69.77
5Maxon 311022-10 - Hinge F/O Ramp .50LGMaxon 311022-10 - Hinge F/O Ramp .50LG311022-10-MAXO$2.72
8Maxon 267326-01 - Spring Hook Retention RampMaxon 267326-01 - Spring Hook Retention Ramp267326-01-MAXO$13.83
9Maxon 904005-1 - Rivet - Blind Stainless Steel Dome .187 X .44 InchMaxon 904005-1 - Rivet - Blind Stainless Steel Dome .187 X .44 Inch904005-1-MAXO$0.48
10Maxon 311038-11 - Hook Retention RampMaxon 311038-11 - Hook Retention Ramp311038-11-MAXO$15.53
11Maxon 283951-01 - Clevis Pin 1/4 X 1-5/8 InchMaxon 283951-01 - Clevis Pin 1/4 X 1-5/8 Inch283951-01-MAXO$6.90
12Maxon 903421-02 - Washer 6/6 Nylon .25 ID X .062 Inch THMaxon 903421-02 - Washer 6/6 Nylon .25 ID X .062 Inch TH903421-02-MAXO$0.18
13Maxon 903413-02 - Washer 6/6 Nylon .5 ID X .062 Inch THMaxon 903413-02 - Washer 6/6 Nylon .5 ID X .062 Inch TH903413-02-MAXO$0.18
14Maxon 903420-01 - Ring Retain SLF/LCK .50 SSMaxon 903420-01 - Ring Retain SLF/LCK .50 SS903420-01-MAXO$1.58
15Maxon 905007-03 - Roll Pin DIM .156 X .63 Inch ZincMaxon 905007-03 - Roll Pin DIM .156 X .63 Inch Zinc905007-03-MAXO$0.17
16Maxon 905007-07 - Pin Roll .156 X 1.00 Inch ZincMaxon 905007-07 - Pin Roll .156 X 1.00 Inch Zinc905007-07-MAXO$0.24
17Maxon 908095-02 - Handle-Strap W/Grommet 9.5 Inch LGMaxon 908095-02 - Handle-Strap W/Grommet 9.5 Inch LG908095-02-MAXO$14.31
18Maxon 900715-15 - Screw FL PH .25-20 X 2.25 Inch ZPMaxon 900715-15 - Screw FL PH .25-20 X 2.25 Inch ZP900715-15-MAXO$0.24
19Maxon 901016-2 - Nut Hex THN HD LKG .250-20 UNCMaxon 901016-2 - Nut Hex THN HD LKG .250-20 UNC901016-2-MAXO$0.11
20Maxon 287473-01 - Stop LatchMaxon 287473-01 - Stop Latch287473-01-MAXO$10.95
21Maxon 900711-04 - Screw SOC FL .25-20 X .88 Inch SSMaxon 900711-04 - Screw SOC FL .25-20 X .88 Inch SS900711-04-MAXO$0.32

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
