| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Thieman 31411 - Trunnion Assembly with Bushing | 31411-THIE | $1,407.58 | ||
| 2 | | Thieman 31410 - Lift Arm Assembly | 31410-THIE | $1,460.21 | ||
| 3 | | Thieman 31388-002 - RH Idler Arm Assembly With Bushing | 31388-002-THIE | $227.22 | ||
| 4 | | Thieman 31388-001 - LH Idler Arm Assembly With Bushing | 31388-001-THIE | $227.22 | ||
| 5 | | Thieman 5071 - Pin | 5071-THIE | $59.79 | ||
| 6 | | Thieman 5708-009 - Spring Pin (0.25 x 2.50 Inches) | 5708-009-THIE | $1.50 | ||
| 7 | | Thieman 5708-001 - Spring Pin (0.25 x 2 Inches) | 5708-001-THIE | $1.50 | ||
| 8 | | Thieman 5024 - Pin | 5024-THIE | $33.71 | ||
| 9 | | Thieman 31633 - LRSD Heavy Duty Kicker Assembly | 31633-THIE | $106.08 | ||
| 10 | | Thieman 5781008 - Retaining Ring | 5781008-THIE | $1.20 | ||
| 11 | | Thieman 5775 - 2-Inch Kicker Roller | 5775-THIE | $30.83 | ||
| 13 | | Thieman 5100180 - Spring | 5100180-THIE | $11.36 | ||
| 14 | | Thieman 8427570 - Screw (0.44-14 x 2.50 Inches) | 8427570-THIE | $1.50 | ||
| 15 | | Thieman 8120396 - Flat Washer (0.50) | 8120396-THIE | $0.44 | ||
| 16 | | Thieman 9414073 - Lock Nut (0.44) | 9414073-THIE | $0.44 | ||
| 17 | | Thieman 4101-017 - Chain | 4101-017-THIE | $18.05 | ||
| 18 | | Thieman 8108-005 - Set Screw (0.38) | 8108-005-THIE | $1.50 | ||
| 19 | | Thieman 4220240 - Nylon Insert Lock | 4220240-THIE | $0.76 | ||
| 20 | | Thieman 8271771 - Screw (0.75-10 x 2 Inches) | 8271771-THIE | $3.58 | ||
| 21 | | Thieman 5504-001 - Steel Platform Bushing For Lift/Idler Arms | 5504-001-THIE | $10.66 | ||
| 22 | | Thieman 5504-014 - Bushing (1.5 ID - 1.75 OD - 2.188 Inch Length) | 5504-014-THIE | $21.53 | ||
| 23 | | Thieman 5504-015 - Bushing (1.5 ID - 1.75 OD - 1.25 Inch Length) | 5504-015-THIE | $14.19 | ||
| 24 | | Thieman 5789 - Idler Arm Wear Pad | 5789-THIE | $20.63 | ||
| 25 | | Thieman 8449646 - Self-Tapping Screw (0.25-20 x 0.75 Inch) | 8449646-THIE | $0.76 | ||
| 26 | | Thieman 5701910 - Screw (0.44-14 x 1.50 Inches) | 5701910-THIE | $1.50 |
LRST-40 Liftgate Diagrams

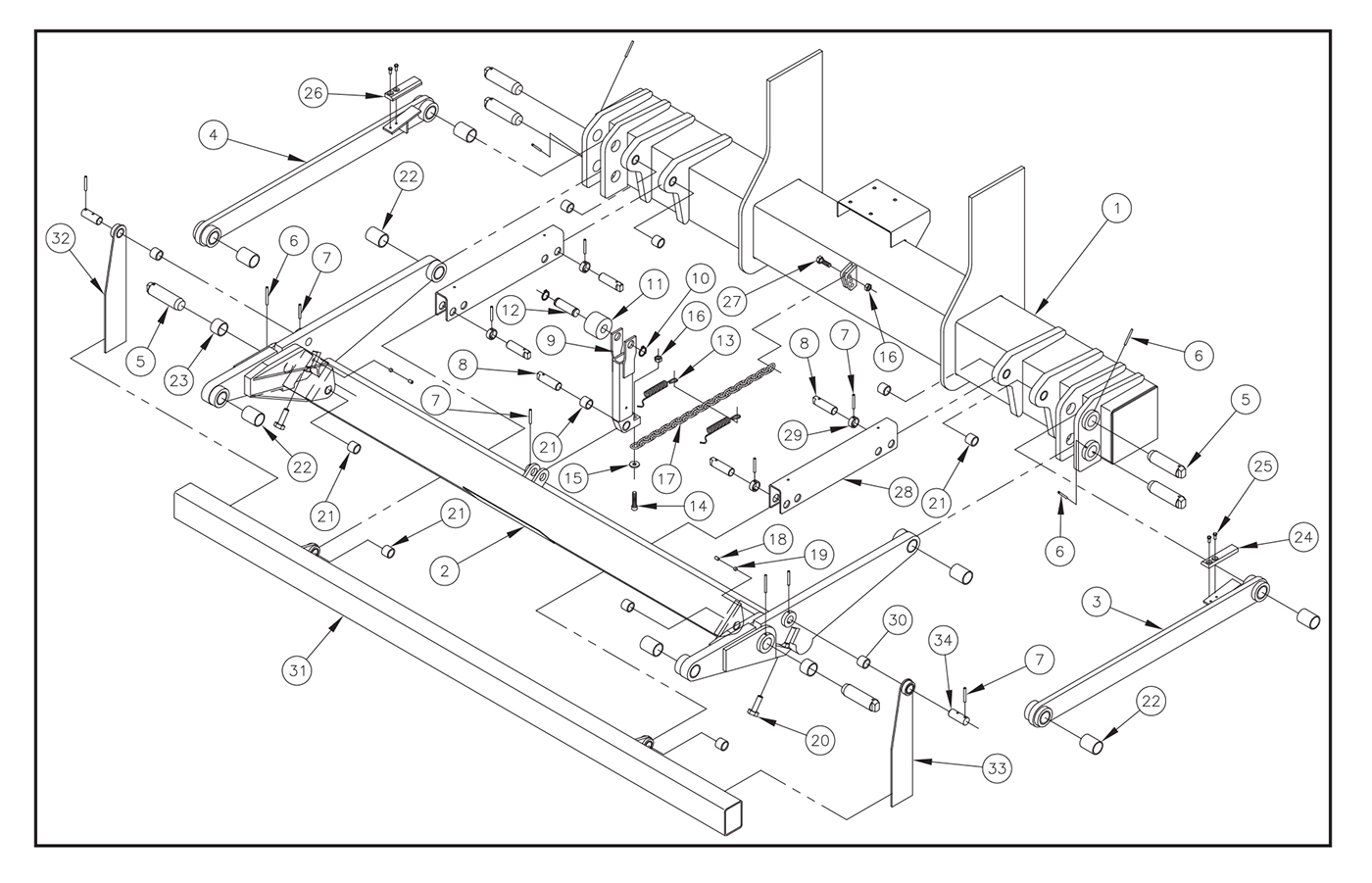

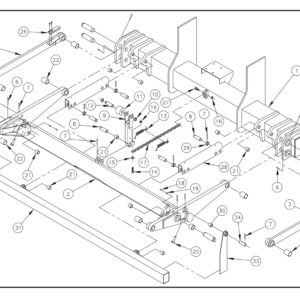

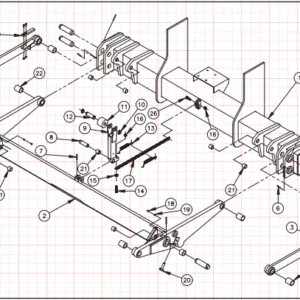

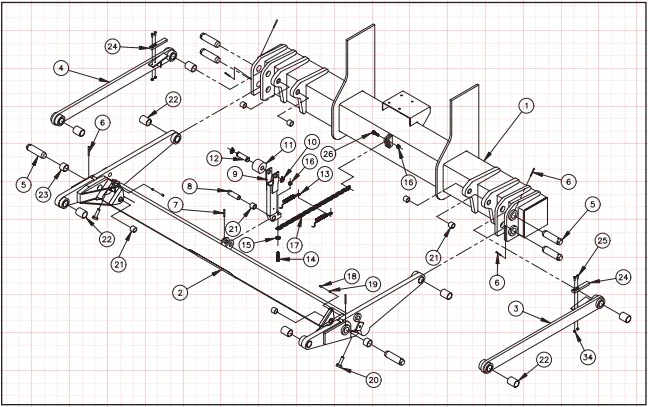

LRST40 Trunnion, Lift Arm, and Idler Arm Assembly Diagram
PARTS ORDERING PROCEDURE
INCLUDE THE FOLLOWING INFORMATION IN THE ORDER COMMENTS:
- Serial Number – Thieman liftgate serial numbers are located on the tag on the outside of the curb-side mounting plate.
- Model Number and Capacity.
- Platform size and Material – Steel or Aluminum.
LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL AND SERIAL NUMBERS WILL NOT BE ELIGIBLE FOR RETURN.

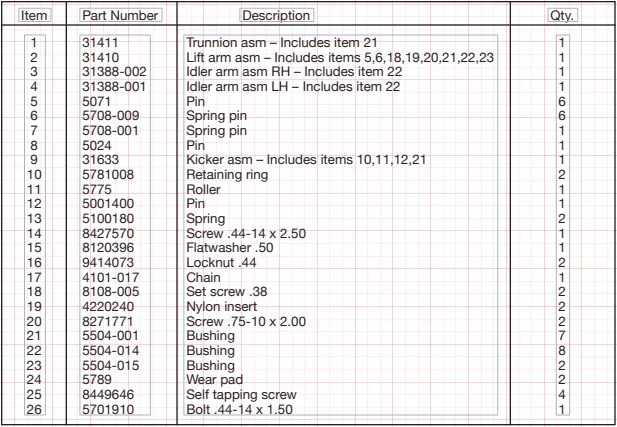

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. CHECK QUANTITIES IN THE SECONDARY IMAGE.Â
PARTS ORDERING PROCEDURE
INCLUDE THE FOLLOWING INFORMATION IN THE ORDER COMMENTS:
- Serial Number – Thieman liftgate serial numbers are located on the tag on the outside of the curb-side mounting plate.
- Model Number and Capacity.
- Platform size and Material – Steel or Aluminum.
