| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Thieman 3442 - Platform Assembly | 3442-THIE | $3,486.37 | ||
| 1 | | Thieman 3445-001 - Platform Assembly (Single Ramp Cart Stop) | 3445-001-THIE | $3,944.99 | ||
| 1 | | Thieman 3445-002 - Platform Assembly (Dual Ramp Cart Stop) | 3445-002-THIE | $3,944.99 | ||
| 2 | | Thieman 31401 - Platform Main Section | 31401-THIE | $2,429.19 | ||
| 3 | | Thieman 31407 - Platform Extension | 31407-THIE | $1,136.11 | ||
| 3 | | Thieman 31439-001 - Platform Single Cart Stop Ramp Extension | 31439-001-THIE | $1,360.35 | ||
| 3 | | Thieman 31439-002 - Platform Dual Cart Stop Ramp Extension | 31439-002-THIE | $1,457.51 | ||
| 4 | | Thieman 8119 - Shoulder Bolt (0.62) | 8119-THIE | $34.97 | ||
| 5 | | Thieman 8106-009 - Lock Washer (0.625) | 8106-009-THIE | $1.50 | ||
| 6 | | Thieman 8106-008 - Lock Washer (0.50) | 8106-008-THIE | $1.50 | ||
| 7 | | Thieman 9414074 - Lock Nut (0.50-13) | 9414074-THIE | $0.44 | ||
| 8 | | Thieman 5504-013 - Bushing | 5504-013-THIE | $18.13 | ||
| 9 | | Thieman 4220240 - Nylon Insert Lock | 4220240-THIE | $0.76 | ||
| 10 | | Thieman 8108-005 - Set Screw (0.38) | 8108-005-THIE | $1.50 | ||
| 11 | | Thieman 8114-002 - Screw (1.00 - 8 x 2 Inches) | 8114-002-THIE | $2.24 | ||
| 12 | | Thieman 5072 - Stow Pin | 5072-THIE | $33.50 | ||
| 13 | | Thieman 5708-001 - Spring Pin (0.25 x 2 Inches) | 5708-001-THIE | $1.50 | ||
| 14 | | Thieman 5708-009 - Spring Pin (0.25 x 2.50 Inches) | 5708-009-THIE | $1.50 | ||
| 15 | | Thieman 31379 - Roller Assembly | 31379-THIE | $66.98 | ||
| 16 | | Thieman 5504-014 - Bushing (1.5 ID - 1.75 OD - 2.188 Inch Length) | 5504-014-THIE | $21.53 | ||
| 17 | | Thieman 3057 - Spring Tube | 3057-THIE | $30.94 | ||
| 18 | | Thieman 5101260 - Closing Spring | 5101260-THIE | $35.07 | ||
| 19 | | Thieman 5074 - Pin | 5074-THIE | $83.71 | ||
| 20 | | Thieman 5070 - Pin | 5070-THIE | $68.90 | ||
| 21 | | Thieman 31405 - LH Pivot Hinge Weld | 31405-THIE | $239.18 | ||
| 22 | | Thieman 31406 - RH Pivot Hinge Weld | 31406-THIE | $239.18 |
LRST-40 Liftgate Diagrams

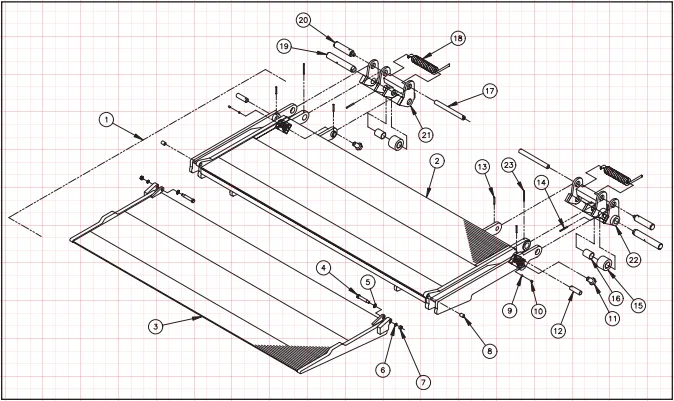

LRST40 Platform Torsion Spring Assist Assembly Diagram
PARTS ORDERING PROCEDURE
INCLUDE THE FOLLOWING INFORMATION IN THE ORDER COMMENTS:
- Serial Number – Thieman liftgate serial numbers are located on the tag on the outside of the curb-side mounting plate.
- Model Number and Capacity.
- Platform size and Material – Steel or Aluminum.
LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL AND SERIAL NUMBERS WILL NOT BE ELIGIBLE FOR RETURN.

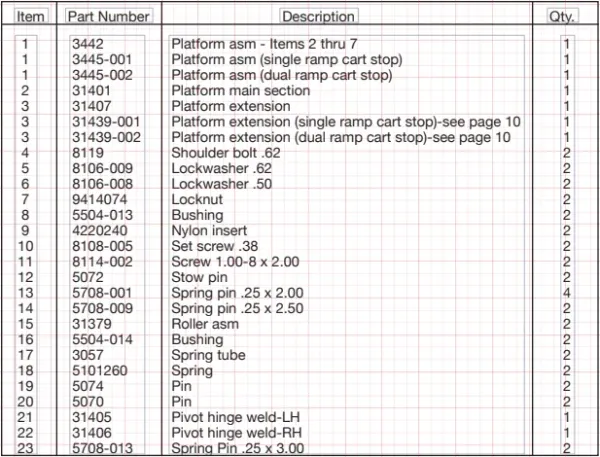

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. CHECK QUANTITIES IN THE SECONDARY IMAGE.Â
