| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Thieman 31439-001 - Platform Single Cart Stop Ramp Extension | 31439-001-THIE | $1,360.35 | ||
| 1 | | Thieman 31439-002 - Platform Dual Cart Stop Ramp Extension | 31439-002-THIE | $1,457.51 | ||
| 2 | | Thieman 31436-001 - Single Cart Stop Sub Weld | 31436-001-THIE | $174.61 | ||
| 2 | | Thieman 31436-002 - Dual Cart Stop Sub Weld | 31436-002-THIE | $210.48 | ||
| 3 | | Thieman 5076-002 - Cart Stop Pin (4.25 Inches) | 5076-002-THIE | $23.81 | ||
| 4 | | Thieman 5110 - Torsion Spring | 5110-THIE | $19.66 | ||
| 5 | | Thieman 5764-001 - Retaining Ring (0.44) | 5764-001-THIE | $0.76 | ||
| 6 | | Thieman 5076-001 - Cart Stop Pin (5.25 Inches) | 5076-001-THIE | $23.81 | ||
| 7 | | Thieman 2811 - Latch Bar | 2811-THIE | $47.65 | ||
| 8 | | Thieman 5101160 - Latch Spring | 5101160-THIE | $5.66 | ||
| 9 | | Thieman 5708-010 - SST Spring Pin (0.19 x 0.75 Inch) | 5708-010-THIE | $0.76 |
LRST-40 Liftgate Diagrams

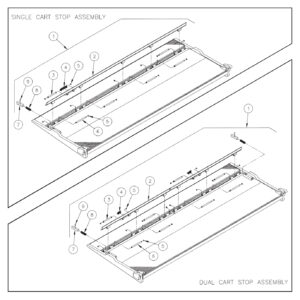

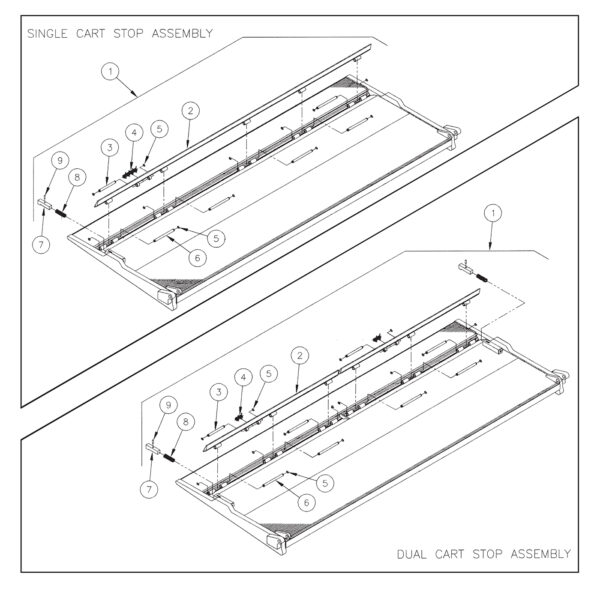

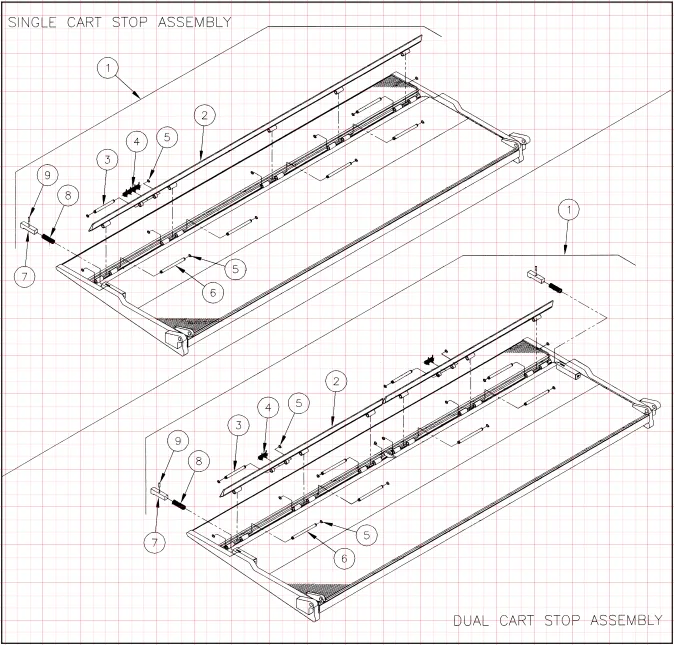

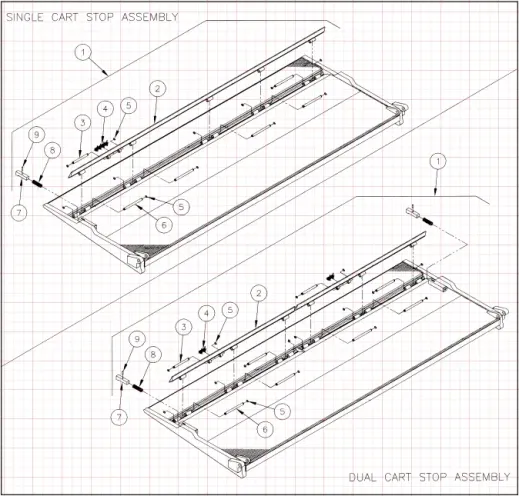

LRST40 Optional Cart Stop Assembly Diagram
PARTS ORDERING PROCEDURE
INCLUDE THE FOLLOWING INFORMATION IN THE ORDER COMMENTS:
- Serial Number – Thieman liftgate serial numbers are located on the tag on the outside of the curb-side mounting plate.
- Model Number and Capacity.
- Platform size and Material – Steel or Aluminum.
LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL AND SERIAL NUMBERS WILL NOT BE ELIGIBLE FOR RETURN.

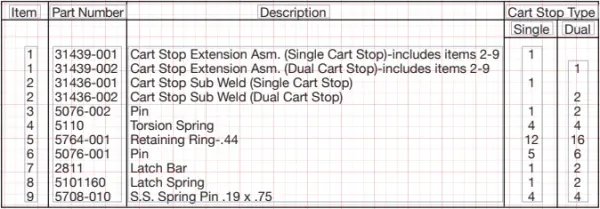

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. CHECK QUANTITIES IN THE SECONDARY IMAGE.
PARTS ORDERING PROCEDURE
INCLUDE THE FOLLOWING INFORMATION IN THE ORDER COMMENTS:
- Serial Number – Thieman liftgate serial numbers are located on the tag on the outside of the curb-side mounting plate.
- Model Number and Capacity.
- Platform size and Material – Steel or Aluminum.
