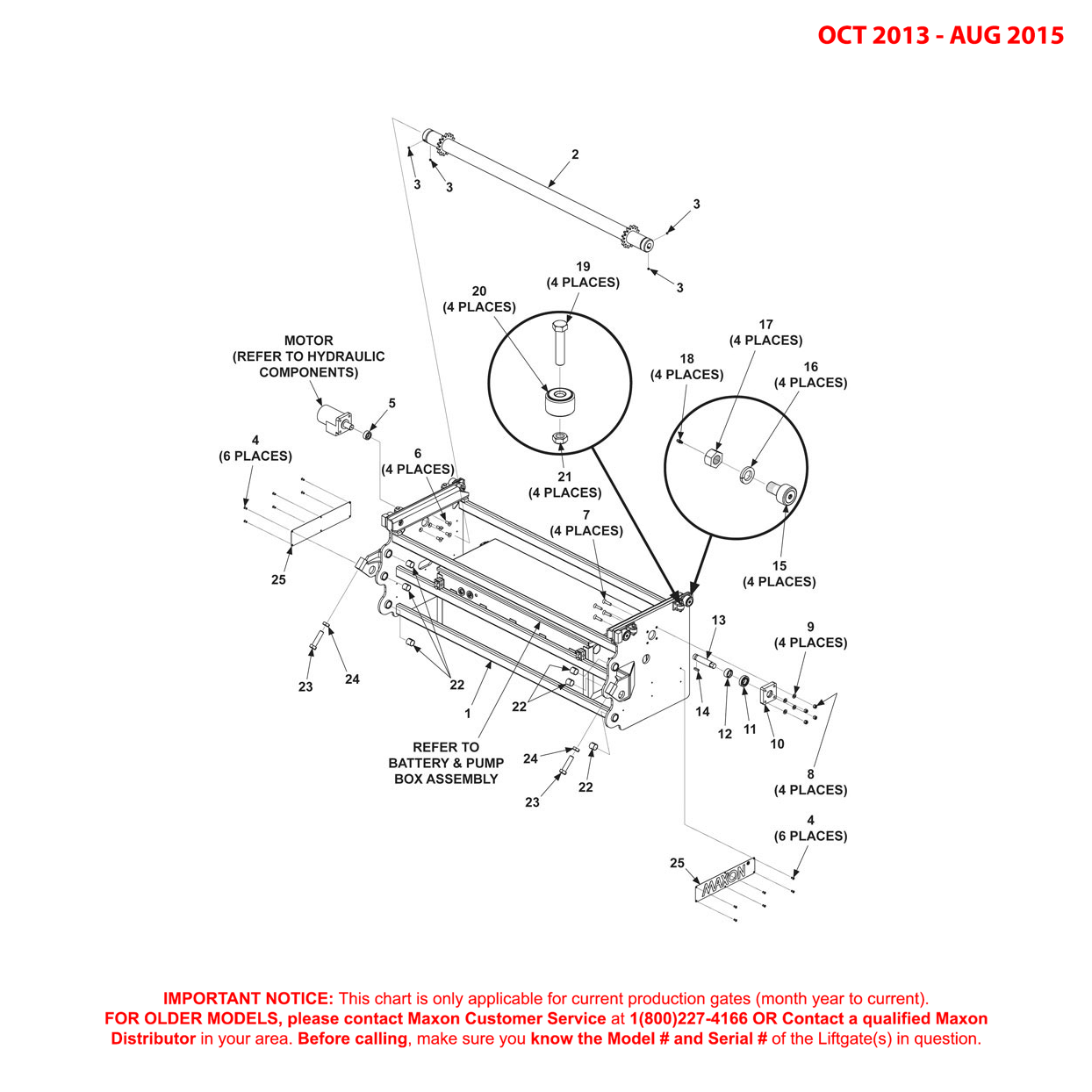

Maxon RA (Oct 2013 - Aug 2015) Slider Frame Assembly Diagram
Maxon Ra (oct 2013 – Aug 2015) Slider Frame Assembly Diagram

Maxon RA (Oct 2013 – Aug 2015) Slider Frame Assembly Diagram

SKU: RA-OCT13-AUG15-SFA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
2Maxon 284526-01 - Drive Tube / Pinion Weldment 56.125 Inch LGMaxon 284526-01 - Drive Tube / Pinion Weldment 56.125 Inch LG284526-01-MAXO$703.10
2Maxon 284526-02 - Drive Tube / Pinion Weldment 68.125 Inch LGMaxon 284526-02 - Drive Tube / Pinion Weldment 68.125 Inch LG284526-02-MAXO$786.54
2Maxon 284526-03 - Drive Tube / Pinion Weldment 90.125 Inch LGMaxon 284526-03 - Drive Tube / Pinion Weldment 90.125 Inch LG284526-03-MAXO$854.13
3Maxon 903006-2 - Screw Set 5/16-18 X 1/4 Inch FL ZCMaxon 903006-2 - Screw Set 5/16-18 X 1/4 Inch FL ZC903006-2-MAXO$0.56
5Maxon 268561-01 - Bushing SPRKT ALIGH .68 Inch LGMaxon 268561-01 - Bushing SPRKT ALIGH .68 Inch LG268561-01-MAXO$21.53
6Maxon 900061-4 - Flathead Screw SOC .375-16 1.00 LG SSTMaxon 900061-4 - Flathead Screw SOC .375-16 1.00 LG SST900061-4-MAXO$1.01
7Maxon 900061-7 - Flathead Screw SOC .375-16 1.75 LG SSTMaxon 900061-7 - Flathead Screw SOC .375-16 1.75 LG SST900061-7-MAXO$1.70
9Maxon 903434-10 - Washer Flat M10 SSMaxon 903434-10 - Washer Flat M10 SS903434-10-MAXO$0.27
10Maxon RSM0107 - SL15 Bearing HousingMaxon RSM0107 - SL15 Bearing HousingRSM0107-MAXO$97.26
11Maxon 268265-01 - Bearing - Radial - BallMaxon 268265-01 - Bearing - Radial - Ball268265-01-MAXO$158.10
12Maxon 268561-02 - Bushing SPRKT ALIGH .72 Inch LGMaxon 268561-02 - Bushing SPRKT ALIGH .72 Inch LG268561-02-MAXO$21.66
13Maxon 268294-01 - Shaft Manual DriveMaxon 268294-01 - Shaft Manual Drive268294-01-MAXO$55.20
14Maxon 285803-01 - BlockMaxon 285803-01 - Block285803-01-MAXO$1.41
15Maxon 284525-01 - CAM Follower Roller 1.875 DIAMaxon 284525-01 - CAM Follower Roller 1.875 DIA284525-01-MAXO$135.57
16Maxon 903450-01 - Split Lock Washer 1 Inch DIAMaxon 903450-01 - Split Lock Washer 1 Inch DIA903450-01-MAXO$1.38
17Maxon 903143-01 - Hex Nut Head 1-14Maxon 903143-01 - Hex Nut Head 1-14903143-01-MAXO$2.57
18Maxon 268264-02 - Grease Fitting Drive-In .19Maxon 268264-02 - Grease Fitting Drive-In .19268264-02-MAXO$0.89
19Maxon 900764-12 - Screw Hex Cap .38-16 X 1.75 Inch SSMaxon 900764-12 - Screw Hex Cap .38-16 X 1.75 Inch SS900764-12-MAXO$1.55
20Maxon 201966 - Roller Yoke #CYR 1-1/4-SMaxon 201966 - Roller Yoke #CYR 1-1/4-S201966-MAXO$59.94
21Maxon 903152-01 - Nut Nylon Insert THN .38-16 SSMaxon 903152-01 - Nut Nylon Insert THN .38-16 SS903152-01-MAXO$0.53

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
