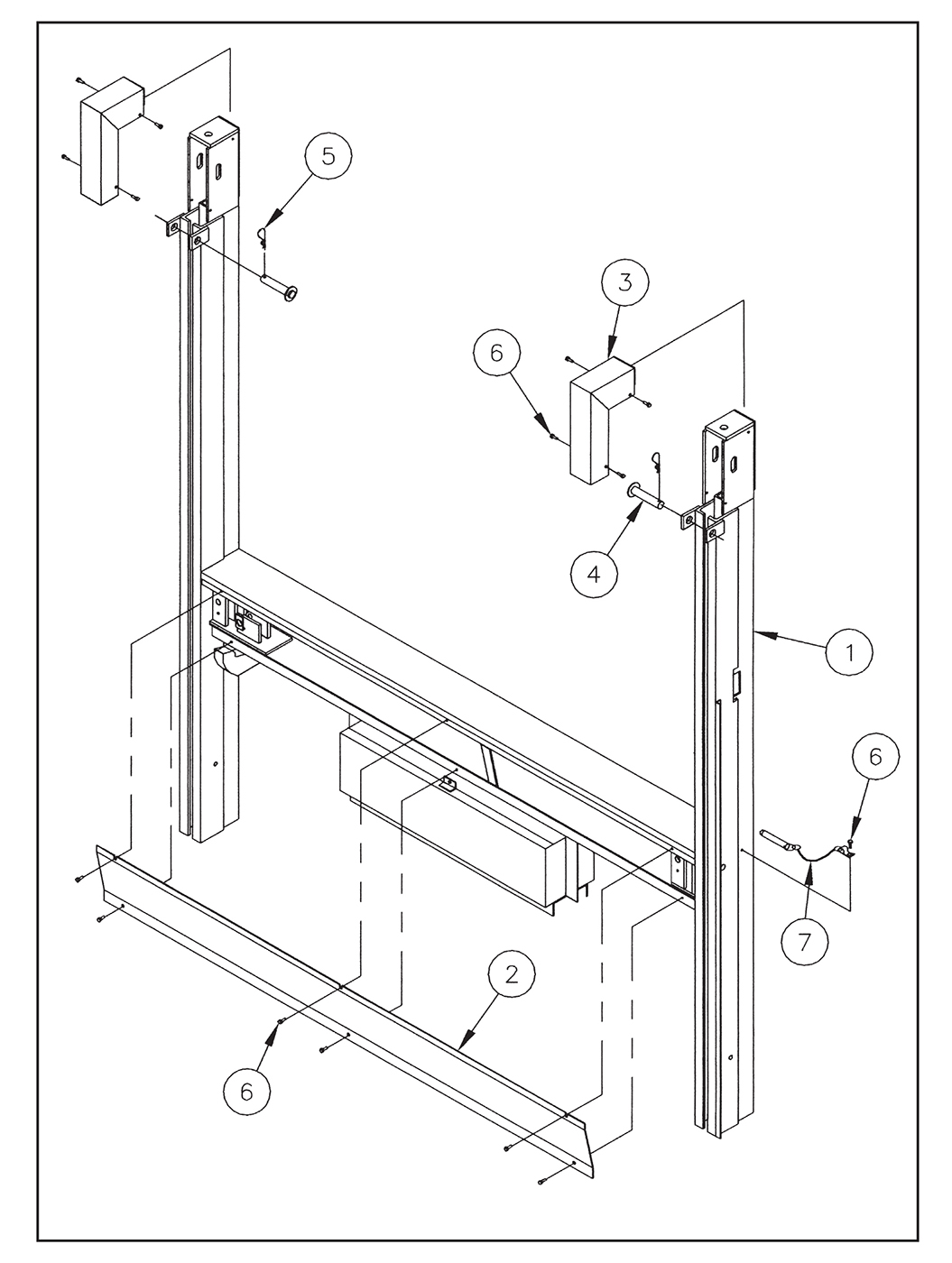

VL 30/40/50 Frame Assembly Diagram
Vl 30/40/50 Frame Assembly Diagram

VL 30/40/50 Frame Assembly Diagram

SKU: VL304050-FA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 31142-001 - 96 Inch Frame WeldmentThieman 31142-001 - 96 Inch Frame Weldment31142-001-THIE$2,364.67
1Thieman 31142-002 - 102 Inch Frame WeldmentThieman 31142-002 - 102 Inch Frame Weldment31142-002-THIE$2,364.67
2Thieman 2777-001 - 96 Inch Housing CoverThieman 2777-001 - 96 Inch Housing Cover2777-001-THIE$79.70
2Thieman 2777-002 - 102 Inch Housing CoverThieman 2777-002 - 102 Inch Housing Cover2777-002-THIE$79.70
3Thieman 31081 - Upper Sheave CoverThieman 31081 - Upper Sheave Cover31081-THIE$70.56
4Thieman 31036 - Slider Stop PinThieman 31036 - Slider Stop Pin31036-THIE$23.83
5Thieman 5700020 - Spring CotterThieman 5700020 - Spring Cotter5700020-THIE$2.98
6SELF TAPPING SCREW .25-20 X .75SELF TAPPING SCREW .25-20 X .755793010-THIE$0.76
7Thieman 3107140 - Safety Pin AssemblyThieman 3107140 - Safety Pin Assembly3107140-THIE$36.69

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
