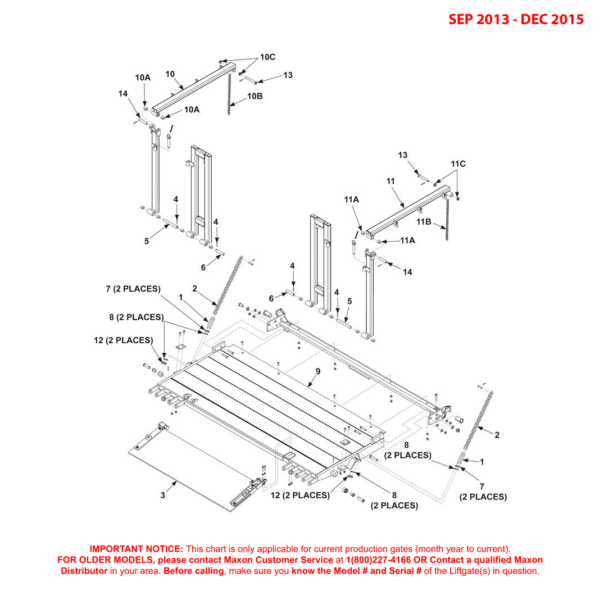

Maxon BMR-A-CS (Sep 2013 - Dec 2015) Aluminum Platform Assembly Diagram (1 OF 3)

Maxon BMR-A-CS (Sep 2013 – Dec 2015) Aluminum Platform Assembly Diagram (1 OF 3)

SKU: BMRACS-SEP13-DEC15-ALPFA-DG1 Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 282854-01 - U-BoltMaxon 282854-01 - U-Bolt282854-01-MAXO$6.29
2Maxon 282866-06 - Chain Galvanized .38 X 23.19 Inch LGMaxon 282866-06 - Chain Galvanized .38 X 23.19 Inch LG282866-06-MAXO$60.08
3Maxon 285526-03 - ARR 16 Inch BMRA-CS AL P/FMaxon 285526-03 - ARR 16 Inch BMRA-CS AL P/F285526-03-MAXO$1,288.95
4Maxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LGMaxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LG905033-1-MAXO$0.32
5Maxon 269017-02 - Pin .75" DIA X 7.5 LG SSTMaxon 269017-02 - Pin .75" DIA X 7.5 LG SST269017-02-MAXO$26.82
6Maxon 269017-01 - Pin .75" DIA X 4.38 LG SSTMaxon 269017-01 - Pin .75" DIA X 4.38 LG SST269017-01-MAXO$20.63
7Maxon 901011-9 - Nut Hex Head .500-13 UNC-2BMaxon 901011-9 - Nut Hex Head .500-13 UNC-2B901011-9-MAXO$0.38
8Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
9Maxon 269437-473 - P/F Weldment AL 80 X 42 BMRA-CSMaxon 269437-473 - P/F Weldment AL 80 X 42 BMRA-CS269437-473-MAXO$2,441.40
9Maxon 269437-483 - P/F Weldment AL 86 X 42 BMRAW-CSMaxon 269437-483 - P/F Weldment AL 86 X 42 BMRAW-CS269437-483-MAXO$2,544.75
11Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)260917-06-MAXO$8.60
11Maxon 265072 - Bearing Self Lube .75 ID X .375Maxon 265072 - Bearing Self Lube .75 ID X .375265072-MAXO$2.42
12Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
13Maxon 280324-100 - Pin Weldment .75 X 5.42 C/L SSTMaxon 280324-100 - Pin Weldment .75 X 5.42 C/L SST280324-100-MAXO$51.51
14Maxon 260877-100 - Pin .75 Inch DIA X 4.00 LG SSTMaxon 260877-100 - Pin .75 Inch DIA X 4.00 LG SST260877-100-MAXO$16.17
15Maxon 280335-01 - Corner Post Assembly LHMaxon 280335-01 - Corner Post Assembly LH280335-01-MAXO$254.67
15Maxon 282621-03 - Connector Bar Weldment 102 Inch GALVMaxon 282621-03 - Connector Bar Weldment 102 Inch GALV282621-03-MAXO$1,198.28
15Maxon 282621-04 - Connector Bar Weldment 96 Inch GALVMaxon 282621-04 - Connector Bar Weldment 96 Inch GALV282621-04-MAXO$1,153.43
16Maxon 050408-05 - Chain #4 X 5 LinksMaxon 050408-05 - Chain #4 X 5 Links050408-05-MAXO$2.78
16Maxon 202802 - Ball Lock PinMaxon 202802 - Ball Lock Pin202802-MAXO$33.06
16Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)260917-06-MAXO$8.60
16Maxon 280335-02 - Corner Post Assembly RHMaxon 280335-02 - Corner Post Assembly RH280335-02-MAXO$254.67
18Maxon 260181-01 - Bolt .75-10 UNC X 1.13 SMH X AL ZCMaxon 260181-01 - Bolt .75-10 UNC X 1.13 SMH X AL ZC260181-01-MAXO$17.51
19Maxon 902013-13 - Washer Flat 1/2 Inch SAE ZCMaxon 902013-13 - Washer Flat 1/2 Inch SAE ZC902013-13-MAXO$0.57
20Maxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LGMaxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LG905033-1-MAXO$0.32
21Maxon 905033-5 - 2.00 x .25 Inch OD Roll PinMaxon 905033-5 - 2.00 x .25 Inch OD Roll Pin905033-5-MAXO$0.41
22Maxon 900036-10 - Screw SOC 1/2-13 X 2-1/4 Inch GR8 ZCMaxon 900036-10 - Screw SOC 1/2-13 X 2-1/4 Inch GR8 ZC900036-10-MAXO$2.37
23Maxon 902013-15 - Flat Washer 5/8 Inch ZCMaxon 902013-15 - Flat Washer 5/8 Inch ZC902013-15-MAXO$0.44
24Maxon 902011-9 - Washer Lock .750 .188 THKMaxon 902011-9 - Washer Lock .750 .188 THK902011-9-MAXO$0.50
25Maxon 905200 - Bearing Self-Lube 1.25ID X 2.5LGMaxon 905200 - Bearing Self-Lube 1.25ID X 2.5LG905200-MAXO$49.58
26Maxon 285526-03 - ARR 16 Inch BMRA-CS AL P/FMaxon 285526-03 - ARR 16 Inch BMRA-CS AL P/F285526-03-MAXO$1,288.95
27Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)260917-06-MAXO$8.60
28Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)260917-06-MAXO$8.60
29Maxon 903136-05 - Flange Lock Nut .63-11 PLMaxon 903136-05 - Flange Lock Nut .63-11 PL903136-05-MAXO$1.55
30Maxon 900055-08 - Screw Hex Head .625-11UNC X 3 InchMaxon 900055-08 - Screw Hex Head .625-11UNC X 3 Inch900055-08-MAXO$2.40
32Maxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZCMaxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZC900040-5-MAXO$1.47
33Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
34Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
35Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
36Maxon 280027 - BracketMaxon 280027 - Bracket280027-MAXO$25.59
37Maxon 900035-5 - Screw Cap Hex Head - 0.5-13UNC-2A 2.00Maxon 900035-5 - Screw Cap Hex Head - 0.5-13UNC-2A 2.00900035-5-MAXO$1.50
38Maxon 280283-01 - Locking Round WedgeMaxon 280283-01 - Locking Round Wedge280283-01-MAXO$20.66
39Maxon 905305-01 - Bearing Self LUB 0.75ID X 1.20LGMaxon 905305-01 - Bearing Self LUB 0.75ID X 1.20LG905305-01-MAXO$15.84
40Maxon 280495-01 - Pin WeldmentMaxon 280495-01 - Pin Weldment280495-01-MAXO$25.07
41Maxon 900064-13 - Screw BTN .38-16 X 1.5Maxon 900064-13 - Screw BTN .38-16 X 1.5900064-13-MAXO$1.02
42Maxon 900065-06 - Screw SCT HD Cap .375-16 X 1.50 InchMaxon 900065-06 - Screw SCT HD Cap .375-16 X 1.50 Inch900065-06-MAXO$1.88
43Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
44Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
