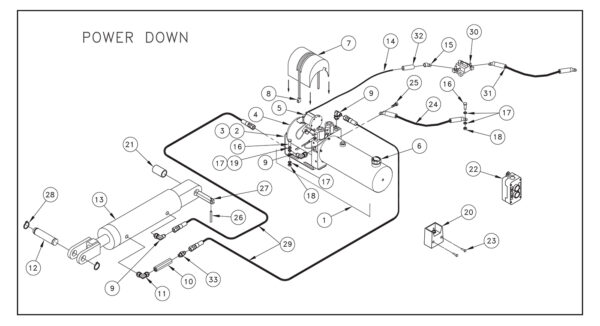

M16/20/25/30 Power Down Pump Assembly Diagram

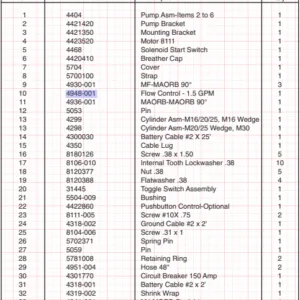

M16/20/25/30 Power Down Pump Assembly Diagram

SKU: M16TO30-PAPD-DG Category:

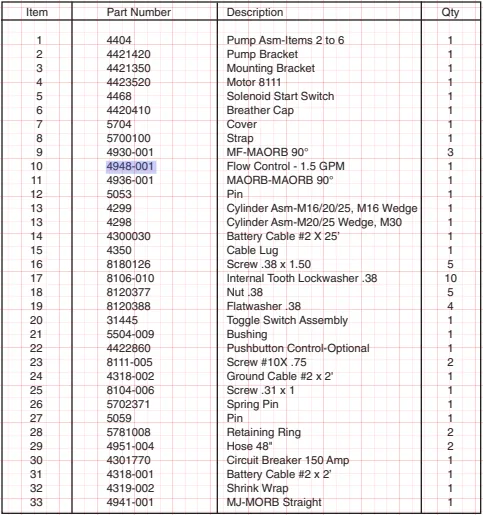

ID Image Title SKU Price Quantity Add to Cart
1Thieman 4404 - EST Pump AssemblyThieman 4404 - EST Pump Assembly4404-THIE$1,282.61
2Thieman 4421420 - Pump BracketThieman 4421420 - Pump Bracket4421420-THIE$73.43
3Thieman 4421350 - Mounting BracketThieman 4421350 - Mounting Bracket4421350-THIE$9.68
4Thieman 4423520 - Motor 8111Thieman 4423520 - Motor 81114423520-THIE$870.00
5Thieman 4468 - Motor Start SolenoidThieman 4468 - Motor Start Solenoid4468-THIE$58.31
6Thieman 4420410 - Breather Cap (0.75 Inch)Thieman 4420410 - Breather Cap (0.75 Inch)4420410-THIE$6.29
7Thieman 5705 - Solenoid CoverThieman 5705 - Solenoid Cover5704-THIE$21.87
8Thieman 5700100 - 32 Inch Tie StrapThieman 5700100 - 32 Inch Tie Strap5700100-THIE$1.49
9Theiman 4930-001 - 90 Degree Elbow (MJ-MAORB)Theiman 4930-001 - 90 Degree Elbow (MJ-MAORB)4930-001-THIE$7.41
10FLOW CONTROL - 1.5 GPM M16/20FLOW CONTROL - 1.5 GPM M16/204948-001-THIE$70.98
11Thieman 4936-001 - 90 Degree Elbow MAORB-MAORBThieman 4936-001 - 90 Degree Elbow MAORB-MAORB4936-001-THIE$5.93
12Thieman 5053 - PinThieman 5053 - Pin5053-THIE$19.82
13Thieman 4298 - New Style Cylinder For M30 M20 Wedge M25 WedgeThieman 4298 - New Style Cylinder For M30 M20 Wedge M25 Wedge4298-THIE$826.85
13Thieman 4299 - New Style Cylinder For M16/20/25 M16 WedgeThieman 4299 - New Style Cylinder For M16/20/25 M16 Wedge4299-THIE$690.12
14Thieman 4300030 - Battery Cable #2 x 25 FeetThieman 4300030 - Battery Cable #2 x 25 Feet4300030-THIE$193.58
15Thieman 4350 - Cable LugThieman 4350 - Cable Lug4350-THIE$5.34
17Thieman 8106-010 - Internal Tooth Lockwasher (0.38)Thieman 8106-010 - Internal Tooth Lockwasher (0.38)8106-010-THIE$0.35
18Thieman 8120377 - Nut (0.38-18)Thieman 8120377 - Nut (0.38-18)8120377-THIE$0.35
19Thieman 8120388 - Flat Washer (0.38)Thieman 8120388 - Flat Washer (0.38)8120388-THIE$0.35
20Thieman 31445 - Toggle Switch Assembly For Power-Down M GatesThieman 31445 - Toggle Switch Assembly For Power-Down M Gates31445-THIE$98.67
22Thieman 4422860 - Pushbutton ControlThieman 4422860 - Pushbutton Control4422860-THIE$185.00
23Thieman 8111-005 - Screw #10 x 0.75Thieman 8111-005 - Screw #10 x 0.758111-005-THIE$0.57
24Thieman 4318-002 - Ground Cable #2 x 2 FeetThieman 4318-002 - Ground Cable #2 x 2 Feet4318-002-THIE$17.89
25Thieman 8104-006 - Hex Head Screw (0.31 x 1 Inch)Thieman 8104-006 - Hex Head Screw (0.31 x 1 Inch)8104-006-THIE$0.57
26Thieman 5702371 - Spring Pin (0.25 x 1.50 Inches)Thieman 5702371 - Spring Pin (0.25 x 1.50 Inches)5702371-THIE$0.35
27Thieman 5059 - Pin (Arms to Frame Weld)Thieman 5059 - Pin (Arms to Frame Weld)5059-THIE$22.69
28Thieman 5781008 - Retaining RingThieman 5781008 - Retaining Ring5781008-THIE$0.90
29Thieman 4951-004 - Hose (0.25 x 48 Inches)Thieman 4951-004 - Hose (0.25 x 48 Inches)4951-004-THIE$56.36
30Thieman 4301770 - 150 AMP Circuit BreakerThieman 4301770 - 150 AMP Circuit Breaker4301770-THIE$88.80
31Thieman 4318-001 - Cable Assembly #2 x 2 FeetThieman 4318-001 - Cable Assembly #2 x 2 Feet4318-001-THIE$23.07
32Thieman 4319-002 - Heat ShrinkThieman 4319-002 - Heat Shrink4319-002-THIE$1.85
33Thieman 4941-001 - Straight Fitting MJ-MORBThieman 4941-001 - Straight Fitting MJ-MORB4941-001-THIE$3.33

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
