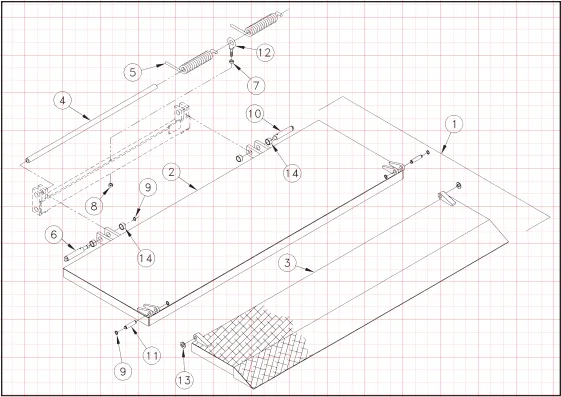

M16/20 Platform Assembly Diagram
M16/20 Platform Assembly Diagram - Image 2
M16/20 Platform Assembly Diagram
M16/20 Platform Assembly Diagram

M16/20 Platform Assembly Diagram

PARTS ORDERING PROCEDURE

INCLUDE THE FOLLOWING INFORMATION IN THE ORDER COMMENTS:

  1. Serial Number – Thieman liftgate serial numbers are located on the tag on the outside of the curb-side mounting plate.
  2. Model Number and Capacity.
  3. Platform size and Material – Steel or Aluminum.

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL AND SERIAL NUMBERS WILL NOT BE ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. CHECK QUANTITIES IN THE SECONDARY IMAGE.

Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 3423-001 - Platform Assembly 7236Thieman 3423-001 - Platform Assembly 72363423-001-THIE$892.88
1Thieman 3422-001 - Platform Assembly 7242Thieman 3422-001 - Platform Assembly 72423422-001-THIE$1,084.22
1Thieman 3423-002 - Platform Assembly 8436Thieman 3423-002 - Platform Assembly 84363423-002-THIE$892.88
1Thieman 3422-002 - Platform Assembly 8442Thieman 3422-002 - Platform Assembly 84423422-002-THIE$1,084.22
1Thieman 3421-001 - Platform Assembly 7232Thieman 3421-001 - Platform Assembly 72323421-001-THIE$892.88
1Thieman 3421-002 - Platform Assembly 8432Thieman 3421-002 - Platform Assembly 84323421-002-THIE$892.88
2Thieman 31224-001 - Main Platform Weldment for M16/M20 Series (72x36/72x42)Thieman 31224-001 - Main Platform Weldment for M16/M20 Series (72x36/72x42)31224-001-THIE$568.05
2Thieman 31224-002 - Main Platform Weldment for M16/M20 SeriesThieman 31224-002 - Main Platform Weldment for M16/M20 Series31224-002-THIE$568.05
2Thieman 31222-001 - Main Section Weld 7232Thieman 31222-001 - Main Section Weld 723231222-001-THIE$568.05
2Thieman 31222-002 - Main Section Weld 8432Thieman 31222-002 - Main Section Weld 843231222-002-THIE$568.05
3Thieman 31097-001 - Extension Weld 7236Thieman 31097-001 - Extension Weld 723631097-001-THIE$333.06
3Thieman 31155-001 - Extension Weld 7242Thieman 31155-001 - Extension Weld 724231155-001-THIE$351.60
3Thieman 31097-002 - Extension Weld 8436Thieman 31097-002 - Extension Weld 843631097-002-THIE$333.06
3Thieman 31155-002 - Extension Weld 8442Thieman 31155-002 - Extension Weld 844231155-002-THIE$376.70
3Thieman 31717-001 - Platform Extension Weldment Assembly 7232Thieman 31717-001 - Platform Extension Weldment Assembly 723231717-001-THIE$317.93
3PlaceholderThieman 31717-002 - Platform Extension Weldment 843231717-002-THIE$389.21
4Thieman 3023-001 - Spring Support TubeThieman 3023-001 - Spring Support Tube3023-001-THIE$44.22
5Thieman 5101260 - Closing SpringThieman 5101260 - Closing Spring5101260-THIE$35.07
6Thieman 5050 - PinThieman 5050 - Pin5050-THIE$38.61
7Thieman 8120378 - Nut (0.50-13)Thieman 8120378 - Nut (0.50-13)8120378-THIE$0.44
8Thieman 9414074 - Lock Nut (0.50-13)Thieman 9414074 - Lock Nut (0.50-13)9414074-THIE$0.44
9Thieman 5781017 - Retainer Ring Hinge PinThieman 5781017 - Retainer Ring Hinge Pin5781017-THIE$1.50
10Thieman 5051 - PinThieman 5051 - Pin5051-THIE$34.37
11Thieman 5056 - Hinge PinThieman 5056 - Hinge Pin5056-THIE$9.56
12Thieman 5711 - Shoulder Eye BoltThieman 5711 - Shoulder Eye Bolt5711-THIE$13.91
13Thieman 8107-011 - Flat Washer (0.62)Thieman 8107-011 - Flat Washer (0.62)8107-011-THIE$0.76
14Thieman 5504-022 - BushingThieman 5504-022 - Bushing5504-022-THIE$10.66
