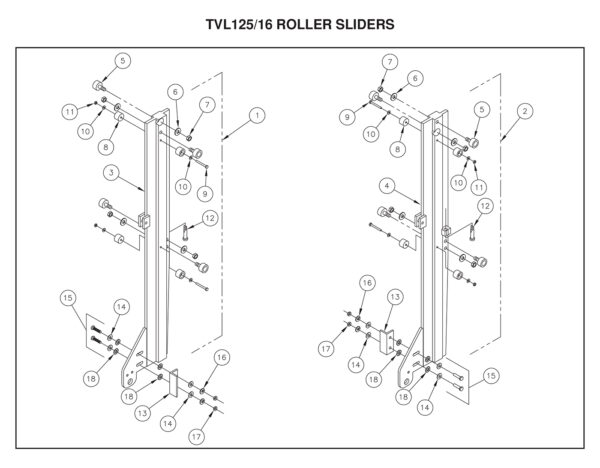

All-Aluminum TVL Series Roller Sliders Diagram
All Aluminum Tvl Series Roller Sliders Diagram

All-Aluminum TVL Series Roller Sliders Diagram

SKU: AATVL-RS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
5Thieman Tailgates 5506 - Platform Roller AssemblyThieman Tailgates 5506 - Platform Roller Assembly5506-THIE$50.17
6Thieman 8120396 - Flat Washer (0.50)Thieman 8120396 - Flat Washer (0.50)8120396-THIE$0.44
7Thieman 8103-011 - Lock Nut (0.50-20)Thieman 8103-011 - Lock Nut (0.50-20)8103-011-THIE$0.76
10Thieman 8120386 - Flat Washer (0.25) PTO Models ONLYThieman 8120386 - Flat Washer (0.25) PTO Models ONLY8120386-THIE$0.44
11Thieman 8103-019 - Nylon Lock Nut (0.25-20) PTO Models ONLYThieman 8103-019 - Nylon Lock Nut (0.25-20) PTO Models ONLY8103-019-THIE$0.44
13Thieman 2013 - Adjustment AngleThieman 2013 - Adjustment Angle2013-THIE$12.07
14Thieman 8120388 - Flat Washer (0.38)Thieman 8120388 - Flat Washer (0.38)8120388-THIE$0.44
16Thieman 8120382 - Lock Washer (0.38)Thieman 8120382 - Lock Washer (0.38)8120382-THIE$0.44
17Thieman 8120377 - Nut (0.38-18)Thieman 8120377 - Nut (0.38-18)8120377-THIE$0.44

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
