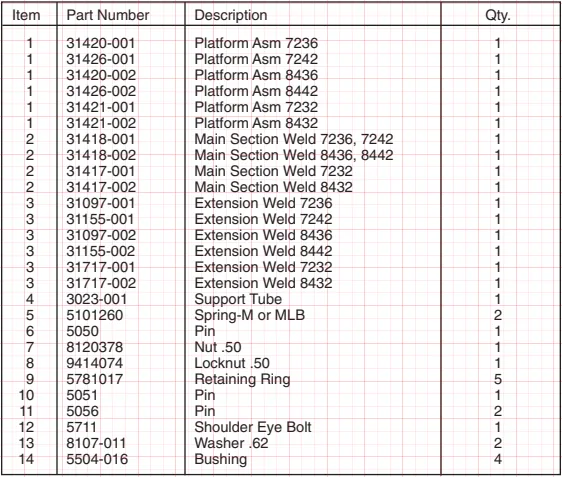

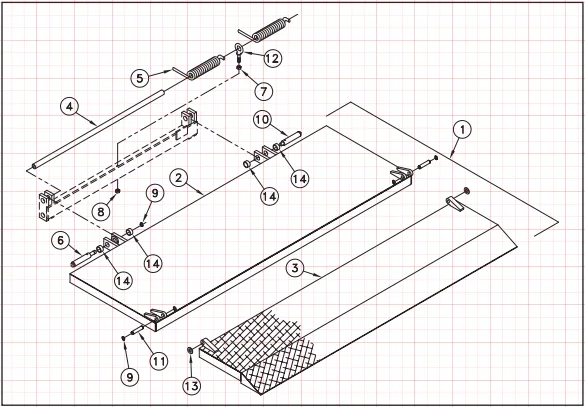

M25/30 Platform Assembly Diagram

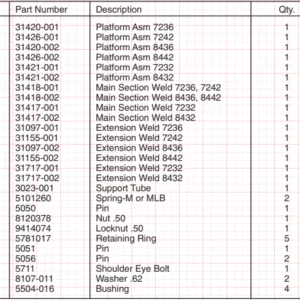

M25/30 Platform Assembly Diagram - Image 2
M25/30 Platform Assembly Diagram
M25/30 Platform Assembly Diagram

M25/30 Platform Assembly Diagram

PARTS ORDERING PROCEDURE

INCLUDE THE FOLLOWING INFORMATION IN THE ORDER COMMENTS:

  1. Serial Number – Thieman liftgate serial numbers are located on the tag on the outside of the curb-side mounting plate.
  2. Model Number and Capacity.
  3. Platform size and Material – Steel or Aluminum.

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL AND SERIAL NUMBERS WILL NOT BE ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. CHECK QUANTITIES IN THE SECONDARY IMAGE.

Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 31420-001 - Platform Assembly 7236Thieman 31420-001 - Platform Assembly 723631420-001-THIE$1,012.46
1Thieman 31426-001 - Platform Assembly 7242Thieman 31426-001 - Platform Assembly 724231426-001-THIE$1,179.89
1Thieman 31420-002 - Platform Assembly 8436Thieman 31420-002 - Platform Assembly 843631420-002-THIE$1,012.46
1Thieman 31426-002 - Platform Assembly 8442Thieman 31426-002 - Platform Assembly 844231426-002-THIE$1,179.89
1Thieman 31421-001 - Platform Assembly 7232Thieman 31421-001 - Platform Assembly 723231421-001-THIE$1,012.46
1Thieman 31421-002 - Platform Assembly 8432Thieman 31421-002 - Platform Assembly 843231421-002-THIE$1,012.46
2Thieman 31418-001 - Main Section Weldment 7236 | 7242Thieman 31418-001 - Main Section Weldment 7236 | 724231418-001-THIE$663.73
2Thieman 31418-002 - Main Section Weldment 8436 | 8442Thieman 31418-002 - Main Section Weldment 8436 | 844231418-002-THIE$663.73
2Thieman 31417-001 - Main Section Weldment 7232Thieman 31417-001 - Main Section Weldment 723231417-001-THIE$663.73
2Thieman 31417-002 - Main Section Weldment 8432Thieman 31417-002 - Main Section Weldment 843231417-002-THIE$663.73
3Thieman 31097-001 - Extension Weldment 7236Thieman 31097-001 - Extension Weldment 723631097-001-THIE$333.06
3Thieman 31155-001 - Extension Weldment 7242Thieman 31155-001 - Extension Weldment 724231155-001-THIE$351.60
3Thieman 31097-002 - Exension Weldment 8436Thieman 31097-002 - Exension Weldment 843631097-002-THIE$333.06
3Thieman 31155-002 - Extension Weldment 8442Thieman 31155-002 - Extension Weldment 844231155-002-THIE$376.70
4Thieman 3023-001 - Spring Support TubeThieman 3023-001 - Spring Support Tube3023-001-THIE$44.22
5Thieman 5101260 - M or MLB Closing SpringThieman 5101260 - M or MLB Closing Spring5101260-THIE$35.07
6Thieman 5050 - Heavy-Duty Pivot PinThieman 5050 - Heavy-Duty Pivot Pin5050-THIE$38.61
7Thieman 8120378 - Hex Nut (1/2"-13 UNC)Thieman 8120378 - Hex Nut (1/2"-13 UNC)8120378-THIE$0.44
8Thieman 9414074 - Lock Nut (0.50-13)Thieman 9414074 - Lock Nut (0.50-13)9414074-THIE$0.44
9Thieman 5781017 - Hinge Pin Retainer RingThieman 5781017 - Hinge Pin Retainer Ring5781017-THIE$1.50
10Thieman 5051 - Heavy Duty Pivot PinThieman 5051 - Heavy Duty Pivot Pin5051-THIE$34.37
11Thieman 5056 - Hinge PinThieman 5056 - Hinge Pin5056-THIE$9.56
12Thieman 5711 - Shoulder Eye BoltThieman 5711 - Shoulder Eye Bolt5711-THIE$13.91
13Thieman 8107-011 - 5/8 Inch Flat Washer (.62)Thieman 8107-011 - 5/8 Inch Flat Washer (.62)8107-011-THIE$0.76
14Thieman 5504-016 - Liftgate Pivot BushingThieman 5504-016 - Liftgate Pivot Bushing5504-016-THIE$10.66
