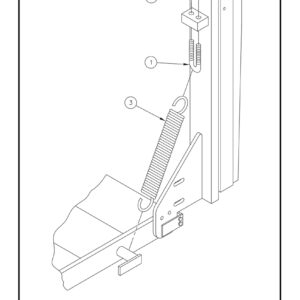

All-Aluminum TVL Series Spring Assembly Diagram

All-Aluminum TVL Series Spring Assembly Diagram

SKU: AATVL-SPRING-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 5793150 - U-Bolt (0.43-14)Thieman 5793150 - U-Bolt (0.43-14)5793150-THIE$8.75
2Thieman 9414073 - Lock Nut (0.44)Thieman 9414073 - Lock Nut (0.44)9414073-THIE$0.35
3Thieman 5101120 - Closing Assist SpringThieman 5101120 - Closing Assist Spring5101120-THIE$31.17

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
