| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Thieman 31412-001 - M25/30 Trunnion Weld | 31412-001-THIE | $550.11 | ||
| 1 | | Thieman 31412-002 - MLB 25/30 Trunnion Weld | 31412-002-THIE | $586.00 | ||
| 1 | | Thieman 31412-003 - Trunnion Weld with Pintle Bracket | 31412-003-THIE | $633.82 | ||
| 2 | | Thieman 21030 - Mounting Angle | 21030-THIE | $64.58 | ||
| 3 | | Thieman 31413 - M25/30 Idler Arm | 31413-THIE | $209.28 | ||
| 4 | | Thieman 31414 - M25/30 Lift Arm | 31414-THIE | $601.55 | ||
| 4 | | Thieman 31428 - M25/30 Lift Arm With Pintle Bracket | 31428-THIE | $898.72 | ||
| 5 | | Thieman 31416 - Standard M Pivot Bar Weld | 31416-THIE | $200.67 | ||
| 5 | | PIVOT BAR WELD - MLB25/30 and WDG | 31427-THIE | $200.67 | ||
| 6 | | Thieman 5701330 - Roller | 5701330-THIE | $23.98 | ||
| 7 | | Thieman 5031 - Pin | 5031-THIE | $12.35 | ||
| 8 | | Thieman 5781008 - Retaining Ring | 5781008-THIE | $1.20 | ||
| 9 | | Thieman 8271291 - Zerk Fitting | 8271291-THIE | $0.76 | ||
| 10 | | Thieman 5047 - Cylinder to Trunnion Pin | 5047-THIE | $23.02 | ||
| 11 | | Thieman 5702371 - Spring Pin (0.25 x 1.50 Inches) | 5702371-THIE | $0.44 | ||
| 12 | | Thieman 5075 - Pin | 5075-THIE | $25.29 | ||
| 13 | | Thieman 5504-005 - Bushing | 5504-005-THIE | $9.54 | ||
| 14 | | Thieman 5708-001 - Spring Pin (0.25 x 2 Inches) | 5708-001-THIE | $1.50 | ||
| 15 | | Thieman 5504-017 - Bushing | 5504-017-THIE | $18.89 | ||
| 16 | | Thieman 5504-016 - Liftgate Pivot Bushing | 5504-016-THIE | $10.66 |
M16/20/25/30 - MLB16/20/25/30 Liftgate Diagrams

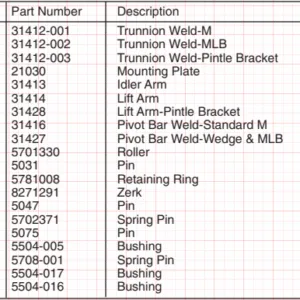

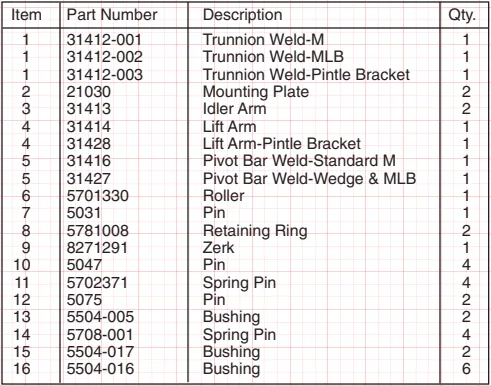

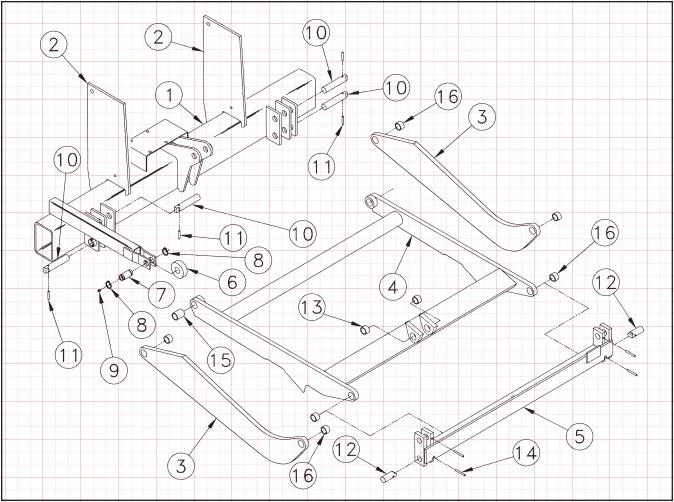

M25/30 Trunnion Lift Arm And Idler Arms Diagram
PARTS ORDERING PROCEDURE
INCLUDE THE FOLLOWING INFORMATION IN THE ORDER COMMENTS:
- Serial Number – Thieman liftgate serial numbers are located on the tag on the outside of the curb-side mounting plate.
- Model Number and Capacity.
- Platform size and Material – Steel or Aluminum.
LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL AND SERIAL NUMBERS WILL NOT BE ELIGIBLE FOR RETURN.
PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. CHECK QUANTITIES IN THE SECONDARY IMAGE.
