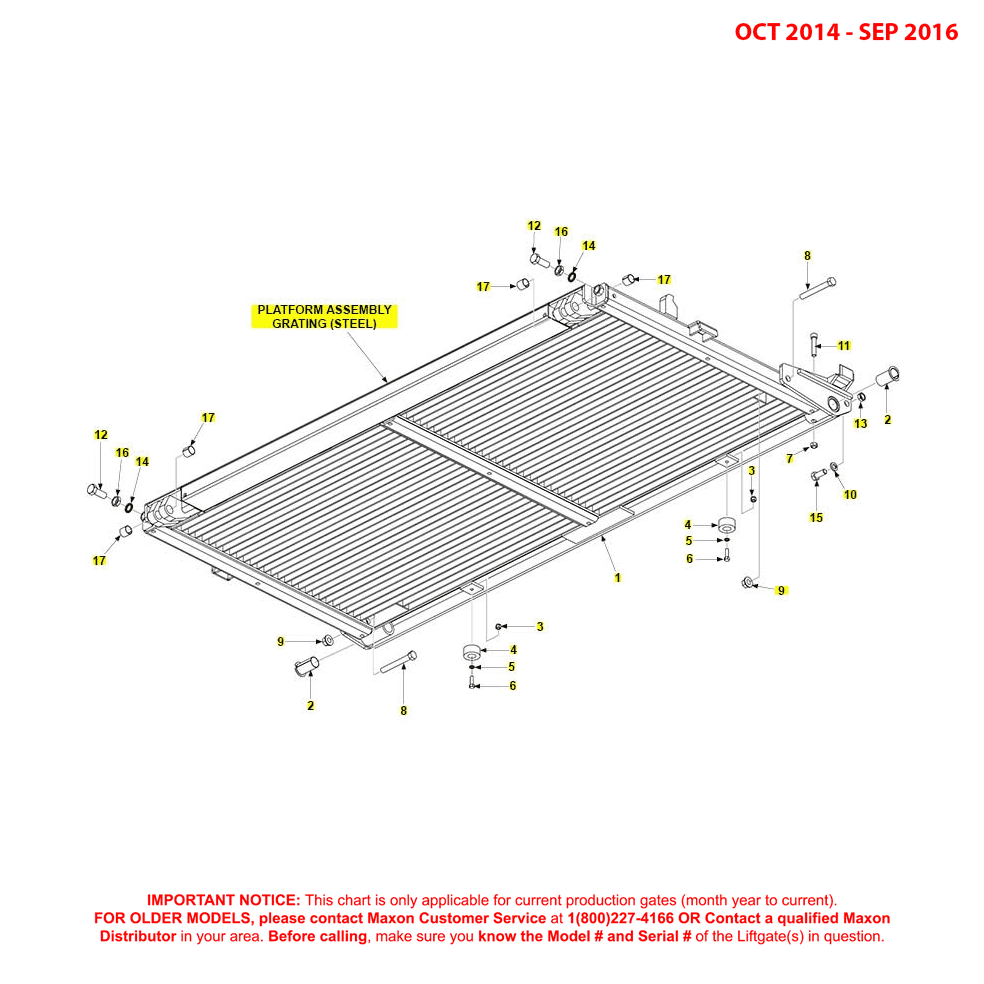

Maxon BMR (Oct 2014 - Sep 2016) Steel Platform Assembly Grating Diagram

Maxon BMR (Oct 2014 – Sep 2016) Steel Platform Assembly Grating Diagram

SKU: BMR-OCT14-SEP16-SPFAG-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 288970-613g - P/F Assembly BMRBW66G ST85X42Maxon 288970-613g - P/F Assembly BMRBW66G ST85X42288970-613G-MAXO$4,867.20
2Maxon 908007-05 - Bearing Flanged 1.25 SHFT 1.5 Inch LGMaxon 908007-05 - Bearing Flanged 1.25 SHFT 1.5 Inch LG908007-05-MAXO$4.47
3Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
4Maxon 253516 - Bumper 2 X 1 Inch RubberMaxon 253516 - Bumper 2 X 1 Inch Rubber253516-MAXO$21.08
5Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
6Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZCMaxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC900014-5-MAXO$0.72
9Maxon 903136-05 - Flange Lock Nut .63-11 PLMaxon 903136-05 - Flange Lock Nut .63-11 PL903136-05-MAXO$1.55
10Maxon 902011-8 - Washer Lock .625 .156 Inch THKMaxon 902011-8 - Washer Lock .625 .156 Inch THK902011-8-MAXO$0.30
11Maxon 900036-11 - Screw SOCHD .5-13UNC-2A 2.50 InchMaxon 900036-11 - Screw SOCHD .5-13UNC-2A 2.50 Inch900036-11-MAXO$3.59
12Maxon 900038-7 - Screw Cap 3/4-10 X 2 GR8 ZCMaxon 900038-7 - Screw Cap 3/4-10 X 2 GR8 ZC900038-7-MAXO$6.50
15Maxon 900055-02 - Screw Hex Head .625-11UNC X 1.5 InchMaxon 900055-02 - Screw Hex Head .625-11UNC X 1.5 Inch900055-02-MAXO$1.94
17Maxon 253657 - Bearing Self Lube 1 X 1 InchMaxon 253657 - Bearing Self Lube 1 X 1 Inch253657-MAXO$17.85

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
