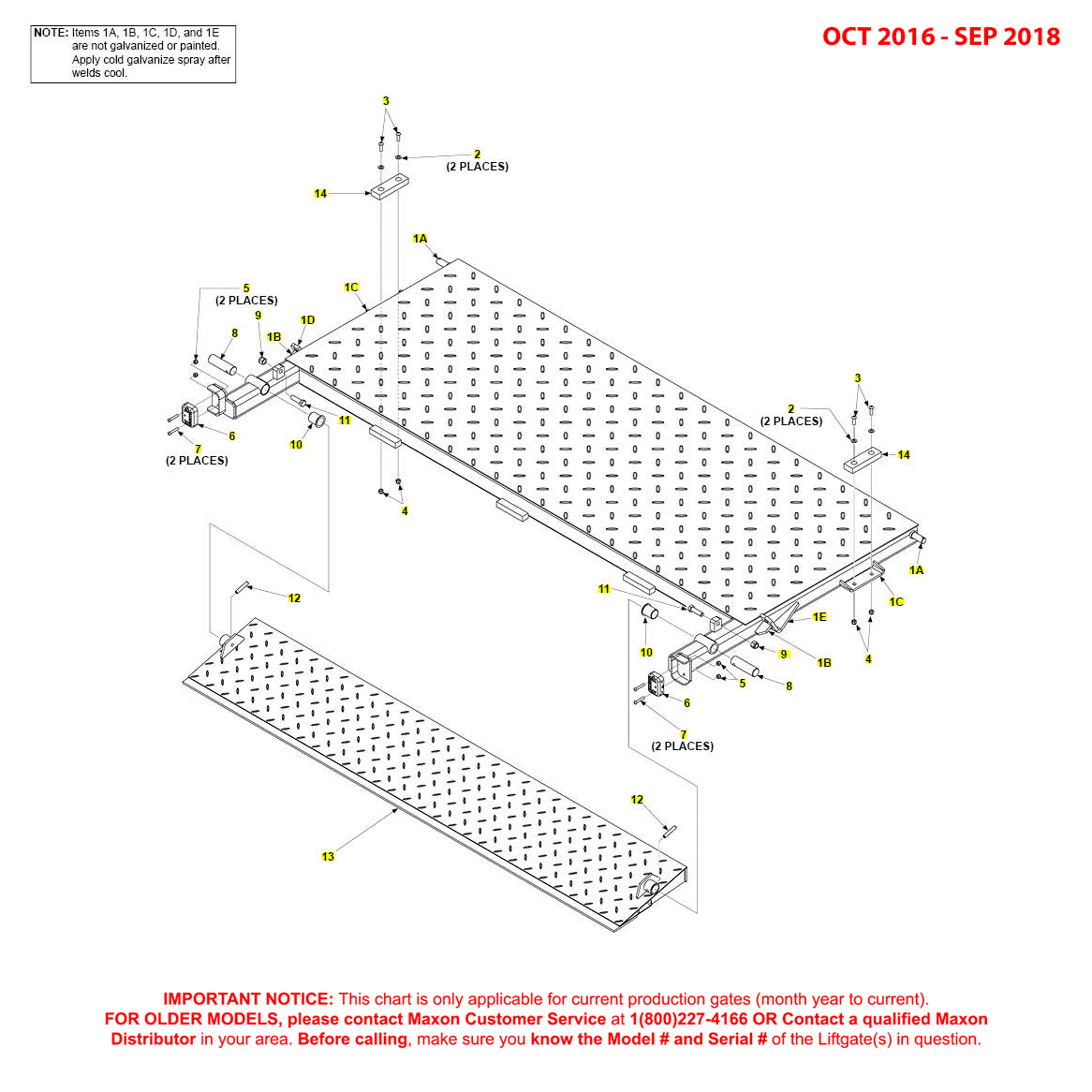

Maxon BMR (Oct 2016 - Sep 2018) Steel Flipover With Auto Cart Stop Diagram

Maxon BMR (Oct 2016 – Sep 2018) Steel Flipover With Auto Cart Stop Diagram

SKU: BMR-OCT16-SEP18-SFO-ACS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 296618-02G - F/O Assembly BMRW66G 85 X 30+12 ACSMaxon 296618-02G - F/O Assembly BMRW66G 85 X 30+12 ACS296618-02G-MAXO$3,741.08
1Maxon 280194 - Pin Chain SupportMaxon 280194 - Pin Chain Support280194-MAXO$18.12
1Maxon 287579-01 - Bracket Bumper HolderMaxon 287579-01 - Bracket Bumper Holder287579-01-MAXO$57.93
1Maxon 288944-01 - Bracket U-Bolt Holder LH F/OMaxon 288944-01 - Bracket U-Bolt Holder LH F/O288944-01-MAXO$10.25
1Maxon 288944-02 - Bracket U-Bolt Holder RH F/OMaxon 288944-02 - Bracket U-Bolt Holder RH F/O288944-02-MAXO$10.25
2Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
3Maxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch AlloyMaxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch Alloy900001-4-MAXO$1.97
4Maxon 901001 - Nut - Nylon - 5/16-18 ZincMaxon 901001 - Nut - Nylon - 5/16-18 Zinc901001-MAXO$0.18
5Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SSMaxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS903137-01-MAXO$0.48
7Maxon 900719-09 - Screw Button .25-20 X 1.5 Inch SSMaxon 900719-09 - Screw Button .25-20 X 1.5 Inch SS900719-09-MAXO$0.54
8Maxon 281369-02 - Pin 1.13 DIA X 3.82 Inch LG C/StopMaxon 281369-02 - Pin 1.13 DIA X 3.82 Inch LG C/Stop281369-02-MAXO$16.71
10Maxon 261837-12 - Bushing FLNG PLST 1.121 D X 1.50 InchMaxon 261837-12 - Bushing FLNG PLST 1.121 D X 1.50 Inch261837-12-MAXO$18.35
12Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
14Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 HoleMaxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole225278-02-MAXO$24.86

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
