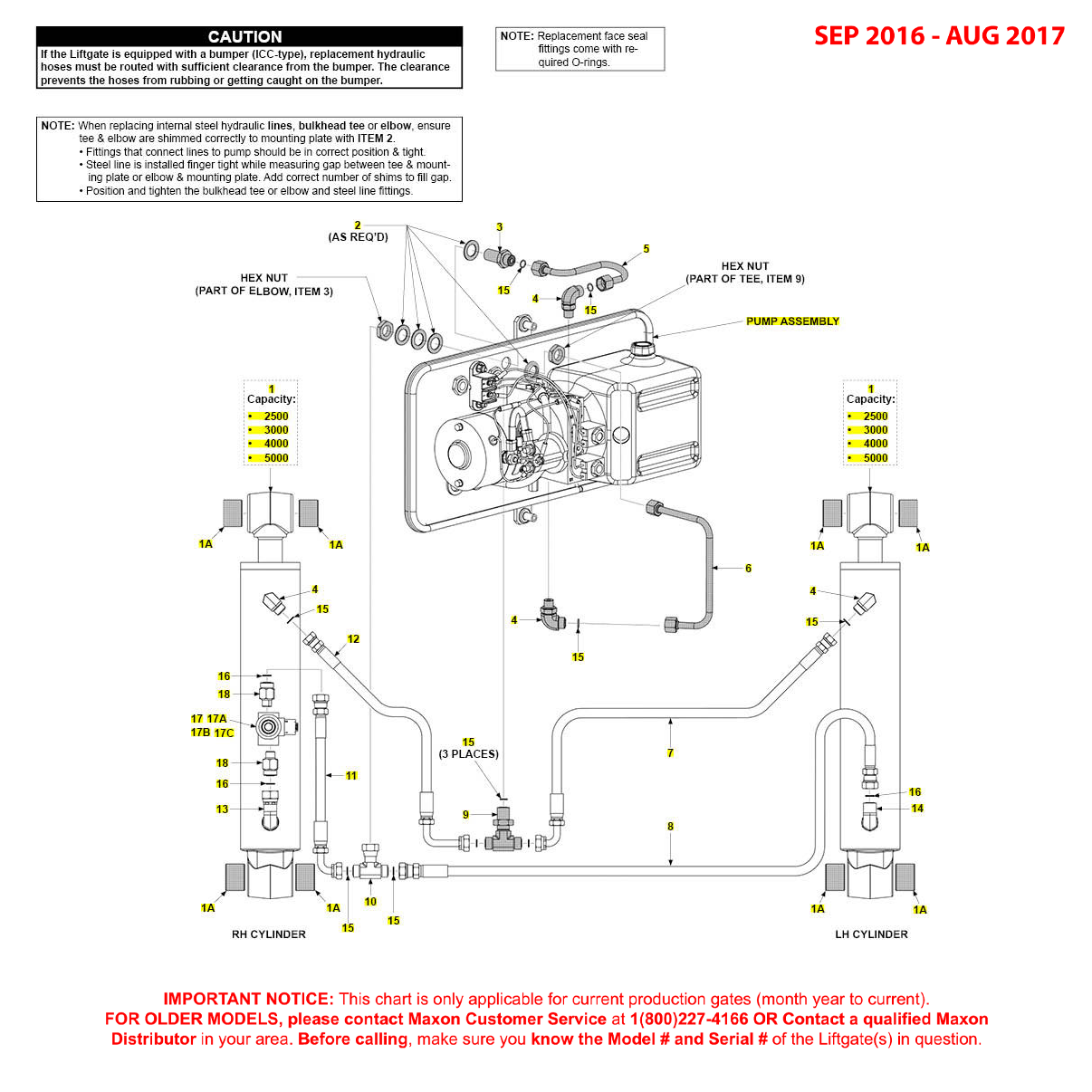

Maxon GPTWR (Sep 2016 - Aug 2017) Power Down Hydraulic Systems Diagram

Maxon GPTWR (Sep 2016 – Aug 2017) Power Down Hydraulic Systems Diagram

SKU: GPTWR-SEP16-AUG17-PD-HYDS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 266038-01 - CYL 3.00 BR X 10 Inch ST. S/LB/BushMaxon 266038-01 - CYL 3.00 BR X 10 Inch ST. S/LB/Bush266038-01-MAXO$766.92
0Maxon 266039-01 - CYL 3.5 BR X 10 Inch ST.S/LB/BushMaxon 266039-01 - CYL 3.5 BR X 10 Inch ST.S/LB/Bush266039-01-MAXO$1,291.88
0Maxon 296860-01 - Pump Assembly HD PD 12V GPTBMaxon 296860-01 - Pump Assembly HD PD 12V GPTB296860-01-MAXO$2,305.88
1Maxon 266037-01 - CYL 2.75 BR X 10 Inch ST. S/LB/BUSH AssemblyMaxon 266037-01 - CYL 2.75 BR X 10 Inch ST. S/LB/BUSH Assembly266037-01-MAXO$675.60
1Maxon 905112-04 - 1-3/8 x 1.5 Inch Self Lube BearingMaxon 905112-04 - 1-3/8 x 1.5 Inch Self Lube Bearing905112-04-MAXO$20.01
1Maxon 905114-02 - Bearing Self Lube 1-1/4 X 1Maxon 905114-02 - Bearing Self Lube 1-1/4 X 1905114-02-MAXO$14.84
2Maxon 902028-12 - Washer Flat - 1.250 OD X .757 IDMaxon 902028-12 - Washer Flat - 1.250 OD X .757 ID902028-12-MAXO$0.77
3Maxon 906744-01 - Bulkhead Union SAE#6 ORFS M-MMaxon 906744-01 - Bulkhead Union SAE#6 ORFS M-M906744-01-MAXO$12.99
4Maxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-MMaxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-M906707-01-MAXO$8.45
5Maxon 282874-01 - Tube Assembly Up Line GPTB PumpMaxon 282874-01 - Tube Assembly Up Line GPTB Pump282874-01-MAXO$29.48
6Maxon 282892-01 - Tube Assembly Down Line GPT PumpMaxon 282892-01 - Tube Assembly Down Line GPT Pump282892-01-MAXO$42.69
7Maxon 298265-01 - H/Assembly .38HP SAE 6-6 LH DN Line 95 Inch LGMaxon 298265-01 - H/Assembly .38HP SAE 6-6 LH DN Line 95 Inch LG298265-01-MAXO$60.75
8Maxon 298266-01 - H/Assembly .38HP SAE 8-6 LH Up Line 102 Inch LGMaxon 298266-01 - H/Assembly .38HP SAE 8-6 LH Up Line 102 Inch LG298266-01-MAXO$63.42
9Maxon 906810-01 - Tee - Bulkhead Branch - ORFS #6Maxon 906810-01 - Tee - Bulkhead Branch - ORFS #6906810-01-MAXO$30.57
10Maxon 906802-01 - Tee - SW Nut Branch - ORFS #6Maxon 906802-01 - Tee - SW Nut Branch - ORFS #6906802-01-MAXO$18.39
11Maxon 298263-01 - H/Assembly .38HP SAE 8-6 F-F 42.5 LGMaxon 298263-01 - H/Assembly .38HP SAE 8-6 F-F 42.5 LG298263-01-MAXO$36.98
12Maxon 298264-01 - H/Assembly .38HP SAE 6-6 36 LGMaxon 298264-01 - H/Assembly .38HP SAE 6-6 36 LG298264-01-MAXO$36.68
13Maxon 906763-01 - Connector Elbow .812-16 X .75-16 InchMaxon 906763-01 - Connector Elbow .812-16 X .75-16 Inch906763-01-MAXO$16.34
14Maxon 906704-01 - Elbow - NPSC - SEA #8 F/S O-R M-MMaxon 906704-01 - Elbow - NPSC - SEA #8 F/S O-R M-M906704-01-MAXO$34.83
15Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFSMaxon 906712-02 - Tube End O-Ring #6 3/8 ORFS906712-02-MAXO$1.30
16Maxon 906712-03 - Tube End O-Ring #8 1/2 ORFSMaxon 906712-03 - Tube End O-Ring #8 1/2 ORFS906712-03-MAXO$1.39
17Maxon 282999-01 - Lock Valve Assembly 12VMaxon 282999-01 - Lock Valve Assembly 12V282999-01-MAXO$133.85
17Maxon 282999-02 - Lock Valve Assembly 24VMaxon 282999-02 - Lock Valve Assembly 24V282999-02-MAXO$139.25
17Maxon 906840-01 - Cartridge Valve and Nut 2W2PMaxon 906840-01 - Cartridge Valve and Nut 2W2P906840-01-MAXO$102.23
17Maxon 906840-02 - Nut Cartridge ValveMaxon 906840-02 - Nut Cartridge Valve906840-02-MAXO$5.42
17Maxon 906841-01 - Solenoid Coil 12 VDCMaxon 906841-01 - Solenoid Coil 12 VDC906841-01-MAXO$54.45
17Maxon 906841-02 - Solenoid Coil 24 VDCMaxon 906841-02 - Solenoid Coil 24 VDC906841-02-MAXO$49.65
18Maxon 906762-01 - Connector M-M (0.562-18 X 0.812-16 Inches)Maxon 906762-01 - Connector M-M (0.562-18 X 0.812-16 Inches)906762-01-MAXO$5.45

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
