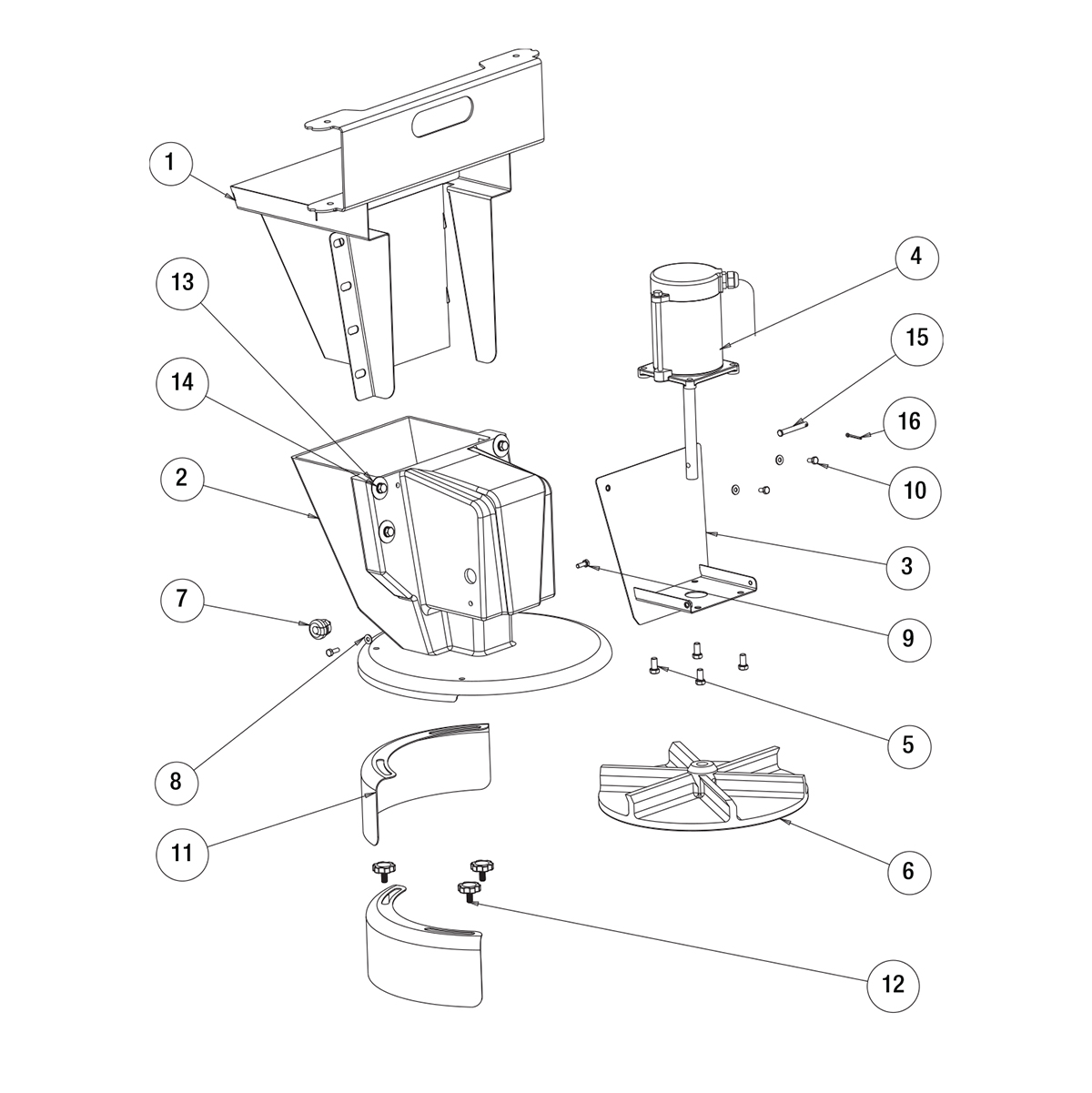

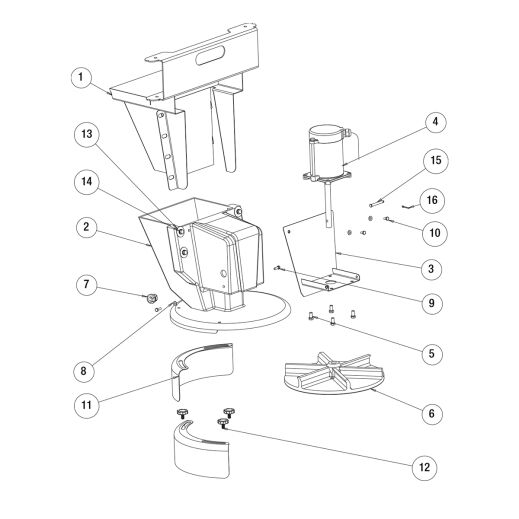

SaltDogg SHPE2500/CH [Discontinued] Standard Chute Assembly Diagram

ID	Title	SKU	Price
2	SaltDogg 3030930 - Adjustable Outer Chute SHPE2500/PRO2000	3030930-BUY	$255.05
3	SaltDogg 3030908 - Chute Motor Mount For SHPE2500/PRO2000	3030908-BUY	$61.16
4	Replacement .5 HP 12 VDC Spinner Motor for SaltDogg PRO Series Spreaders	3030907-BUY	$371.55
5	SaltDogg FCS038016075SS - SST Hex Head Cap Screw 3/8-16 x 3/4	FCS038016075SS-BUY	$0.90
6	Replacement 14 Inch CW Poly Spinner for SaltDogg Spreader	3012393-BUY	$72.66
7	SaltDogg 3025065 - Cable Strain Relief Bushing	3025065-BUY	$0.69
8	SaltDogg FWF025063007SS - 1/4 Inch SAE SST Flat Washer	FWF025063007SS-BUY	$0.06
9	SaltDogg FCS025020075SS - SST HHCS 1/4-20 x 3/4	FCS025020075SS-BUY	$0.21
10	SCREW HEX HD CAP 1/4-20 X .500in SST	3008549-BUY	$0.15
12	SaltDogg 3031755 - Plastic Head SST Thumb Screw (3/8-16 x 1/2)	3031755-BUY	$5.31
13	WASHER FENDER 3/8in 1.5in OD X .062 SST	3007115-BUY	$0.26
14	SaltDogg FWL038069009SS - 3/8 SST Split Lock Washer	FWL038069009SS-BUY	$0.56
15	SaltDogg 3007113 - Clevis Pin (5/16 Diameter x 2-1/2 Inches)	3007113-BUY	$1.07
16	SaltDogg 3014994 - SST Cotter Pin (1/8 x 1 Inch)	3014994-BUY	$0.24

Part Diagrams are for illustration purposes only, and may not directly represent the quantity of each designated parts’ SKU. A part simply being listed here does NOT guarantee stock, so call ahead if this is a concern.
