- Gain complete control of your air control functions with this 5-way, 3-position, stackable air control valve with a push button auxiliary function.
- Many applications, including PTO and Hoist, can be controlled through the flexible design.
- Movement of the handle in either direction allows controlled pressure output to work ports ‘A’ or ‘B’ respectively, in a proportional manner, allowing feathering.

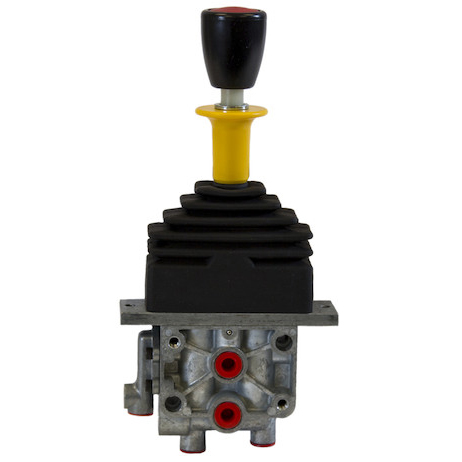

Buyers Products K70 Series Single Lever Air Control Valves give you complete control of your pneumatic functions with this 5-way (PTO, raise, lower, inlet and exhaust functions), 3-position (raise, lower and neutral), stackable air control valve with a push button auxiliary function.
Many applications including PTO and Hoist can be controlled through the flexible design. Movement of the handle in either direction allows controlled pressure output to work ports A or B respectively, in a proportional manner, allowing feathering.
| Number Of Ports | 5 |
| Rated Pressure | 125 PSI |
| Series | K70 |
| Valve Actuation | Manual Lever |
| Valve Action | Feather Down/Center Detent |
| Spring To Neutral / Deadman Control (Y/N) | Yes |
| Valve Primary Application | PTO/Hoist Control |
| Port Type | Brass Push Lock Fittings |
| Feathering | Yes |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 645 |
| Sell Pack Type | Box |
| Shipping Weight | 3 Lbs |
| UPC | 724920153560 |
Product Common Use: Hoists, Dump Trailers, Dump Applications
