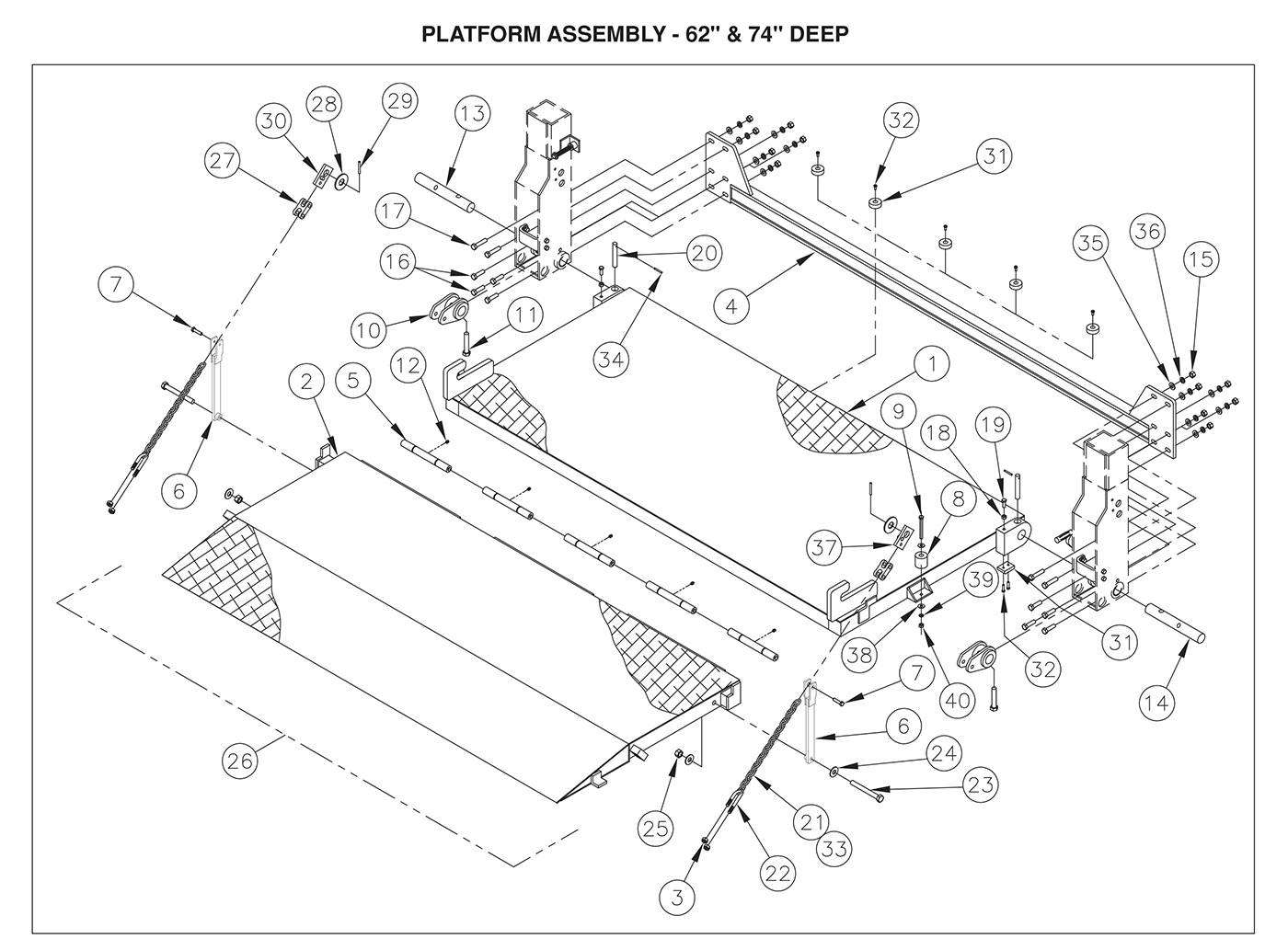

TDR 44/55/66 Deep Platform Assembly (62-74 Inches) Diagram
Tdr 44/55/66 Deep Platform Assembly (62 74 Inches) Diagram

TDR 44/55/66 Deep Platform Assembly (62-74 Inches) Diagram

SKU: TDR445566-6274DPA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 31171-001 - Main Platform Section 8062Thieman 31171-001 - Main Platform Section 806231171-001-THIE$1,527.31
1Thieman 31171-002 - Main Platform Section 8662Thieman 31171-002 - Main Platform Section 866231171-002-THIE$1,527.31
1TDR PLAT. MAIN SECT. (8074 8086)TDR PLAT. MAIN SECT. (8074 8086)31171-003-THIE$1,527.31
1TDR PLAT. MAIN SECT. (8674 8686)TDR PLAT. MAIN SECT. (8674 8686)31171-004-THIE$1,527.31
2Thieman 31180-001 - Platform Extension 8062Thieman 31180-001 - Platform Extension 806231180-001-THIE$1,453.39
2Thieman 31180-002 - Platform Extension 8662Thieman 31180-002 - Platform Extension 866231180-002-THIE$1,453.39
2Thieman 31180-003 - Platform Extension 8074Thieman 31180-003 - Platform Extension 807431180-003-THIE$1,453.39
2Thieman 31180-004 - Platform Extension 8674Thieman 31180-004 - Platform Extension 867431180-004-THIE$1,453.39
3Thieman 9414073 - Lock Nut (0.44)Thieman 9414073 - Lock Nut (0.44)9414073-THIE$0.44
4Thieman 31160-001 - Slider Support (96 Inches)Thieman 31160-001 - Slider Support (96 Inches)31160-001-THIE$412.64
4Thieman 31160-002 - Slider Support (102 Inches)Thieman 31160-002 - Slider Support (102 Inches)31160-002-THIE$434.11
5Thieman 3106270 - Treadplate Hinge AssemblyThieman 3106270 - Treadplate Hinge Assembly3106270-THIE$37.28
6Thieman 31375-001 - Fold LeverThieman 31375-001 - Fold Lever31375-001-THIE$49.07
8Thieman 5702290 - SnubberThieman 5702290 - Snubber5702290-THIE$5.98
9Thieman 5792010 - Screw (0.312-18 x 2.25 Inches)Thieman 5792010 - Screw (0.312-18 x 2.25 Inches)5792010-THIE$0.76
10Thieman 31174 - Closing BracketThieman 31174 - Closing Bracket31174-THIE$112.02
11Thieman 8102-007 - Hex Head Screw (0.625-11 x 3.25 Inches)Thieman 8102-007 - Hex Head Screw (0.625-11 x 3.25 Inches)8102-007-THIE$6.72
12Thieman 8271291 - Zerk FittingThieman 8271291 - Zerk Fitting8271291-THIE$0.76
13Thieman 5034-001 - Left Hand Platform Pivot PinThieman 5034-001 - Left Hand Platform Pivot Pin5034-001-THIE$86.10
14Thieman 5034-002 - Right Hand Platform Pivot PinThieman 5034-002 - Right Hand Platform Pivot Pin5034-002-THIE$86.10
15Thieman 9414074 - Lock Nut (0.50-13)Thieman 9414074 - Lock Nut (0.50-13)9414074-THIE$0.44
16Thieman 8100-011 - Hex Head Screw (0.50-13 x 1.75 Inches)Thieman 8100-011 - Hex Head Screw (0.50-13 x 1.75 Inches)8100-011-THIE$1.50
17Thieman 8100-009 - Hex Head Screw (0.50-13 x 2.25 Inches)Thieman 8100-009 - Hex Head Screw (0.50-13 x 2.25 Inches)8100-009-THIE$2.98
18Thieman 8103-007 - Jam Nut (0.375-16)Thieman 8103-007 - Jam Nut (0.375-16)8103-007-THIE$0.76
19Thieman 8180122 - Bolt (0.38-16 x 1 Inch)Thieman 8180122 - Bolt (0.38-16 x 1 Inch)8180122-THIE$0.76
20Thieman 5068 - Locking PinThieman 5068 - Locking Pin5068-THIE$21.80
21Thieman 4100356 - 74 Inch Platform ChainThieman 4100356 - 74 Inch Platform Chain4100356-THIE$72.00
21Thieman 4100357 - 62 Inch Platform ChainThieman 4100357 - 62 Inch Platform Chain4100357-THIE$64.58
22Thieman 5793150 - U-Bolt (0.43-14)Thieman 5793150 - U-Bolt (0.43-14)5793150-THIE$11.08
23Thieman 8102-001 - Grade 8 Screw (0.62-11 x 5 Inches)Thieman 8102-001 - Grade 8 Screw (0.62-11 x 5 Inches)8102-001-THIE$8.38
24Thieman 8130999 - Flat Washer (0.62)Thieman 8130999 - Flat Washer (0.62)8130999-THIE$0.76
25Thieman 8103-001 - Lock Nut (0.62-11)Thieman 8103-001 - Lock Nut (0.62-11)8103-001-THIE$1.50
26Thieman 3420-001 - Platform Assembly 8062Thieman 3420-001 - Platform Assembly 80623420-001-THIE$2,608.94
26Thieman 3420-002 - Platform Assembly 8662Thieman 3420-002 - Platform Assembly 86623420-002-THIE$2,608.94
26Thieman 3420-003 - Platform Assembly 8074Thieman 3420-003 - Platform Assembly 80743420-003-THIE$2,608.94
26Thieman 3420-004 - Platform Assembly 8674Thieman 3420-004 - Platform Assembly 86743420-004-THIE$2,608.94
27Thieman 5725 - Double Clevis LinkThieman 5725 - Double Clevis Link5725-THIE$23.81
28Thieman 8107-010 - 1 Inch Flat Washer (2 Inch OD)Thieman 8107-010 - 1 Inch Flat Washer (2 Inch OD)8107-010-THIE$1.50
29Thieman 5708-001 - Spring Pin (0.25 x 2 Inches)Thieman 5708-001 - Spring Pin (0.25 x 2 Inches)5708-001-THIE$1.50
30Thieman 31524-001 - Left Hand Chain AnchorThieman 31524-001 - Left Hand Chain Anchor31524-001-THIE$18.34
31Thieman 5701 - Rubber BumperThieman 5701 - Rubber Bumper5701-THIE$2.98
32Thieman 8449646 - Self-Tapping Screw (0.25-20 x 0.75 Inch)Thieman 8449646 - Self-Tapping Screw (0.25-20 x 0.75 Inch)8449646-THIE$0.76
33Thieman 5702300 - Nylon Chain Cover (Sold by Feet)Thieman 5702300 - Nylon Chain Cover (Sold by Feet)5702300-THIE$6.28
34Thieman 5708-004 - Spring Pin (0.188 x 1.50 Inches)Thieman 5708-004 - Spring Pin (0.188 x 1.50 Inches)5708-004-THIE$0.76
35Thieman 8120396 - Flat Washer (0.50)Thieman 8120396 - Flat Washer (0.50)8120396-THIE$0.44
36Thieman 8120384 - Lock Washer (0.50)Thieman 8120384 - Lock Washer (0.50)8120384-THIE$0.44
37Thieman 31524-002 - Right Hand Chain AnchorThieman 31524-002 - Right Hand Chain Anchor31524-002-THIE$18.34
38Thieman 8120386 - Flat Washer (0.25) PTO Models ONLYThieman 8120386 - Flat Washer (0.25) PTO Models ONLY8120386-THIE$0.44
39Thieman 8120214 - Lock Washer (0.31)Thieman 8120214 - Lock Washer (0.31)8120214-THIE$0.44
40Thieman 9413447 - Lock Nut (0.31-18)Thieman 9413447 - Lock Nut (0.31-18)9413447-THIE$0.44

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
