| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Thieman 4423520 - Motor 8111 | 4423520-THIE | $435.00 | ||
| 2 | | Thieman 4439 - Pump And Reservoir Assembly (2650 PSI) | 4439-THIE | $1,083.58 | ||
| 3 | | Thieman 4420410 - Breather Cap (0.75 Inch) | 4420410-THIE | $8.38 | ||
| 4 | | Thieman 4480 - Buss Bar | 4480-THIE | $15.35 | ||
| 5 | | Thieman 4421520 - Bearing | 4421520-THIE | $37.11 | ||
| 6 | | Thieman 4421530 - Seal | 4421530-THIE | $18.97 | ||
| 7 | | Thieman 8109-012 - Hex Head Screw (0.25-20 x 0.75 Inch) | 8109-012-THIE | $0.44 | ||
| 8 | | Thieman 4421420 - Pump Bracket | 4421420-THIE | $71.20 | ||
| 9 | | Thieman 4468 - Motor Start Solenoid | 4468-THIE | $62.18 | ||
| 10 | | Thieman 4421600 - O-Ring | 4421600-THIE | $5.96 | ||
| 11 | | Thieman 4452 - Valve Coil | 4452-THIE | $92.69 | ||
| 12 | | Thieman 4445 - Solenoid Valve Assembly (Lower) | 4445-THIE | $187.98 | ||
| 13 | | Thieman 4438 - Solenoid Valve Assembly (Raise) | 4438-THIE | $225.66 | ||
| 14 | | Thieman 4457 - Reservoir (4.50 x 10 Inches) | 4457-THIE | $145.90 |

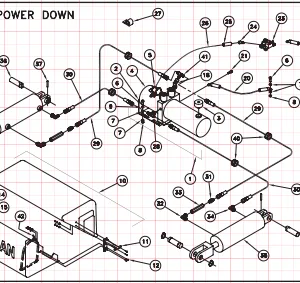

LRST-40 Liftgate Diagrams

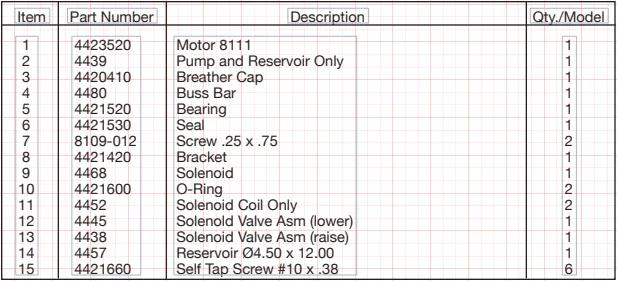

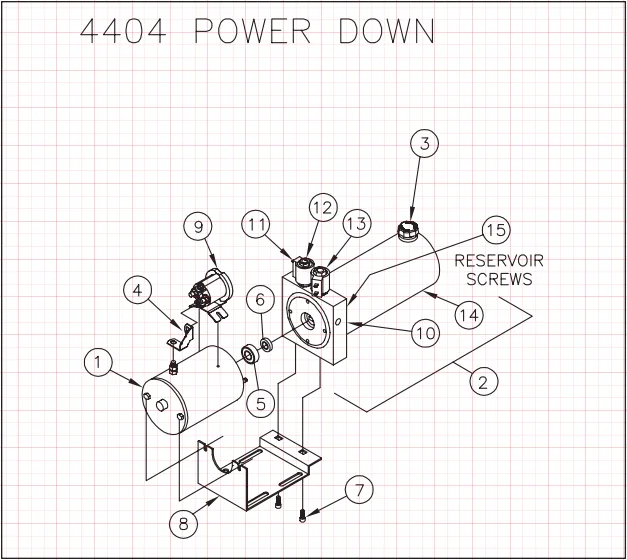

Thieman 4404 Pump Assembly Diagram
PARTS ORDERING PROCEDURE
INCLUDE THE FOLLOWING INFORMATION IN THE ORDER COMMENTS:
- Serial Number – Thieman liftgate serial numbers are located on the tag on the outside of the curb-side mounting plate.
- Model Number and Capacity.
- Platform size and Material – Steel or Aluminum.
LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL AND SERIAL NUMBERS WILL NOT BE ELIGIBLE FOR RETURN.
PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. CHECK QUANTITIES IN THE SECONDARY IMAGE.Â
PARTS ORDERING PROCEDURE
INCLUDE THE FOLLOWING INFORMATION IN THE ORDER COMMENTS:
- Serial Number – Thieman liftgate serial numbers are located on the tag on the outside of the curb-side mounting plate.
- Model Number and Capacity.
- Platform size and Material – Steel or Aluminum.
