| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 3 |  | Tommy Gate 12912 - Platform Link Kit | 12912-TOMM | $541.67 | ||
| 7 | | Tommy Gate 12913 - Replacement Upper Arm with Pins and Keepers (Left) | 12913-TOMM | $709.95 | ||
| 8 | | Tommy Gate 12914 - Replacement Upper Arm with Pins and Keepers (Right) | 12914-TOMM | $711.90 | ||
| 9 | | Tommy Gate 12915 - Replacement 1-1/4 Inch Lift Arm Pivot Pin with Keeper | 12915-TOMM | $71.36 | ||
| 10 | | Tommy Gate 12916 - Replacement Power Unit Cover | 12916-TOMM | $154.83 | ||
| 11 | | Tommy Gate 12917 - Replacement Platform Coil Springs | 12917-TOMM | $344.93 | ||
| 12 | | Tommy Gate 12918 - Replacement 1-1/4 Inch Frame Pin with Keepers | 12918-TOMM | $98.28 | ||
| 13 | | Tommy Gate 12919 - Replacement 2 Ga. Copper Lug | 12919-TOMM | $6.30 | ||
| 14 | | Tommy Gate 931 - Replacement Tuckunder Latch Spring | 931-TOMM | $9.45 | ||
| 16 | | Tommy Gate 12920 - Replacement Upper Arm Tube Assembly | 12920-TOMM | $463.05 | ||
| 17 | | Tommy Gate 13558 - Replacement Raise Solenoid-4 Post | 13558-TOMM | $85.68 | ||
| 18 | | Tommy Gate 12921 - Replacement Pump and Motor 3qt.** 2500/3000# Tuckunder | 12921-TOMM | $1,260.00 | ||
| 18 | | Tommy Gate 14605 - Replacement 24V Pump and Motor 3qt.** 2500/3000# Tuckunder | 14605-TOMM | $1,436.40 | ||
| 19 | | Tommy Gate 12923 - Replacement Lift Cylinder | 12923-TOMM | $831.60 | ||
| 20 | | Tommy Gate 11445 - Replacement Vent Plug Plastic | 11445-TOMM | $6.30 | ||
| 20 | | Tommy Gate 989 - Replacement Vent Plug | 989-TOMM | $6.30 | ||
| 23 | | Tommy Gate 12924 - Replacement Lift Arm with Pins and Keepers (Left) | 12924-TOMM | $552.83 | ||
| 24 | | Tommy Gate 12925 - Replacement Lift Arm with Pins and Keepers (Right) | 12925-TOMM | $552.83 | ||
| 26 | | Tommy Gate 11283 - Replacement 04MORB x 04MJIC x 90 Degree Cyl. Elbow | 11283-TOMM | $9.93 | ||
| 29 | | Tommy Gate 12926 - Replacement Tuckunder Latch Handle | 12926-TOMM | $54.50 | ||
| 30 | | Tommy Gate 11950 - Replacement Poppet Check Valve | 11950-TOMM | $42.06 | ||
| 31 | | Tommy Gate 12927 - Replacement Hydraulic Hose - Lift Cylinder Long (Left) | 12927-TOMM | $114.03 | ||
| 32 | | Tommy Gate 12938 - Replacement Roller Arm | 12938-TOMM | $173.25 | ||
| 33 | | Tommy Gate 12929 - Replacement Hydraulic Hose-Lift Cylinder Long (Right) | 12929-TOMM | $76.23 | ||
| 34 | | Tommy Gate 13073 - Replacement 04MORB x 04FORB x 90 Degree Cyl. Elbow | 13073-TOMM | $15.60 | ||
| 35 | | Tommy Gate 12931 - Replacement Hydraulic Hose-Pump/Lift Cylinder Short (Right) | 12931-TOMM | $66.00 | ||
| 36 | | Tommy Gate 12932 - Replacement Tuckunder Circuit Board | 12932-TOMM | $297.68 | ||
| 37 | | Tommy Gate 11803 - Replacement 2 Ga. 2 Wire Electric Cable with Lugs-33 ft. | 11803-TOMM | $406.35 | ||
| 38 | | Tommy Gate 12933 - Replacement Plastic Tank (3qt.) | 12933-TOMM | $95.93 | ||
| 39 | | Tommy Gate 13559 - Replacement Compact Fixed Control | 13559-TOMM | $329.18 | ||
| 40 | | Tommy Gate 974 - Replacement Tee Fitting (Pump and Motor) | 974-TOMM | $34.65 | ||
| 42 | | Tommy Gate 958 - Replacement 12V Motor (MOTOR ONLY) | 958-TOMM | $441.00 | ||
| 43 | | Tommy Gate 12934 - Replacement 1-1/4 Inch Lift Arm Pin with Keeper | 12934-TOMM | $59.22 | ||
| 44 | | Tommy Gate 11947 - Replacement 2Way/2Pos Solenoid Assembly with Connector | 11947-TOMM | $141.92 | ||
| 44 | | Tommy Gate 11948 - Replacement 4Way/2Pos Solenoid Assembly with Connector | 11948-TOMM | $198.45 | ||
| 45 | | Tommy Gate 12749 - Replacement Flow Control (7/16 x 7/16 x 0.078) | 12749-TOMM | $75.60 | ||
| 47 | | Tommy Gate 11804 - Replacement 200 Amp Manual Reset Circuit Breaker | 11804-TOMM | $115.29 | ||
| 48 | | Tommy Gate 12935 - Lift Cylinder Seal Repair Kit | 12935-TOMM | $176.40 | ||
| 49 | | Tommy Gate 12936 - Lift Cylinder Shaft Repair Kit | 12936-TOMM | $904.05 | ||
| 53 | | Tommy Gate 12938 - Replacement Roller Arm | 12938-TOMM | $173.25 | ||
| 55 | | Tommy Gate 12941 - Replacement Roller Arm Wheel Kit | 12941-TOMM | $39.69 | ||
| 59 |  | Tommy Gate 922 - Replacement Extension Spring | 922-TOMM | $14.55 | ||
| 75 | | Tommy Gate 12930 - Replacement Lower Arm Link | 12930-TOMM | $245.70 | ||
| 84 | | Tommy Gate 12955 - Replacement Snubber Kit | 12955-TOMM | $130.73 | ||
| 85 | | Tommy Gate 14348 - Replacement Power Unit Cover Seal | 14348-TOMM | $16.38 | ||
| 86 | | Tommy Gate 14349 - Replacement Power Unit Cover Latch | 14349-TOMM | $12.77 | ||
| 96 | | Tommy Gate 14041 - Replacement Passive Latch | 14041-TOMM | $76.55 |
![Tommy Gate Tuckunder Series TKT Diagram (2 OF 2) [Flatbed / Stake / Van]](https://iteparts.com/wp-content/uploads/2024/11/tg-2500-3000-tkun-dg2.jpg)
![Tommy Gate Tuckunder Series Tkt Diagram (2 Of 2) [flatbed / Stake / Van]](https://iteparts.com/wp-content/uploads/2024/11/tg-2500-3000-tkun-dg2-300x300.jpg)
Tommy Gate Tuckunder Series Diagrams

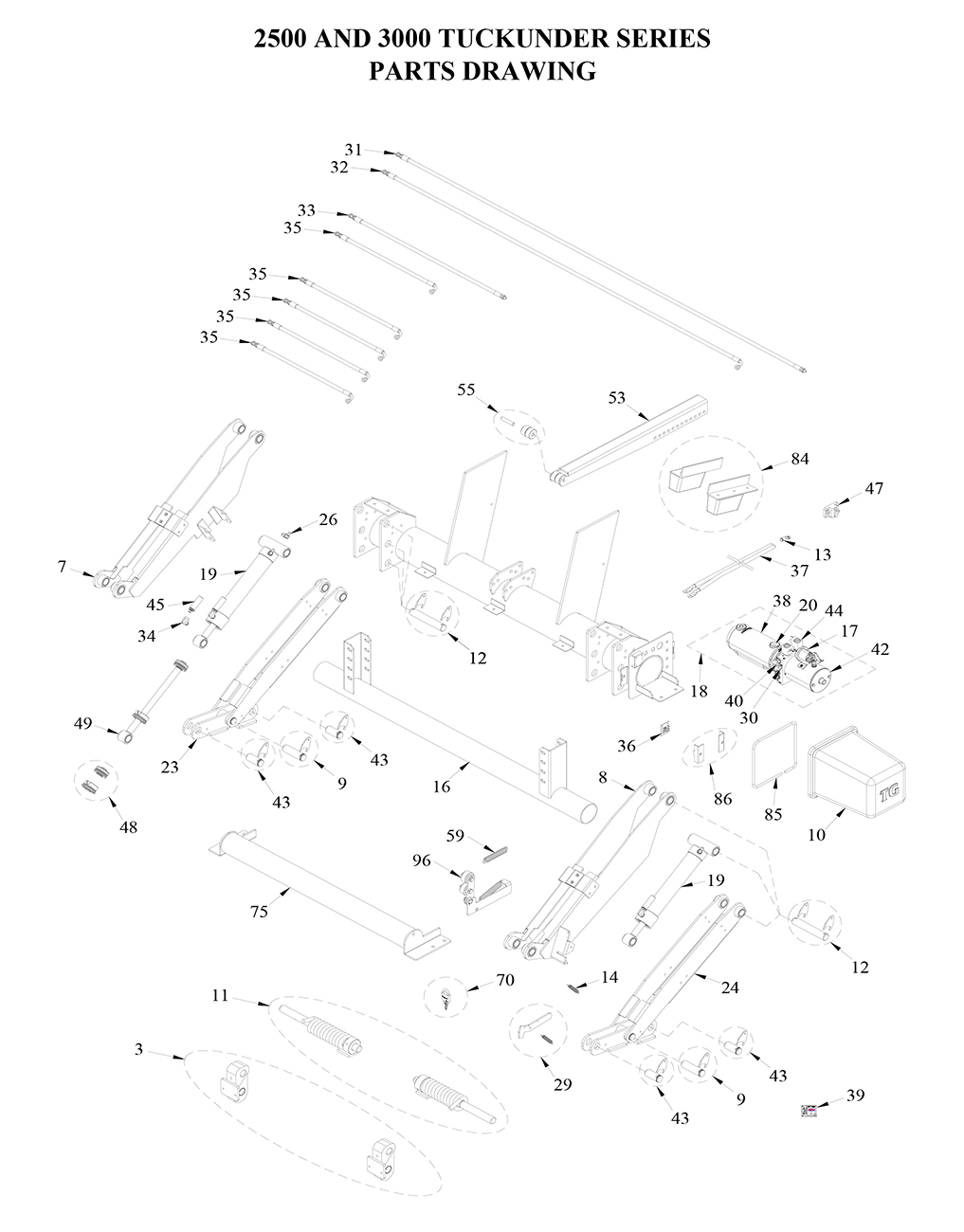

Tommy Gate Tuckunder Series TKT Diagram (2 OF 2) [Flatbed / Stake / Van]
LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.
PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
TKT models address all the concerns a liftgate operator faces. With self-leveling and power down functions, the lift is simple to use and reliable. The large platforms easily accommodate pallet-sized loads. And, the wide-arm, dual-cylinder design assures sturdy and consistent lifting action.
For use with Flatbeds, Stake Bodies and Vans.
