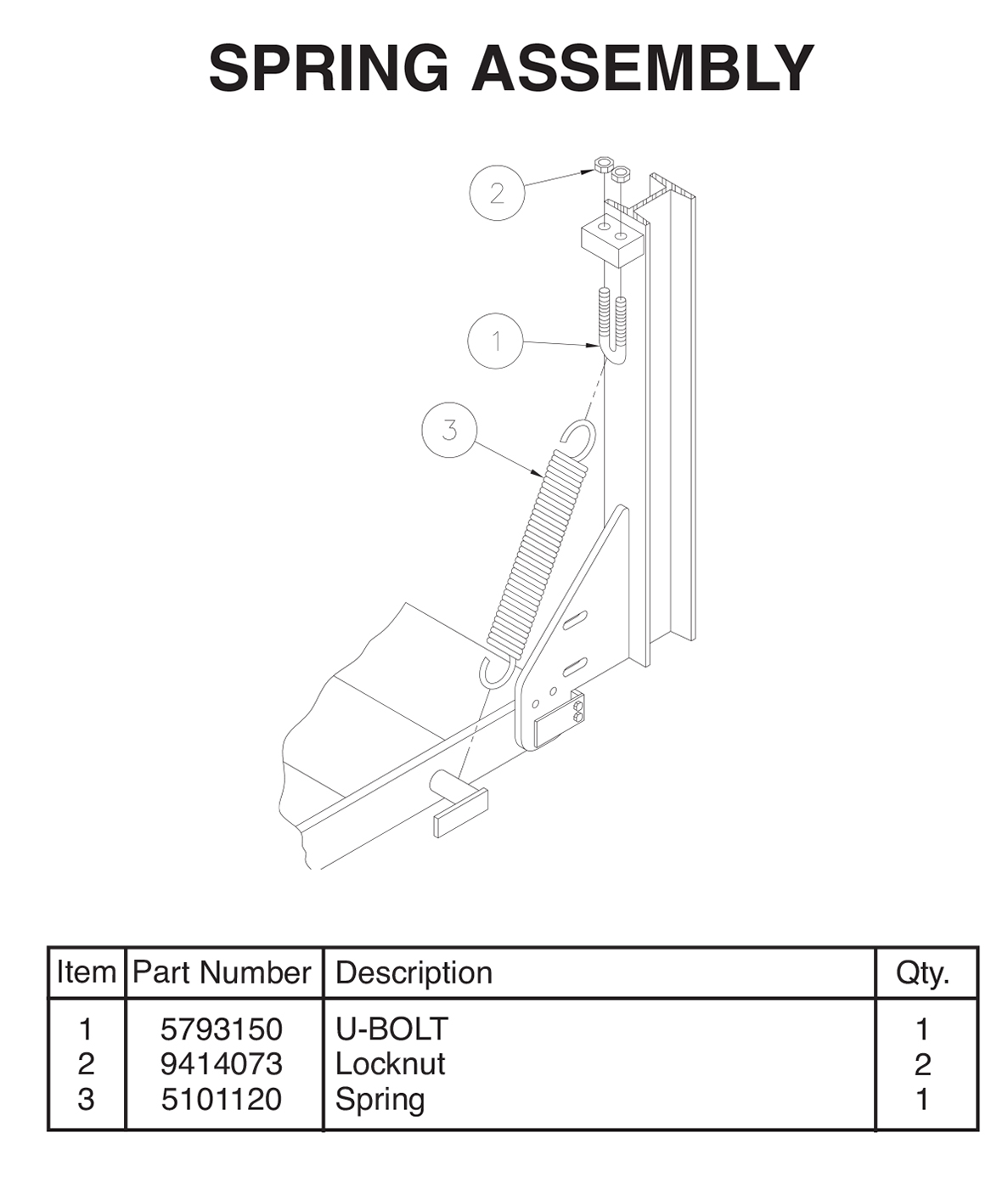

TVLR125/16 And TVLR125A/16A Spring Assembly Diagram

Tvlr125/16 And Tvlr125a/16a Spring Assembly Diagram

TVLR125/16 And TVLR125A/16A Spring Assembly Diagram

SKU: TVLR125-125A-16-16A-SPRING-DG Category: Uncategorized Brand: Thieman Tailgates

Options
Description

ID	Image	Title	SKU	Price	Quantity	Add to Cart
1		Thieman 5793150 - U-Bolt (0.43-14)	5793150-THIE	$11.08
2		Thieman 9414073 - Lock Nut (0.44)	9414073-THIE	$0.44
3		Thieman 5101120 - Closing Assist Spring	5101120-THIE	$35.33

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
