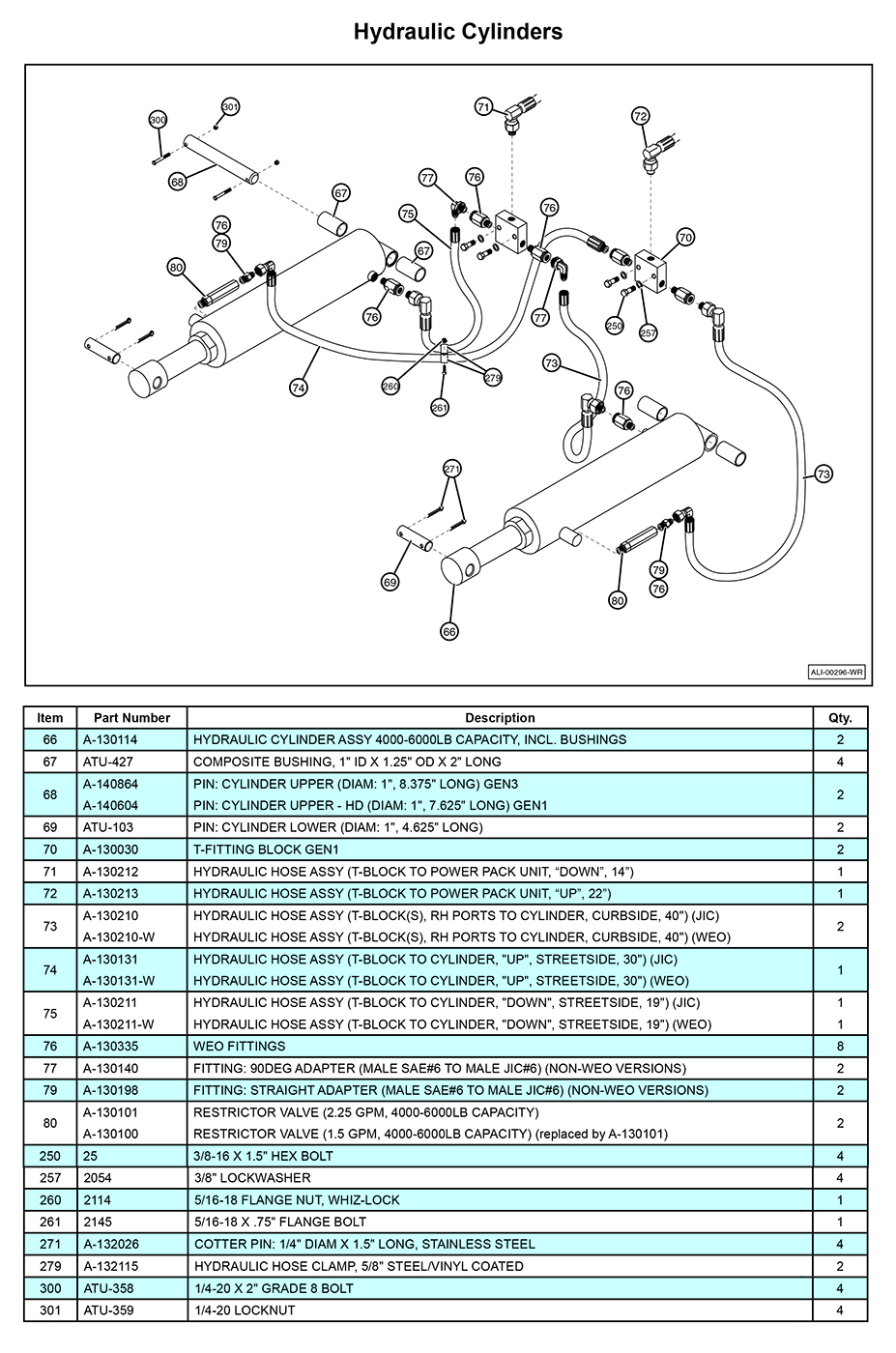

Anthony MTU-GLR-5-6 Hydraulic Cylinders Diagram (1 OF 2)

Anthony MTU-GLR-5-6 Hydraulic Cylinders Diagram (1 OF 2)

SKU: MTU-GLR-5000-6000-HC-DG1 Category:
ID Image Title SKU Price Quantity Add to Cart
66Anthony Liftgates LogoAnthony A-130114 - Complete Cylinder 4-1/2 Inch OD 10-3/4 Inch StrokeA-130114-ANT$706.20
67Anthony Liftgates LogoAnthony ATU-427 - Cylinder Pin BushingATU-427-ANT$22.17
68Anthony Liftgates LogoAnthony A-140864 - Upper Cylinder PinA-140864-ANT$32.38
69Anthony Liftgates LogoAnthony ATU-103 - Rod Cylinder End PinATU-103-ANT$35.67
70Anthony Liftgates LogoAnthony A-130030 - T-Fitting BlockA-130030-ANT$58.06
71Anthony Liftgates LogoAnthony A-130212 - Hydraulic Hose AssemblyA-130212-ANT$33.91
72Anthony Liftgates LogoAnthony A-130213 - High-Pressure HoseA-130213-ANT$80.58
73Anthony Liftgates LogoAnthony A-130210 - Hydraulic Hose AssemblyA-130210-ANT$42.34
75Anthony Liftgates LogoAnthony A-130211 - Hydraulic Hose AssemblyA-130211-ANT$34.91
76Anthony Liftgates LogoAnthony A-130335 - WEO FittingsA-130335-ANT$21.58
77Anthony Liftgates LogoAnthony A-130140 - Fitting 90 Degree Elbow MaleA-130140-ANT$15.74
79Anthony Liftgates LogoAnthony A-130198 - Fitting Straight Adapter MaleA-130198-ANT$11.58
80Anthony Liftgates LogoAnthony A-130101 - Control Flow Valve 2.25 GPMA-130101-ANT$81.61
250Anthony Liftgates LogoAnthony 25 - 3/8-16 x 1-1/2 Inch Bolt25-ANT$1.12
257Anthony Liftgates LogoAnthony 2054 - Lockwasher 5/16 Inches2054-ANT$1.16
260Anthony Liftgates LogoAnthony 2114 - Nut Hex 5/16-18 NC Whiz-Lock2114-ANT$0.73
261Anthony Liftgates LogoAnthony 2145 - Bolt 5/16-18 NC Whiz-Lock2145-ANT$1.23
271Anthony Liftgates LogoAnthony A-132026 - Cotter Pin 1/4 x 1-1/2 InchA-132026-ANT$1.39
279Anthony Liftgates LogoAnthony A-132115 - Hydraulic Hose Clamp 5/8 Inch Steel/Vinyl CoatedA-132115-ANT$6.86
300Anthony Liftgates LogoAnthony ATU-358 - Bolt 1/4-20 NC X 2 LongATU-358-ANT$1.34
301Anthony Liftgates LogoAnthony ATU-359 - 1/4-20 TOP L/N GR C ZPATU-359-ANT$1.28

PLEASE provide your Anthony Liftgate’s Serial Number and Model Number in the Order Comments at Checkout to ensure the correct parts are ordered. Anthony Liftgate parts ordered without providing a Serial Number or Model Number are subject to Restrictions if a Return is required. See TERMS OF SALE for more information.
