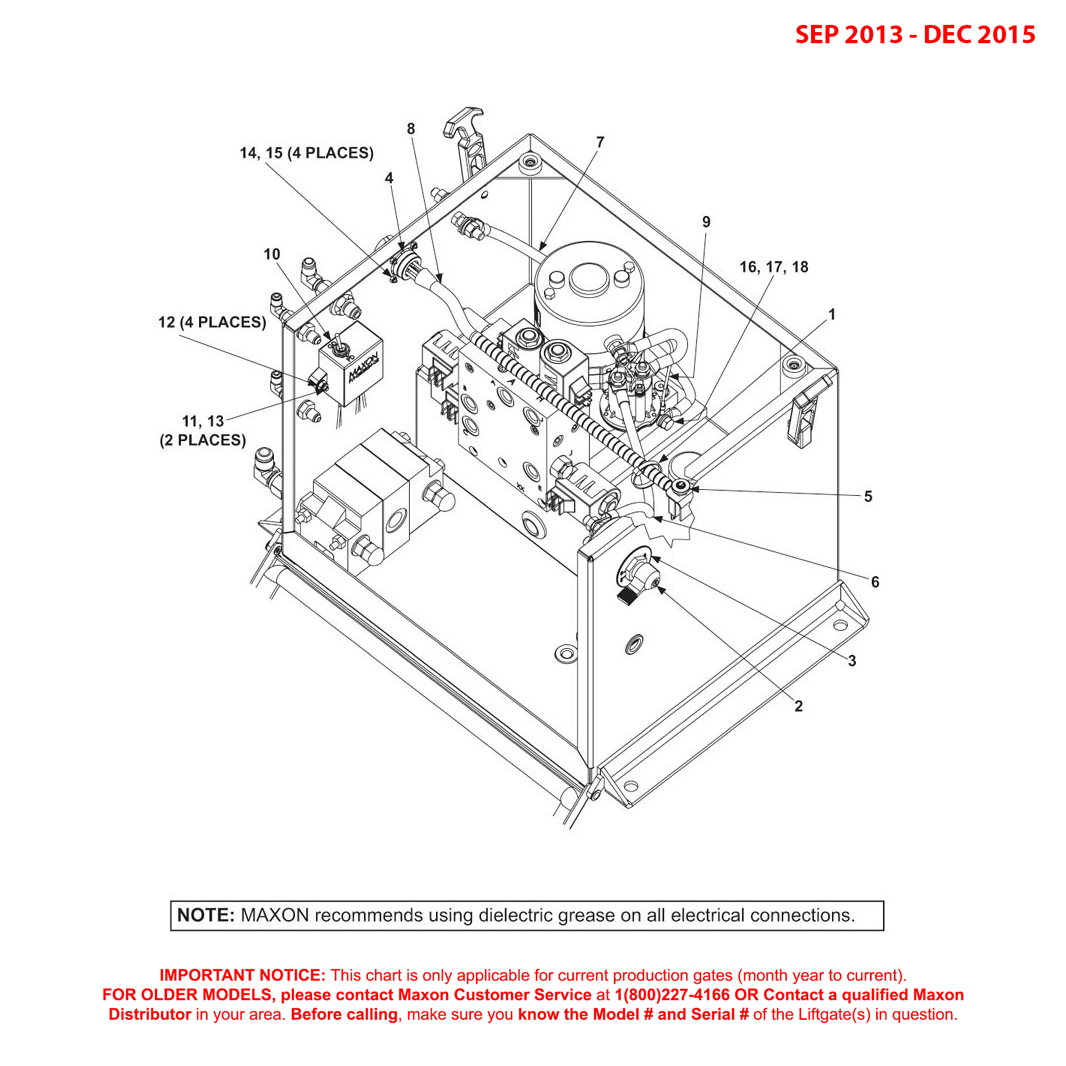

Maxon BMRSD (Sep 2013 - Dec 2015) Tandem Assembly With Lower Right/Left Hand Runners Diagram From ITEParts.com

ID	Title	SKU	Price
1	Maxon 205780 - Tie Plastic 7 Inch (50 LB)	205780-MAXO	$0.30
2	Maxon 228754 - Master SW O-Ring Sealed Shaft	228754-MAXO	$119.85
3	Maxon 228755 - Plate Switch Face MAS Disc	228755-MAXO	$21.56
4	Maxon 263802-02 - Gasket Connector 6 Pin	263802-02-MAXO	$2.42
5	Maxon 264179 - Circuit Breaker 10AMP EXT MT	264179-MAXO	$22.80
6	Maxon 285506-01 - Cable Assembly 2GA R .31/.38 Ring 10	285506-01-MAXO	$20.91
7	Maxon 268226-04 - Cable Assembly 2GA .31 / .38 RING 16 Inch	268226-04-MAXO	$49.71
8	Maxon 283311-01 - Harness Single Pump BMRSD	283311-01-MAXO	$256.61
9	Maxon 268342-01 - Wire Assembly 16GA 7 Inch LG	268342-01-MAXO	$7.13
10	Maxon 282824-02 - P/D ON Demand SW Assembly 5 Wire	282824-02-MAXO	$213.54
11	Maxon 900753-09 - Pan Screw - Phillips Head 10-24 X 1 Inch SS	900753-09-MAXO	$0.27
12	Maxon 903444-01 - Washer Flat #10 SS	903444-01-MAXO	$0.50
13	Maxon 901003 - Nut Nylon 10-24 2B ZC	901003-MAXO	$0.11
14	Maxon 900709-08 - Screw PH Pan HD 4-40 X .5 SS	900709-08-MAXO	$0.12
15	Maxon 901007 - Nut Nylon .112-40 Zinc	901007-MAXO	$0.11
16	Maxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZC	900009-1-MAXO	$0.30
17	Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC	902011-3-MAXO	$0.11
18	Maxon 902000-8 - Flat Washer - .312 .063 THK	902000-8-MAXO	$0.32

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
