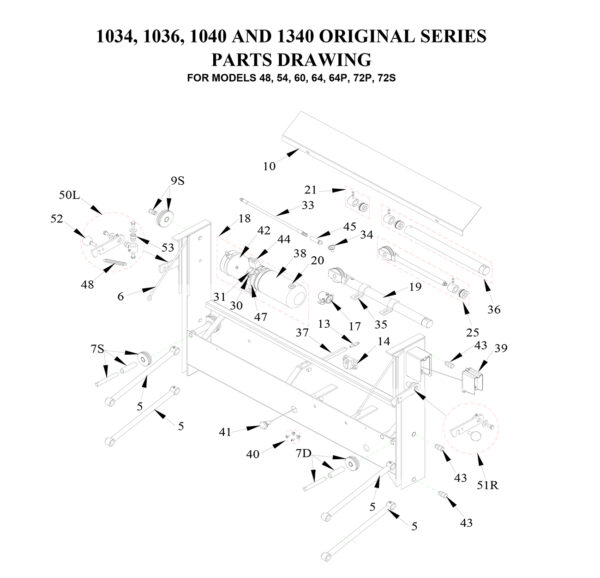

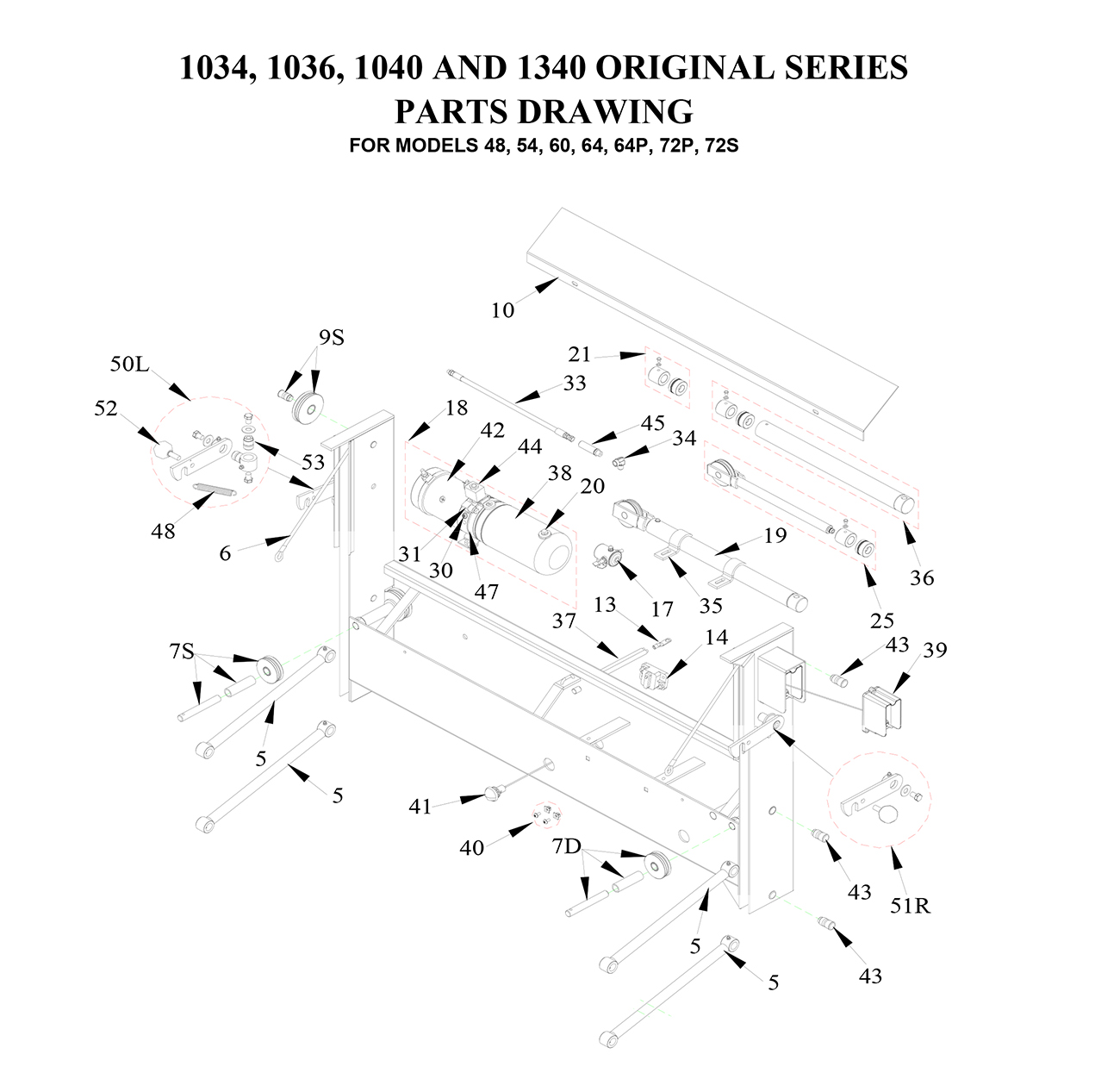

Tommy Gate Original Series Diagram (1 OF 2) [Pickup / Service Body / Cargo Van]
Tommy Gate Original Series Diagram (1 Of 2) [pickup / Service Body / Cargo Van]

Tommy Gate Original Series Diagram (1 OF 2) [Pickup / Service Body / Cargo Van]

SKU: TG-ORIGS-PUSBCV-DG1 Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
0Tommy Gate 1070 - Driver's Side Latch Kit (swing away)Tommy Gate 1070 - Driver's Side Latch Kit (swing away)1070-TOMM$51.03
0Tommy Gate 1071 - Passenger's Side Latch Kit (fixed)Tommy Gate 1071 - Passenger's Side Latch Kit (fixed)1071-TOMM$30.24
0Tommy Gate 1107 - Driver's Side Latch Kit EA (swing away)Tommy Gate 1107 - Driver's Side Latch Kit EA (swing away)1107-TOMM$54.03
0Tommy Gate 4175 - 3 Inch Double (7/32 Inch) Groove Replacement Pulley Kit with 3/4 Inch Cross Box Pin (60-1040 before serial # 459225M)Tommy Gate 4175 - 3 Inch Double (7/32 Inch) Groove Replacement Pulley Kit with 3/4 Inch Cross Box Pin (60-1040 before serial # 459225M)4175-TOMM$48.20
0Tommy Gate 4176 - 3 Inch Single (7/32 Inch) Groove Replacement Pulley Kit with 3/4 Inch Cross Box Pin(60-1040 before serial # 459225M)Tommy Gate 4176 - 3 Inch Single (7/32 Inch) Groove Replacement Pulley Kit with 3/4 Inch Cross Box Pin(60-1040 before serial # 459225M)4176-TOMM$48.20
0Tommy Gate 4177 - 3 Inch Single (7/32 Inch) Groove Replacement Pulley Kit with 3/4 Inch Upright PinTommy Gate 4177 - 3 Inch Single (7/32 Inch) Groove Replacement Pulley Kit with 3/4 Inch Upright Pin4177-TOMM$38.60
0Tommy Gate 4179 - 3.5 Inch Double (7/32 Inch ) Groove Replacement Pulley Kit with 7/8 Inch Cross Box Pin (60-1040 after serial # 462473M)Tommy Gate 4179 - 3.5 Inch Double (7/32 Inch ) Groove Replacement Pulley Kit with 7/8 Inch Cross Box Pin (60-1040 after serial # 462473M)4179-TOMM$48.20
0Tommy Gate 4180 - 3.5 Inch Single (7/32 Inch ) Groove Replacement Pulley Kit with 7/8 Inch Cross Box Pin (60-1040 after serial # 462473M)Tommy Gate 4180 - 3.5 Inch Single (7/32 Inch ) Groove Replacement Pulley Kit with 7/8 Inch Cross Box Pin (60-1040 after serial # 462473M)4180-TOMM$48.20
5Tommy Gate 1125 - 1040-1340 Replacement Lift Arm with Pins and ZerksTommy Gate 1125 - 1040-1340 Replacement Lift Arm with Pins and Zerks1125-TOMM$83.79
5Tommy Gate 7010 - 1034-1036 Replacement Lift Arm with Pins and ZerksTommy Gate 7010 - 1034-1036 Replacement Lift Arm with Pins and Zerks7010-TOMM$83.79
6Tommy Gate 10450 - Set 7/32 Inch Replacement Lift Cable Kit (Mini Only)Tommy Gate 10450 - Set 7/32 Inch Replacement Lift Cable Kit (Mini Only)10450-TOMM$141.75
6Tommy Gate 2939 - Universal Set 7/32 Inch Replacement Lift Cable Kit (Not for Mini)Tommy Gate 2939 - Universal Set 7/32 Inch Replacement Lift Cable Kit (Not for Mini)2939-TOMM$173.25
6Tommy Gate 3123 - Set 7/32 Inch Replacement Lift Cable Kit (Model 60 Only)Tommy Gate 3123 - Set 7/32 Inch Replacement Lift Cable Kit (Model 60 Only)3123-TOMM$141.75
10Tommy Gate 4961 - Replacement Box Cover (Mini and 48)Tommy Gate 4961 - Replacement Box Cover (Mini and 48)4961-TOMM$43.16
10Tommy Gate 4962 - Replacement Box Cover (Dakota - Isuzu and 54)Tommy Gate 4962 - Replacement Box Cover (Dakota - Isuzu and 54)4962-TOMM$48.36
10Tommy Gate 4963 - Replacement Box Cover (Toyota T-100 and 60)Tommy Gate 4963 - Replacement Box Cover (Toyota T-100 and 60)4963-TOMM$53.87
10Tommy Gate 4964 - Replacement Box Cover (64)Tommy Gate 4964 - Replacement Box Cover (64)4964-TOMM$57.81
10Tommy Gate 4965 - Replacement Box Cover (72)Tommy Gate 4965 - Replacement Box Cover (72)4965-TOMM$63.63
13Tommy Gate 992 - Replacement Copper LugTommy Gate 992 - Replacement Copper Lug992-TOMM$6.30
14Tommy Gate 998 - Replacement 150 Amp Manual Reset Circuit BreakerTommy Gate 998 - Replacement 150 Amp Manual Reset Circuit Breaker998-TOMM$89.63
17Tommy Gate 967 - Replacement Raise Solenoid-3 PostTommy Gate 967 - Replacement Raise Solenoid-3 Post967-TOMM$85.68
18Tommy Gate 4360 - M319 Replacement Pump and Motor (2100psi) 1.5qt.** Mini 500Tommy Gate 4360 - M319 Replacement Pump and Motor (2100psi) 1.5qt.** Mini 5004360-TOMM$767.03
18Tommy Gate 4362 - M319 Replacement Pump and MotorTommy Gate 4362 - M319 Replacement Pump and Motor4362-TOMM$767.03
18Tommy Gate 4363 - M319 Replacement Pump and Motor (3400psi) 1.5qt.** 1340Tommy Gate 4363 - M319 Replacement Pump and Motor (3400psi) 1.5qt.** 13404363-TOMM$767.03
18Tommy Gate 7031 - M319 Replacement Pump and Motor (2800psi) 1.5qt.** (54-1040 and 60-1040 after serial # 462473M)*Tommy Gate 7031 - M319 Replacement Pump and Motor (2800psi) 1.5qt.** (54-1040 and 60-1040 after serial # 462473M)*7031-TOMM$767.03
19Tommy Gate 9756 - 1034 and 1036 Replacement CylinderTommy Gate 9756 - 1034 and 1036 Replacement Cylinder9756-TOMM$393.75
19Tommy Gate 9761 - 1040 Replacement Cylinder (54-1040 and 60-1040 before serial # 459225M)*Tommy Gate 9761 - 1040 Replacement Cylinder (54-1040 and 60-1040 before serial # 459225M)*9761-TOMM$417.38
19Tommy Gate 9762 - 1340 Replacement Cylinder (54-1040 and 60-1040 after serial # 462473M)*Tommy Gate 9762 - 1340 Replacement Cylinder (54-1040 and 60-1040 after serial # 462473M)*9762-TOMM$450.45
20Tommy Gate 989 - Replacement Vent PlugTommy Gate 989 - Replacement Vent Plug989-TOMM$6.30
21Tommy Gate 1139 - 1-1/2 Inch Cylinder Repair Kit (54-1040 and 60-1040 before serial # 459225M* - all 1034 - all 1036) Includes: Piston - Guide Bushing and O-ringsTommy Gate 1139 - 1-1/2 Inch Cylinder Repair Kit (54-1040 and 60-1040 before serial # 459225M* - all 1034 - all 1036) Includes: Piston - Guide Bushing and O-rings1139-TOMM$51.03
21Tommy Gate 1140 - 1-3/4 Inch Cylinder Repair KitTommy Gate 1140 - 1-3/4 Inch Cylinder Repair Kit1140-TOMM$58.76
25Tommy Gate 3222 - Cylinder Shaft with Pulley Assembly (1040) Includes: Cylinder Repair Kit (54-1040 and 60-1040 before serial # 459225M)*Tommy Gate 3222 - Cylinder Shaft with Pulley Assembly (1040) Includes: Cylinder Repair Kit (54-1040 and 60-1040 before serial # 459225M)*3222-TOMM$203.18
25Tommy Gate 3224 - Cylinder Shaft with Pulley Assembly (1034 and 1036) Includes: Cylinder Repair KitTommy Gate 3224 - Cylinder Shaft with Pulley Assembly (1034 and 1036) Includes: Cylinder Repair Kit3224-TOMM$203.18
25Tommy Gate 3227 - Cylinder Shaft with Pulley Assembly (1340) Includes: Cylinder Repair Kit (54-1040 and 60-1040 after serial # 462473M)*Tommy Gate 3227 - Cylinder Shaft with Pulley Assembly (1340) Includes: Cylinder Repair Kit (54-1040 and 60-1040 after serial # 462473M)*3227-TOMM$240.98
30Tommy Gate 973 - Replacement Check ValveTommy Gate 973 - Replacement Check Valve973-TOMM$44.27
31Tommy Gate 12611 - Replacement 90 Degree Elbow 9/16 x 7/16Tommy Gate 12611 - Replacement 90 Degree Elbow 9/16 x 7/1612611-TOMM$15.60
31Tommy Gate 944 - Replacement 90 Degree Elbow (Male 9/16 O-ring Boss x Female 1/4 NPTF)Tommy Gate 944 - Replacement 90 Degree Elbow (Male 9/16 O-ring Boss x Female 1/4 NPTF)944-TOMM$23.00
31Tommy Gate 945 - Replacement 90 Degree Elbow (Male 3/8 NTPF x Female 1/4 NPTF)Tommy Gate 945 - Replacement 90 Degree Elbow (Male 3/8 NTPF x Female 1/4 NPTF)945-TOMM$9.45
33Tommy Gate 12679 - Replacement 1/4 Inch x 29 Inch Hydraulic Hose with Adapters (Mini and 48)Tommy Gate 12679 - Replacement 1/4 Inch x 29 Inch Hydraulic Hose with Adapters (Mini and 48)12679-TOMM$66.32
33Tommy Gate 12680 - Replacement 1/4 Inch x 37 Inch Hydraulic Hose with Adapters (54 and 60-1340)Tommy Gate 12680 - Replacement 1/4 Inch x 37 Inch Hydraulic Hose with Adapters (54 and 60-1340)12680-TOMM$66.32
33Tommy Gate 12681 - Replacement 1/4 Inch x 40 Inch Hydraulic Hose with Adapters (T-100 and 60)Tommy Gate 12681 - Replacement 1/4 Inch x 40 Inch Hydraulic Hose with Adapters (T-100 and 60)12681-TOMM$66.32
33Tommy Gate 12686 - Replacement 1/4 Inch x 44 Inch Hydraulic Hose with Adapters (64-1046)Tommy Gate 12686 - Replacement 1/4 Inch x 44 Inch Hydraulic Hose with Adapters (64-1046)12686-TOMM$69.30
33Tommy Gate 12683 - Replacement 1/4 Inch x 48 Inch Hydraulic Hose with Adapters (72-1046 and 650)Tommy Gate 12683 - Replacement 1/4 Inch x 48 Inch Hydraulic Hose with Adapters (72-1046 and 650)12683-TOMM$69.30
34Tommy Gate 13073 - Replacement 04MORB x 04FORB x 90 Degree Cyl. ElbowTommy Gate 13073 - Replacement 04MORB x 04FORB x 90 Degree Cyl. Elbow13073-TOMM$15.60
34Tommy Gate 916 - Replacement 1/4 Inch x7/16 Inch x90 Degree Steel Cylinder ElbowTommy Gate 916 - Replacement 1/4 Inch x7/16 Inch x90 Degree Steel Cylinder Elbow916-TOMM$15.60
34Tommy Gate 978 - Replacement 1/4 Inch x1/4 Inch x90 Degree Steel Cylinder ElbowTommy Gate 978 - Replacement 1/4 Inch x1/4 Inch x90 Degree Steel Cylinder Elbow978-TOMM$9.45
35Tommy Gate 3251 - Replacement Cylinder Barrel Assembly (1040) Includes: Cylinder Repair Kit (54-1040 and 60- 1040 before serial # 459225M)*Tommy Gate 3251 - Replacement Cylinder Barrel Assembly (1040) Includes: Cylinder Repair Kit (54-1040 and 60- 1040 before serial # 459225M)*3251-TOMM$225.23
35Tommy Gate 6832 - 1-1/2 Inch Replacement Cylinder Clamp (1034-1040) (54-1040 and 60-1040 before serial # 459225M)*Tommy Gate 6832 - 1-1/2 Inch Replacement Cylinder Clamp (1034-1040) (54-1040 and 60-1040 before serial # 459225M)*6832-TOMM$12.29
35Tommy Gate 6833 - 1-3/4 Inch and 2 Inch Replacement Cylinder Clamp (1340-1650)Tommy Gate 6833 - 1-3/4 Inch and 2 Inch Replacement Cylinder Clamp (1340-1650)6833-TOMM$12.29
36Tommy Gate 3250 - Replacement Cylinder Barrel Assembly (1034-1036) Includes: Cylinder Repair KitTommy Gate 3250 - Replacement Cylinder Barrel Assembly (1034-1036) Includes: Cylinder Repair Kit3250-TOMM$214.20
36Tommy Gate 3252 - Replacement Cylinder Barrel Assembly (1340) Includes: Cylinder Repair Kit (1340-1650) (54- 1040 and 60-1040 after serial # 462473M)*Tommy Gate 3252 - Replacement Cylinder Barrel Assembly (1340) Includes: Cylinder Repair Kit (1340-1650) (54- 1040 and 60-1040 after serial # 462473M)*3252-TOMM$288.23
37Tommy Gate 4570 - Replacement 4Ga. 2 Wire Electric Cable with Lugs-26 ft.Tommy Gate 4570 - Replacement 4Ga. 2 Wire Electric Cable with Lugs-26 ft.4570-TOMM$150.89
38Tommy Gate 957 - Replacement Monarch Plastic Tank (1.5qt.)Tommy Gate 957 - Replacement Monarch Plastic Tank (1.5qt.)957-TOMM$93.90
39Tommy Gate 987 - Replacement Fixed ControlTommy Gate 987 - Replacement Fixed Control987-TOMM$192.15
40Tommy Gate 1111 - License Plate Mount KitTommy Gate 1111 - License Plate Mount Kit1111-TOMM$6.30
41Tommy Gate 949 - Replacement License Plate Light (before serial # M16-23388R and M20-5787)Tommy Gate 949 - Replacement License Plate Light (before serial # M16-23388R and M20-5787)949-TOMM$9.45
42Tommy Gate 958 - Replacement 12V Motor (MOTOR ONLY)Tommy Gate 958 - Replacement 12V Motor (MOTOR ONLY)958-TOMM$441.00
44Tommy Gate 9645 - Release Solenoid External Assembly with ConnectorTommy Gate 9645 - Release Solenoid External Assembly with Connector9645-TOMM$146.01
45Tommy Gate 12749 - Replacement Flow Control (7/16 x 7/16 x 0.078)Tommy Gate 12749 - Replacement Flow Control (7/16 x 7/16 x 0.078)12749-TOMM$75.60
48Tommy Gate 954 - Replacement Latch SpringTommy Gate 954 - Replacement Latch Spring954-TOMM$6.30
52Tommy Gate 955 - Replacement Latch Knob with StudTommy Gate 955 - Replacement Latch Knob with Stud955-TOMM$9.45
53Tommy Gate 7516 - Replacement Threaded Latch BushingTommy Gate 7516 - Replacement Threaded Latch Bushing7516-TOMM$9.45
55Tommy Gate 956 - Replacement (64) Grip Tape Kit For PlatformTommy Gate 956 - Replacement (64) Grip Tape Kit For Platform956-TOMM$91.35

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.

Tried and true reliability. Original Series models have been used by a wide variety of commercial industries over the past forty years. Constructed with the same high-quality pumps and motors found in all other Tommy Gate lifts, Original Series liftgates use military aircraft-grade cable for added strength.

For use with Pickups, Service Bodies and Cargo Vans.
