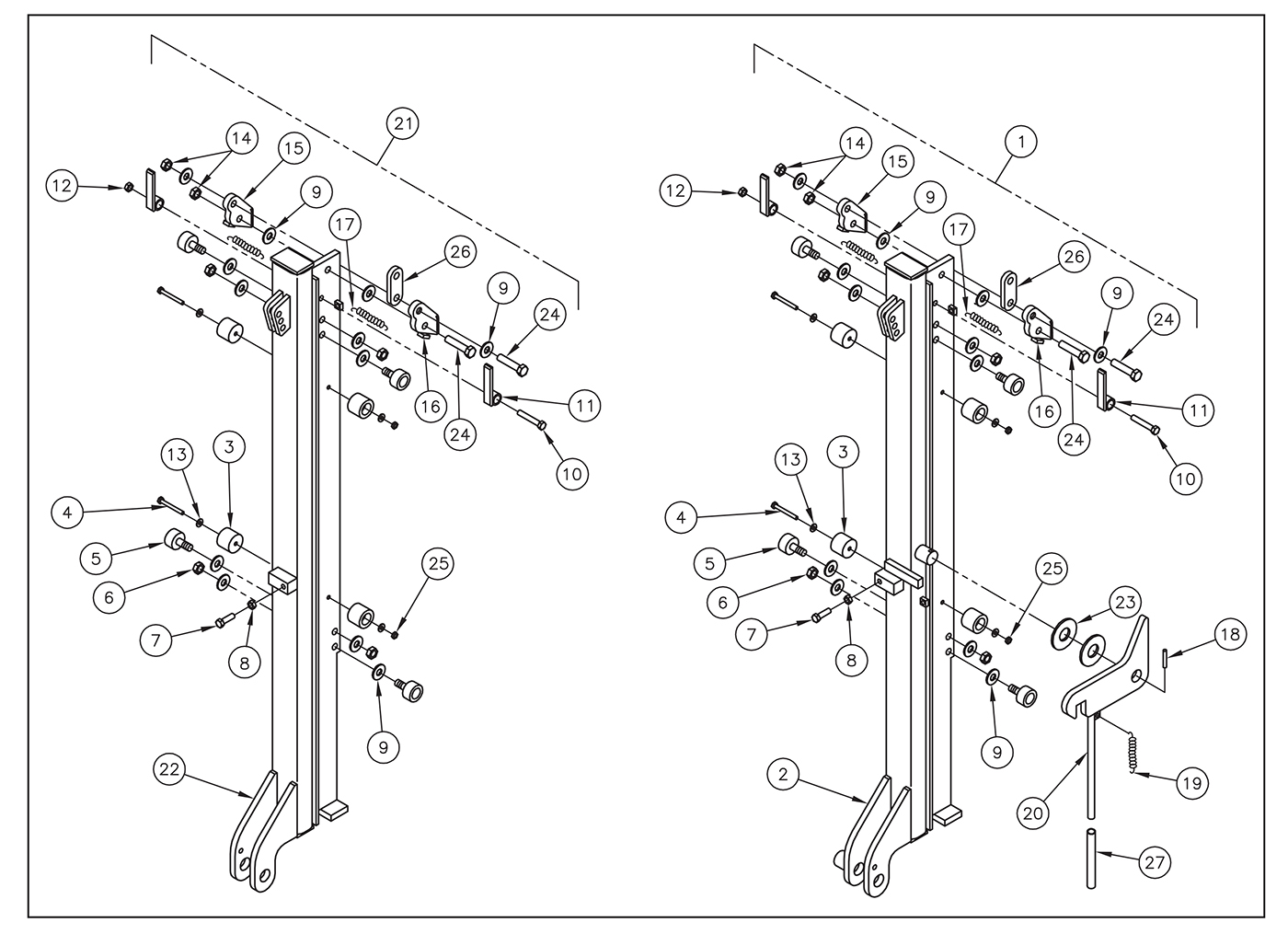

VL 30/40/50 Slider Assembly Diagram
Vl 30/40/50 Slider Assembly Diagram

VL 30/40/50 Slider Assembly Diagram

SKU: VL304050-SA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1SLIDER ASM. RH - 36 42 60 and 72SLIDER ASM. RH - 36 42 60 and 7231076-001-THIE$971.22
1Thieman 31076-003 - VLBG Right Hand Slider AssemblyThieman 31076-003 - VLBG Right Hand Slider Assembly31076-003-THIE$971.22
2SLIDER WELD RH - 36 42 60 and 72SLIDER WELD RH - 36 42 60 and 7231074-001-THIE$461.15
2Thieman 31074-003 - VLBG Right Hand Slider WeldThieman 31074-003 - VLBG Right Hand Slider Weld31074-003-THIE$461.15
3Thieman 5717 - Slider Wear PadThieman 5717 - Slider Wear Pad5717-THIE$14.06
4Thieman 8109-011 - Hex Head Screw (0.25-20 x 2.25 Inches)Thieman 8109-011 - Hex Head Screw (0.25-20 x 2.25 Inches)8109-011-THIE$0.92
5Thieman Tailgates 5506 - Platform Roller AssemblyThieman Tailgates 5506 - Platform Roller Assembly5506-THIE$50.17
6Thieman 8103-011 - Lock Nut (0.50-20)Thieman 8103-011 - Lock Nut (0.50-20)8103-011-THIE$0.76
8Thieman 8103-007 - Jam Nut (0.375-16)Thieman 8103-007 - Jam Nut (0.375-16)8103-007-THIE$0.76
9Thieman 8120396 - Flat Washer (0.50)Thieman 8120396 - Flat Washer (0.50)8120396-THIE$0.44
10Thieman 8108-006 - Screw (0.38-16 x 2.25 Inches)Thieman 8108-006 - Screw (0.38-16 x 2.25 Inches)8108-006-THIE$1.50
11Thieman 31085 - Brake PadThieman 31085 - Brake Pad31085-THIE$10.94
12Thieman 9413534 - Lock Nut (0.38-16)Thieman 9413534 - Lock Nut (0.38-16)9413534-THIE$0.76
13Thieman 8120386 - Flat Washer (0.25) PTO Models ONLYThieman 8120386 - Flat Washer (0.25) PTO Models ONLY8120386-THIE$0.44
14Thieman 9414074 - Lock Nut (0.50-13)Thieman 9414074 - Lock Nut (0.50-13)9414074-THIE$0.44
15Thieman 31073-002 - Right Hand Brake WeldThieman 31073-002 - Right Hand Brake Weld31073-002-THIE$137.54
16Thieman 31073-001 - Left Hand Brake WeldThieman 31073-001 - Left Hand Brake Weld31073-001-THIE$137.54
17Thieman 5101090 - SpringThieman 5101090 - Spring5101090-THIE$5.04
18Thieman 5702371 - Spring Pin (0.25 x 1.50 Inches)Thieman 5702371 - Spring Pin (0.25 x 1.50 Inches)5702371-THIE$0.44
19Thieman 5101100 - SpringThieman 5101100 - Spring5101100-THIE$2.88
20Thieman 3146 - Standard/Bottle Gas LatchThieman 3146 - Standard/Bottle Gas Latch3146-THIE$56.34
20Thieman 3147 - Large 2-Piece LatchThieman 3147 - Large 2-Piece Latch3147-THIE$56.34
21Thieman 31077-001 - Standard Left Hand Slider AssemblyThieman 31077-001 - Standard Left Hand Slider Assembly31077-001-THIE$971.22
21Thieman 31077-003 - VLBG Left Hand Slider AssemblyThieman 31077-003 - VLBG Left Hand Slider Assembly31077-003-THIE$971.22
22Thieman 31075-001 - Standard Left Hand Slider WeldThieman 31075-001 - Standard Left Hand Slider Weld31075-001-THIE$461.15
22Thieman 31075-003 - VLBG Left Hand Slider WeldThieman 31075-003 - VLBG Left Hand Slider Weld31075-003-THIE$461.15
23Thieman 8107-010 - 1 Inch Flat Washer (2 Inch OD)Thieman 8107-010 - 1 Inch Flat Washer (2 Inch OD)8107-010-THIE$1.50
24Thieman 8100-009 - Hex Head Screw (0.50-13 x 2.25 Inches)Thieman 8100-009 - Hex Head Screw (0.50-13 x 2.25 Inches)8100-009-THIE$2.98
25Thieman 8103-019 - Nylon Lock Nut (0.25-20) PTO Models ONLYThieman 8103-019 - Nylon Lock Nut (0.25-20) PTO Models ONLY8103-019-THIE$0.44
26Thieman 2357-002 - Cable Connector LinkThieman 2357-002 - Cable Connector Link2357-002-THIE$18.97
27Thieman 5701041 - Handle GripThieman 5701041 - Handle Grip5701041-THIE$1.50

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
